Coal Mine Sump Cleaning Machine
The Coal Mine Sump Cleaning Machine is specially designed for cleaning underground coal mine sumps and removing accumulated coal sludge from mine water collection areas. It can also be used for cleaning sludge from surface sedimentation tanks and other industrial settling facilities.
-
Coal Mine Sump Cleaning Machine
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Coal Mine Sump Cleaning Machine Introduction
The Coal Mine Sump Cleaning Machine is specially designed for cleaning underground coal mine sumps and removing accumulated coal sludge from mine water collection areas. It can also be used for cleaning sludge from surface sedimentation tanks and other industrial settling facilities.
This multifunctional machine integrates excavation, loading, traveling, and pumping functions into a single unit. It is designed to collect and transport coal sludge, mud, and other pumpable slurry materials, helping improve cleaning efficiency and reduce manual handling.
With its compact structure and flexible mobility, the machine is suitable for underground mining environments where working space is limited and maneuverability is essential. It provides a practical solution for coal mine sump maintenance, sludge removal, and sediment handling operations.
Product Parameters
Coal Mine Sump Cleaning Machine Parameters

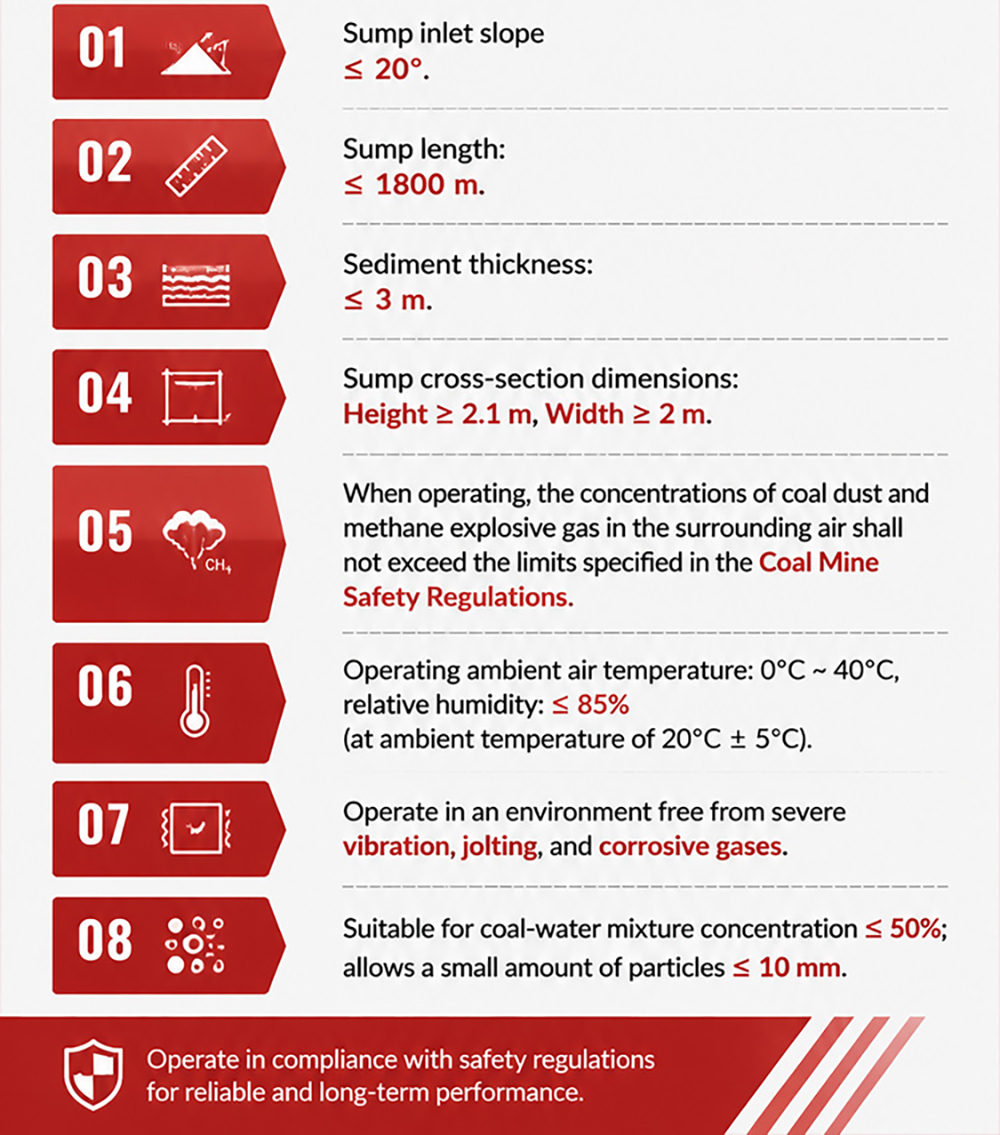

The coal mine sump cleaning machine is designed to operate under the following working conditions:
Sump Entrance Inclination: The slope at the sump entrance shall not exceed 20°.
Sump Length: The sump length shall not exceed 1,800 m.
Sediment Thickness: The accumulated sediment thickness shall not exceed 3 m.
Sump Cross-Section Dimensions: The sump shall have a minimum height of 2.1 m and a minimum width of 2 m.
Gas and Dust Safety Requirements: During operation, the concentration of coal dust and methane in the surrounding air must remain within the limits specified by the applicable Coal Mine Safety Regulations.
Ambient Temperature and Humidity: The machine is suitable for ambient temperatures ranging from 0°C to 40°C and a relative humidity not exceeding 85% (at an ambient temperature of 20°C ± 5°C).
Working Environment: The machine should operate in environments free from severe vibration, jolting, and corrosive gases.
Coal-Water Mixture Requirements: The coal-water mixture concentration shall not exceed 50%. A small quantity of solid particles with a maximum particle size of 10 mm is permitted in the mixture.
Product Photos

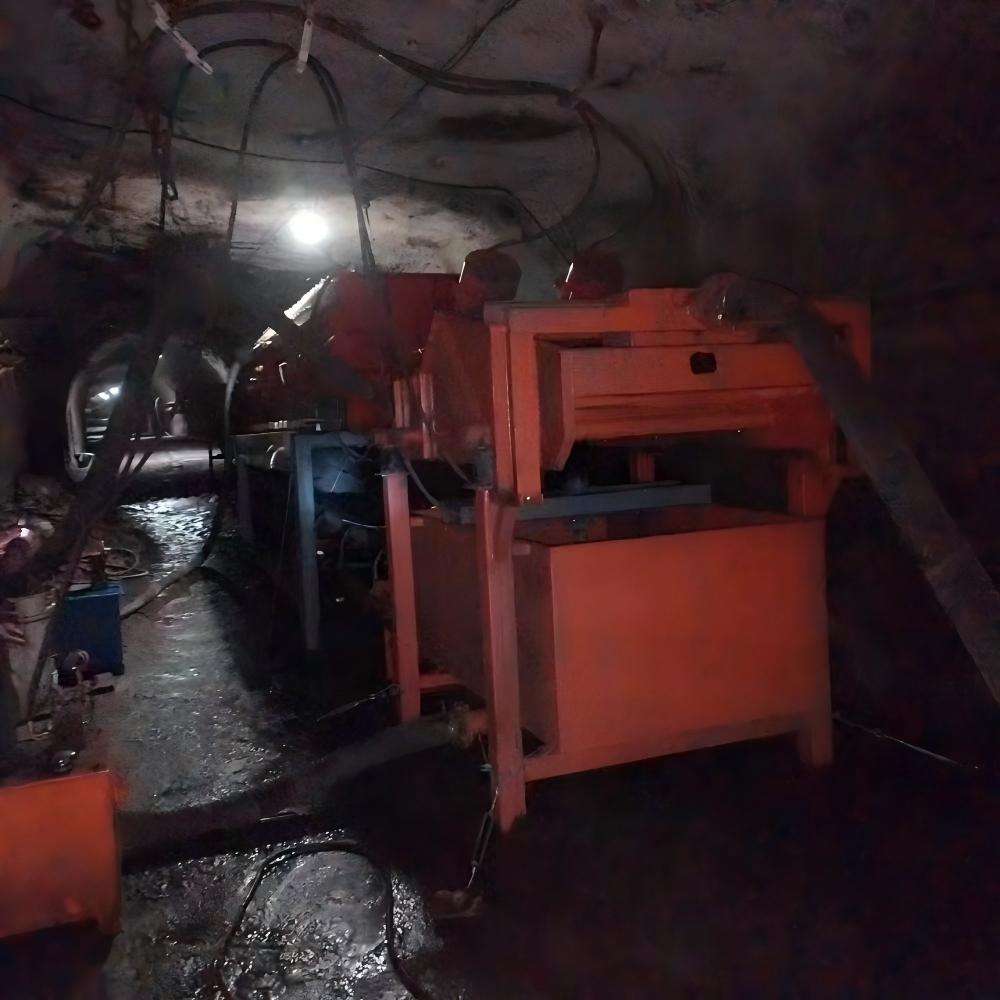

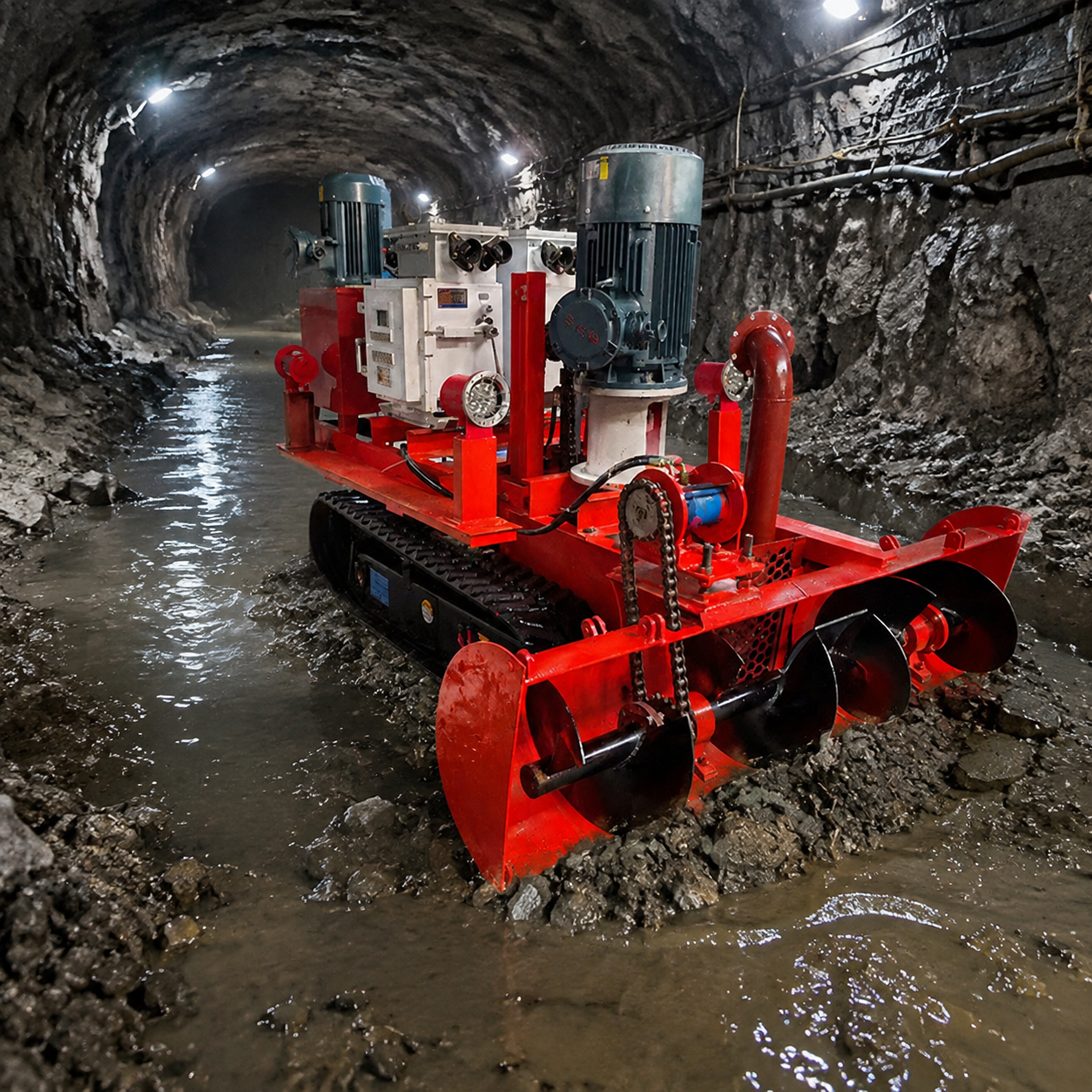

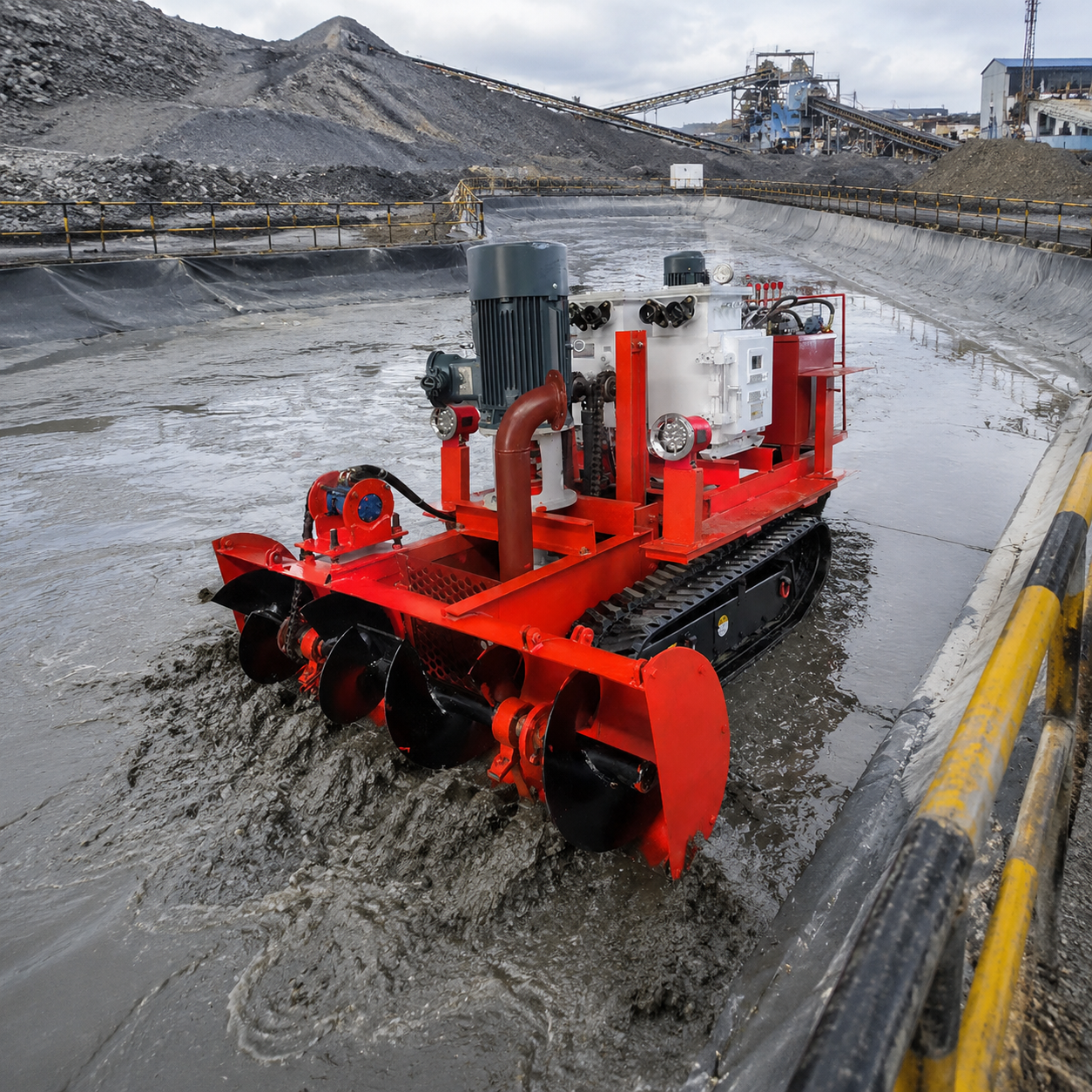

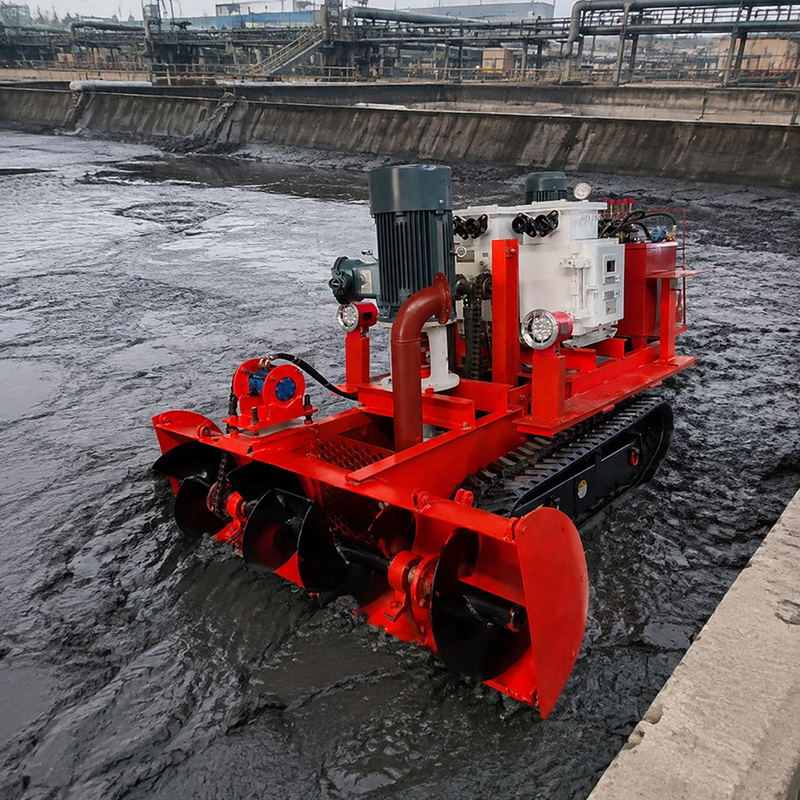

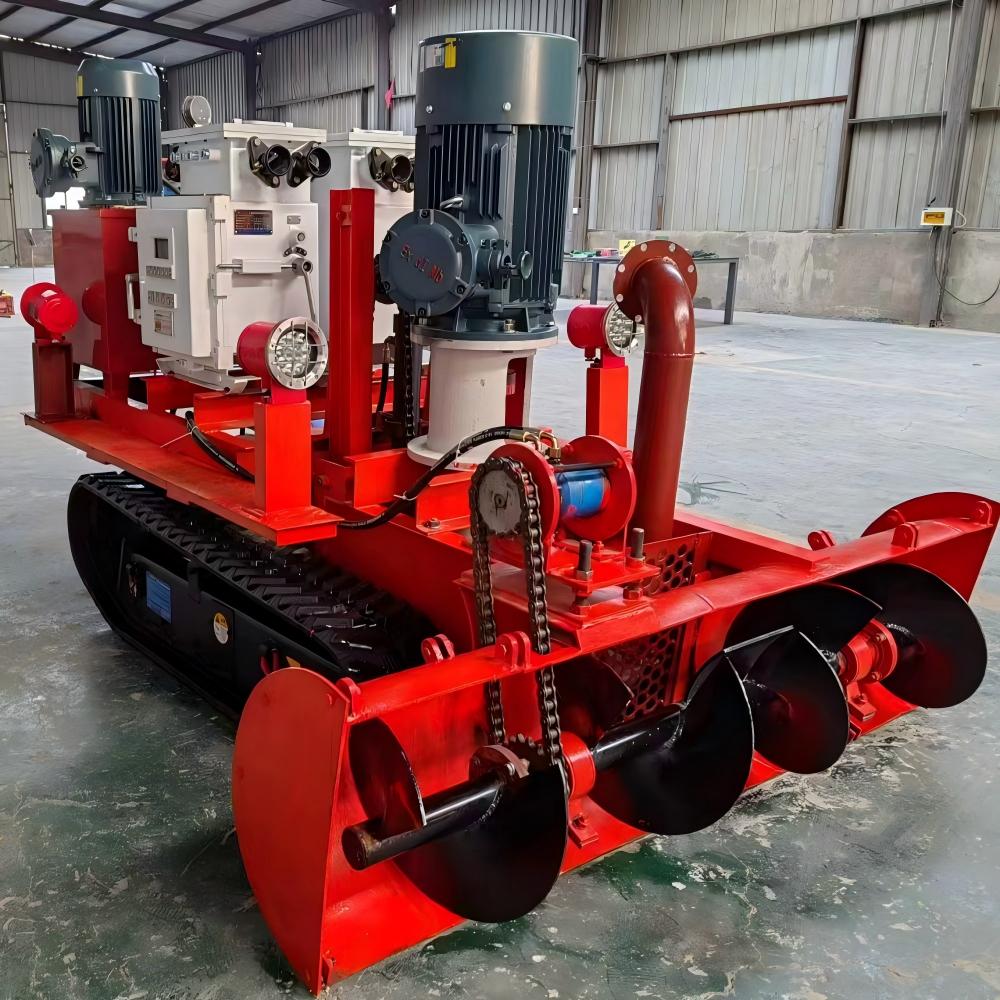

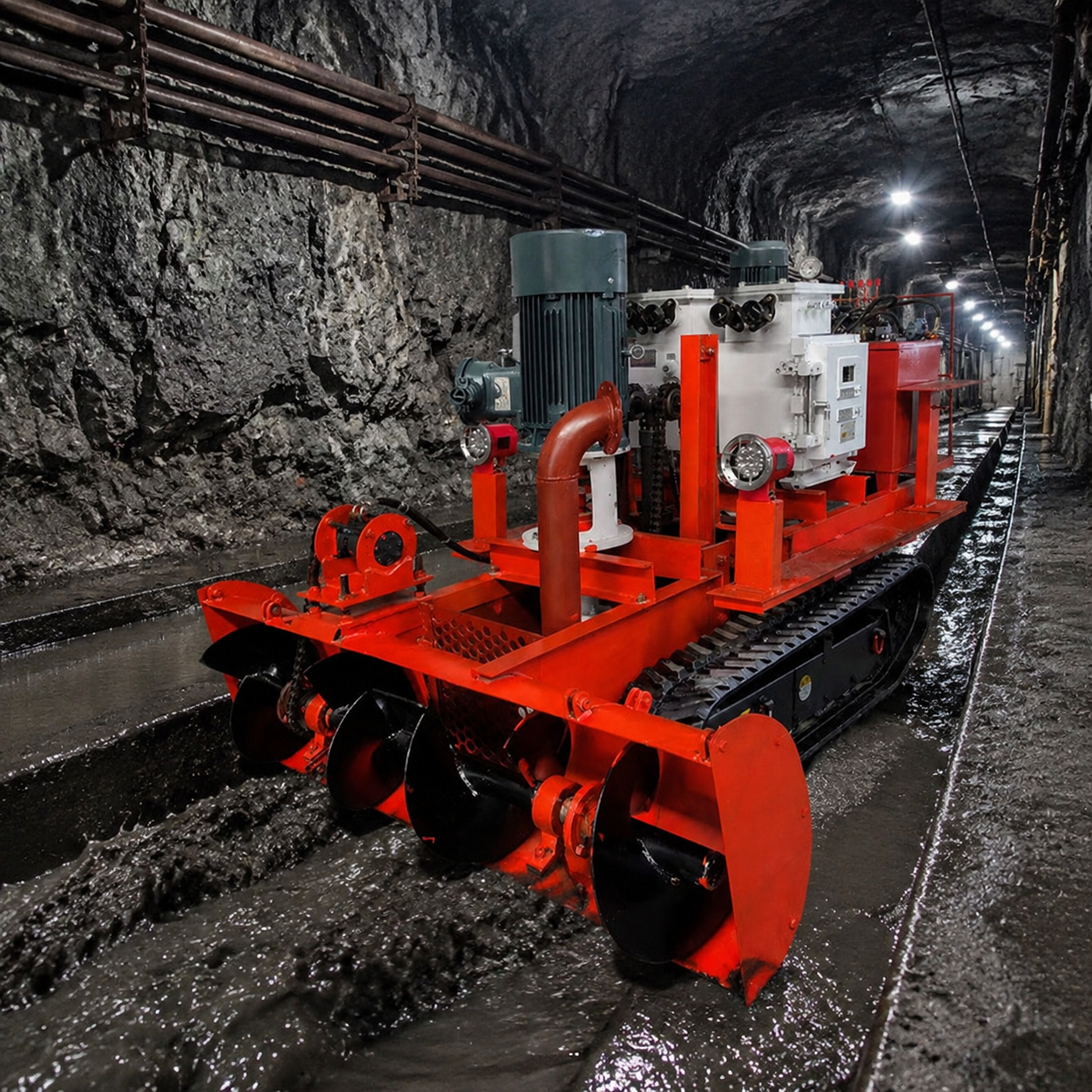

Coal Mine Sump Cleaning Machine Photos
