FU Industrial Chain Conveyor
China Coal Group
| Quantity: | |
|---|---|
Product Description
FU Industrial Chain Conveyor Introduction
The FU chain conveyor is a new mechanical product used for horizontal (or inclined ≤15°) conveying of powdered and granular materials. Its performance surpasses that of screw conveyors, buried scraper conveyors, and other conveying equipment. It is widely used in industries such as inspection, construction, chemical engineering, mining machinery, metallurgy, and grain processing, making it an ideal new type of conveying equipment.
Product Features：
1. Rational structure, novel design, advanced technology, and complete series.
2. Fully enclosed housing with excellent sealing performance and reliable operation.
3. Cost-saving, energy-efficient, durable, low maintenance, and reduced consumption.
4. FU scraper conveyors have a large conveying capacity, with a conveying capacity of 6 to 600 m³/h.
5. Flexible input and output: suitable for installation in elevated, ground-level, underground, horizontal, and inclined (≤15°) configurations. The conveying length can be customized according to customer requirements.
6. Long service life: The conveyor chain is made of alloy steel processed using advanced heat treatment techniques, with a normal service life of over 5 years. The rollers on the chain have a service life of at least 2–3 years.
Product Parameters
FU Industrial Chain Conveyor Parameters
model | Trough Width (mm) | Ideal width (mm) | 10% Max.particle size (mm) | Max. conveying slope | Chain line speed (m/min) | Material humidity | ||||
11 | 14 | 17 | 22 | 27 | ||||||
Maximum conveying capacity (m3/n) | ||||||||||
FU150 | 150 | <4 | <8 | <15º | 10 | 16 | 20 | |||
FU200 | 200 | <5 | <10 | 18 | 28 | 38 | ||||
FU270 | 270 | <7 | <15 | 33 | 41 | 50 | 68 | 82 | ||
FU350 | 350 | <9 | <18 | 80 | 100 | 128 | <5% | |||
FU410 | 410 | <11 | <21 | 110 | 138 | 175 | ||||
FU500 | 500 | <13 | <25 | 170 | 270 | 270 | ||||
FU600 | 600 | <15 | <30 | 224 | 340 | 340 | ||||
FU700 | 700 | <18 | <32 | 305 | 460 | 460 | ||||
Product Photos

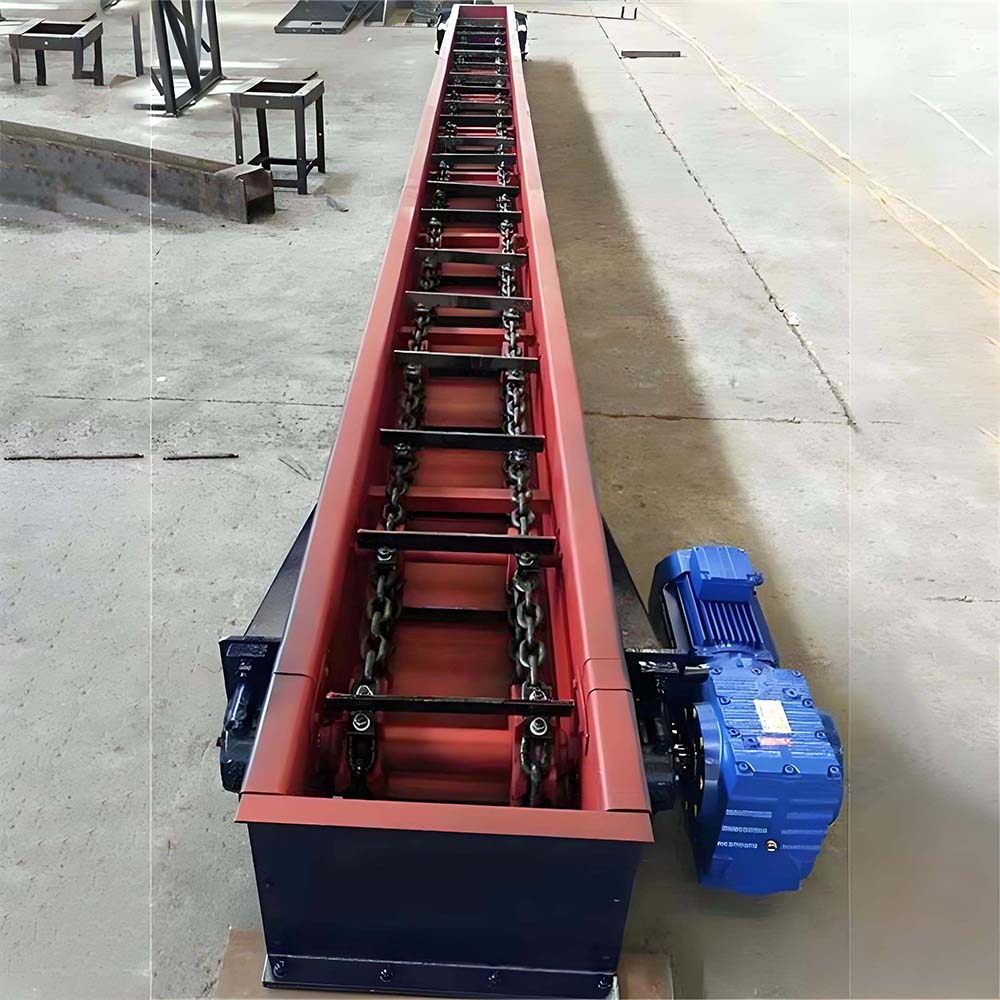

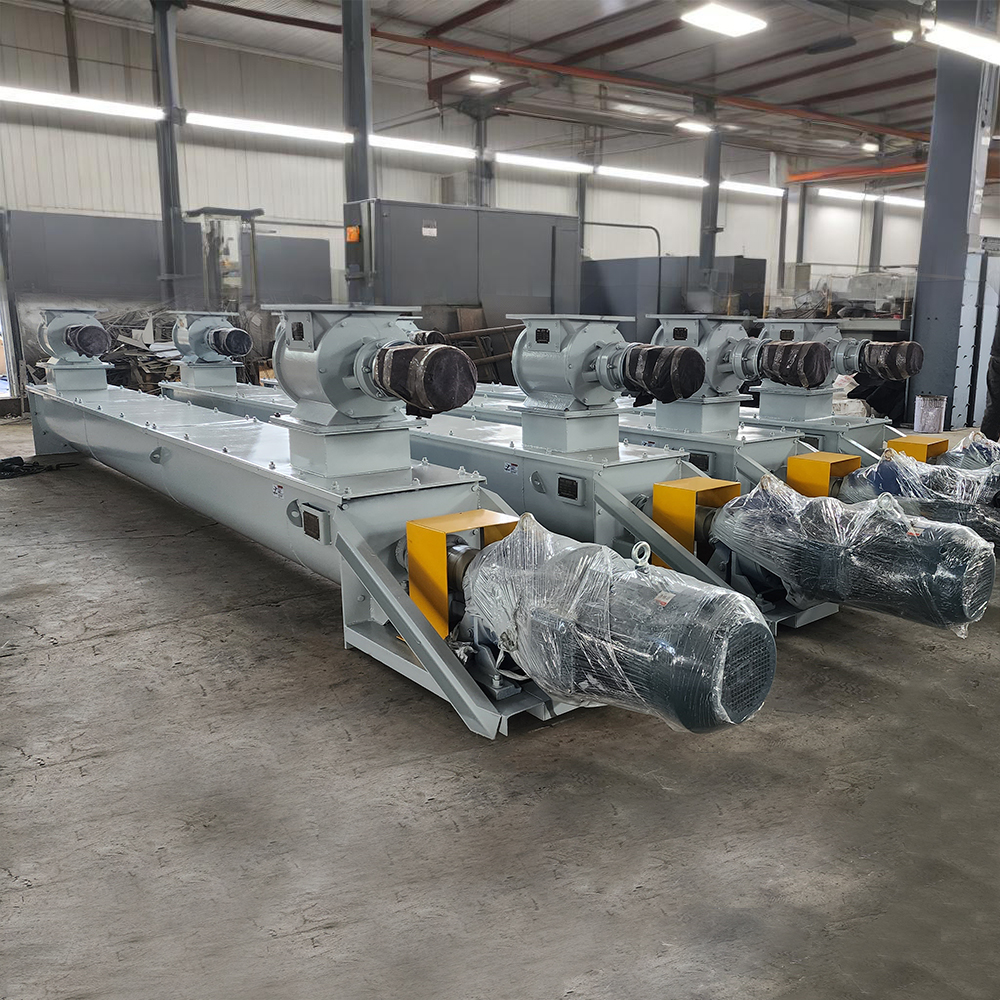

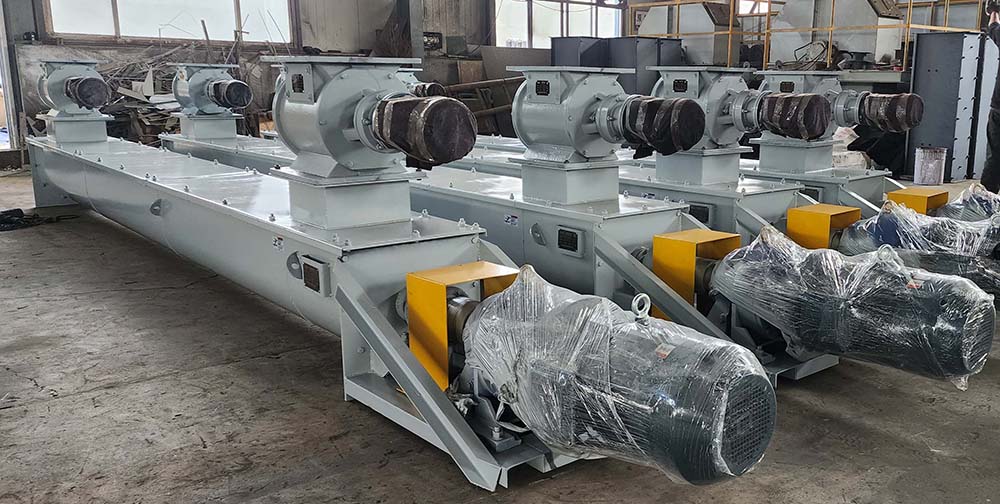

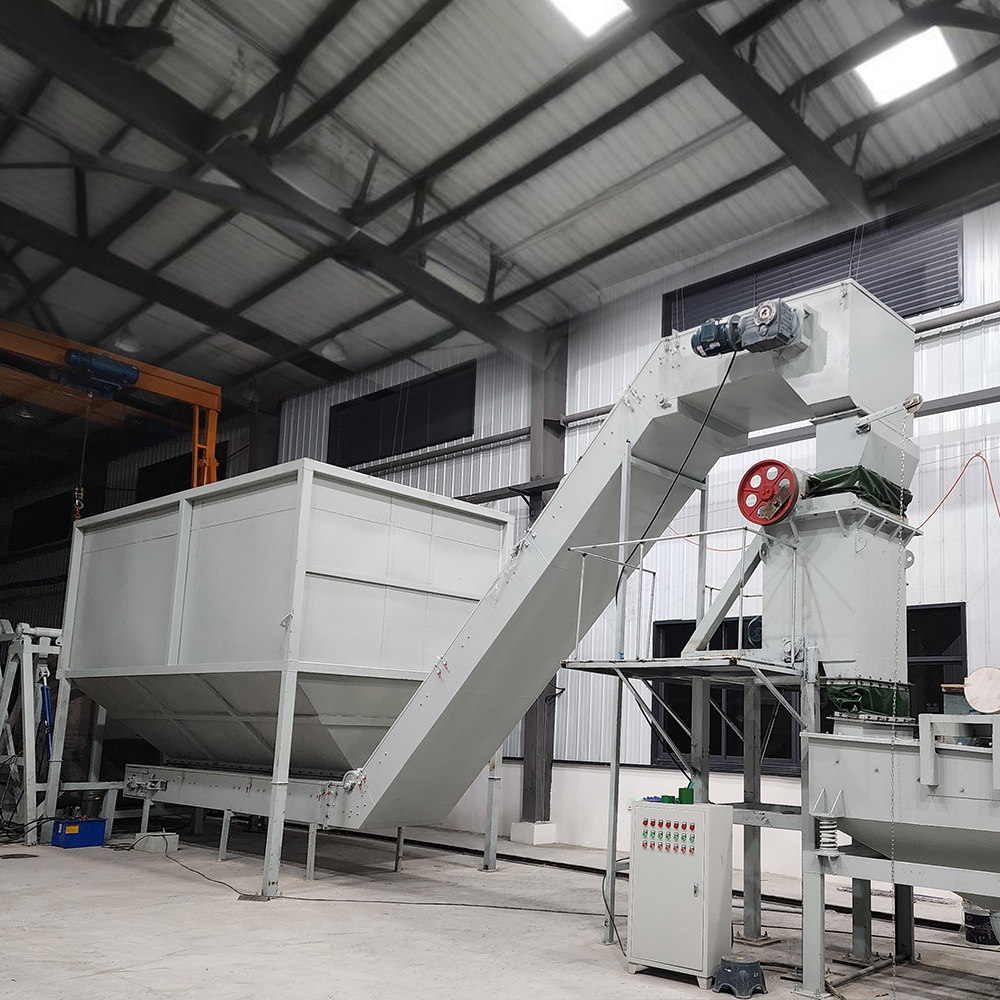

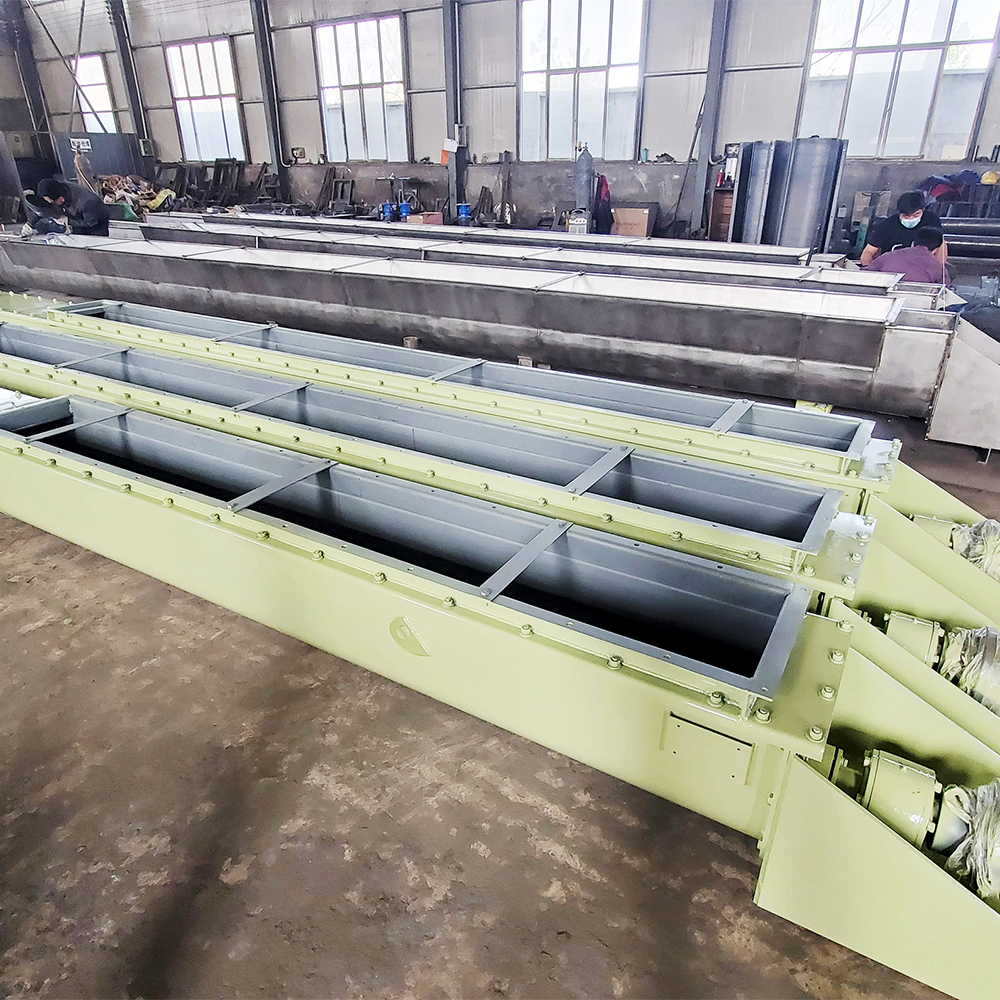

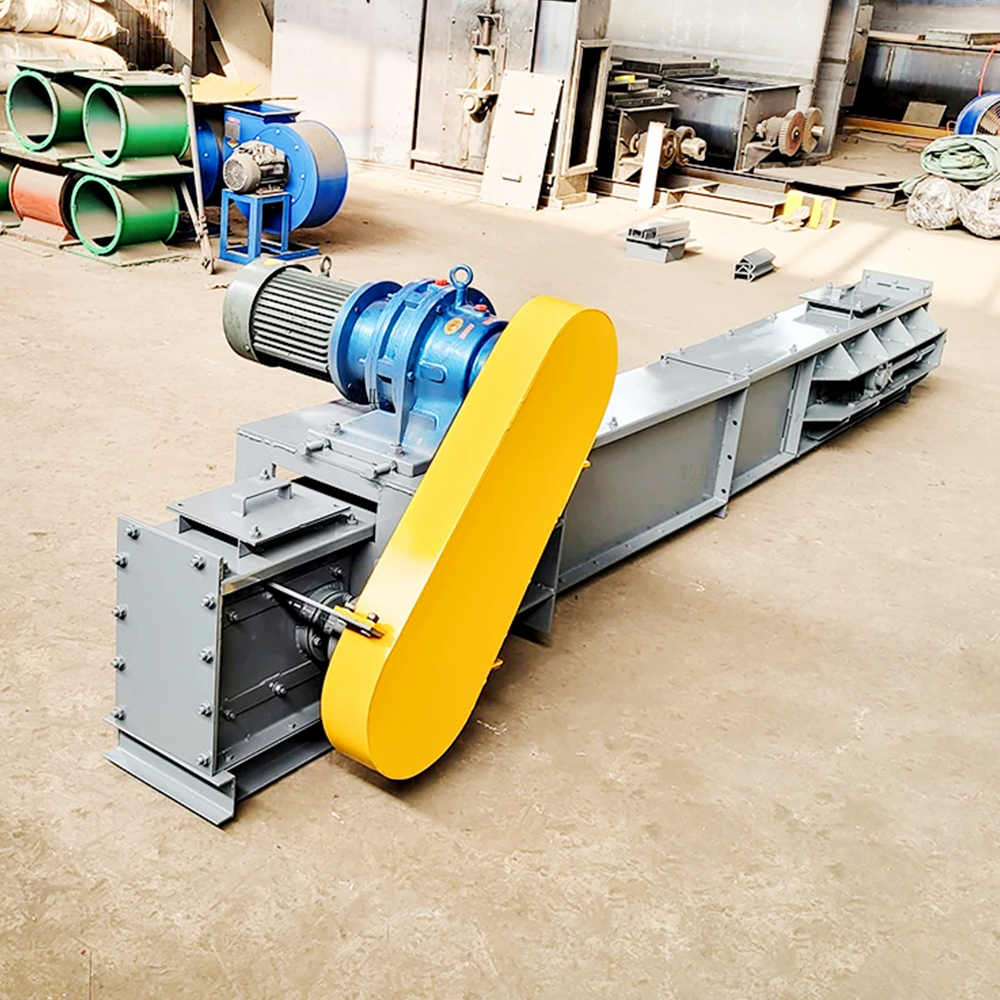

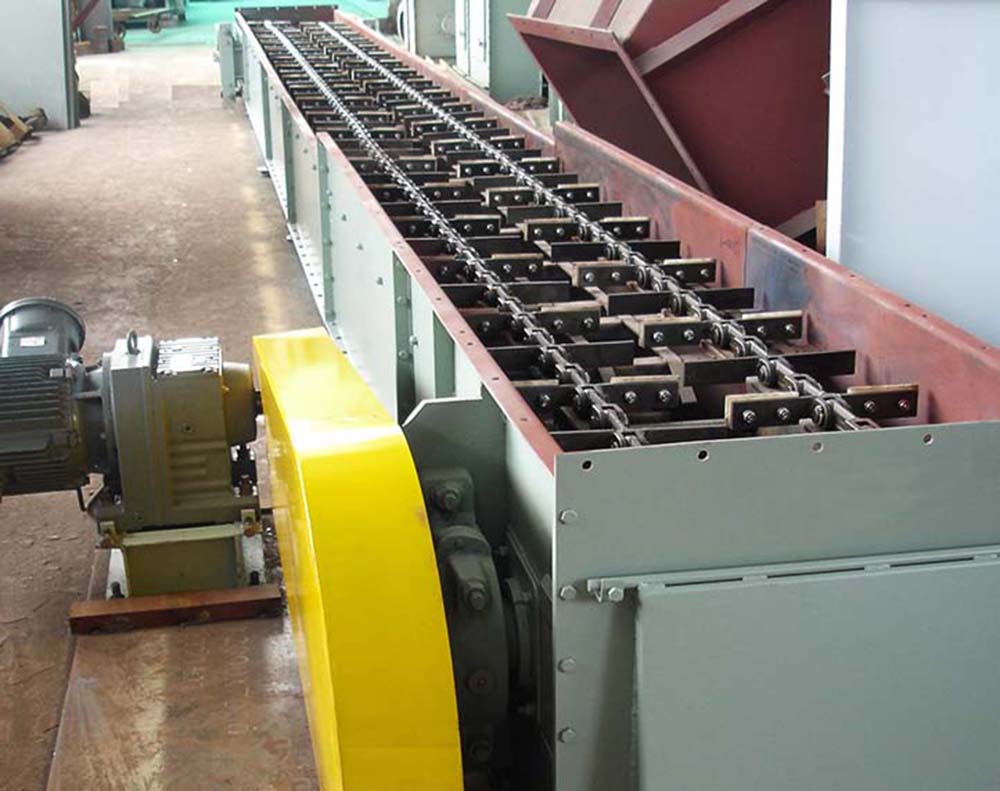

FU Industrial Chain Conveyor Photos
