Product Description
Mining Emulsion Pumping Station Introduction
An emulsion pumping station is composed of BRW type emulsion pump and the XRXT series emulsion tank . Which mainly provides power source for underground coal mining hydraulic support, and can also be used for ground and other hydraulic equipment.
The pumping station consists of two pumps and one box. One use, one standby. If the job requires , can also be used simultaneously with two pumps.
Product Parameters
Mining Emulsion Pumping Station Parameters
Model | BRW80/20 | BRW80/35 | BRW125/20C | BRW125/31.5C | BRW160/20A | BRW160/25A | BRW160/31.5A | |
Input pressure | Normal pressure | |||||||
Nominal pressure Mpa | 20 | 31.5 | 20 | 31.5 | 20 | 25 | 31.5 | |
Nominal flow L/min | 80 | 80 | 125 | 125 | 160 | 160 | 160 | |
Crankshaft speed r/min | 517 | 517 | 561 | 561 | 561 | 561 | 561 | |
Number of plungers | / | 3 | 3 | 3 | 3 | 3 | ||
Plunger diameter mm | 32 | 32 | 40 | 40 | 45 | 45 | 45 | |
Plunger stroke mm | 70 | 70 | 66 | 66 | 66 | 66 | 66 | |
Motor Power KW | 37 | 55 | 55 | 75 | 75 | 75 | 110 | |
Motor Rotating speed r/min | 1470 | 1470 | 1480 | 1480 | 1480 | 1480 | 1480 | |
Motor Voltage V | 440/660 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | 660/1140 | ||
Dimension | Pump L×B×H mm | 760×680×432 | 832×770×454 | 832×770×454 | 832×770×454 | 832×770×454 | 832×770×454 | |
Assembly L×B×H mm | 1873×760×880 | 2166×838×980 | 2166×838×980 | 2166×838×980 | 2180×838×980 | 2180×838×1050 | ||
Weight | Pump kg | 460 | 580 | 580 | 580 | 580 | 580 | |
Assembly kg | 923 | 1023 | 1560 | 1600 | 1600 | 1600 | 1720 | |
Emulsified tank volume L | 630 | 1000 | 1600(1000) | 2000(1000) | 2000(1000) | 2000(1000) | ||
Working medium | Emulsion (neutral water mixture containing 3%-5% emulsified oil) | Emulsion of emulsified oil and neutral soft water in a weight ratio of 5:95 | ||||||
Safety valve beginning adjustment pressure Mpa | / | 22 | 34.7 | 22 | 27.5 | 34.7 | ||
Unloading valve beginning adjustment pressure Mpa | 20 | 35 | 20 | 31.5 | 20 | 25 | 31.5 | |
Unloading valve to restore pressure | / | Pump rated pressure 75-85% | ||||||
Matching liquid tank | XR40/6.3 | X10RX | ||||||
Product Photos

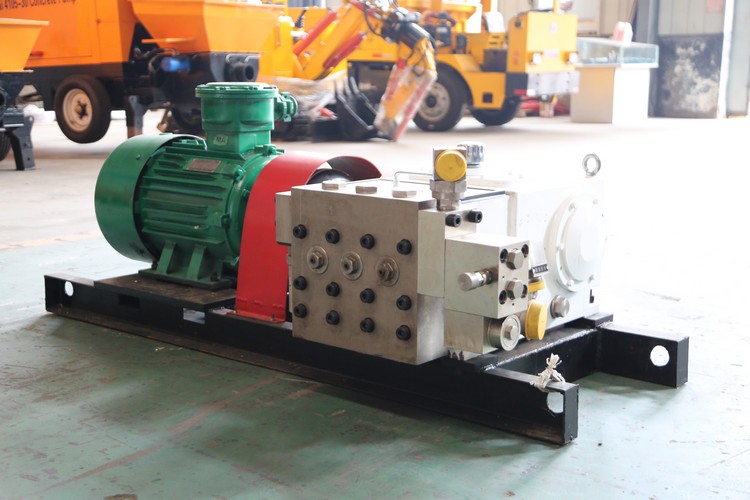

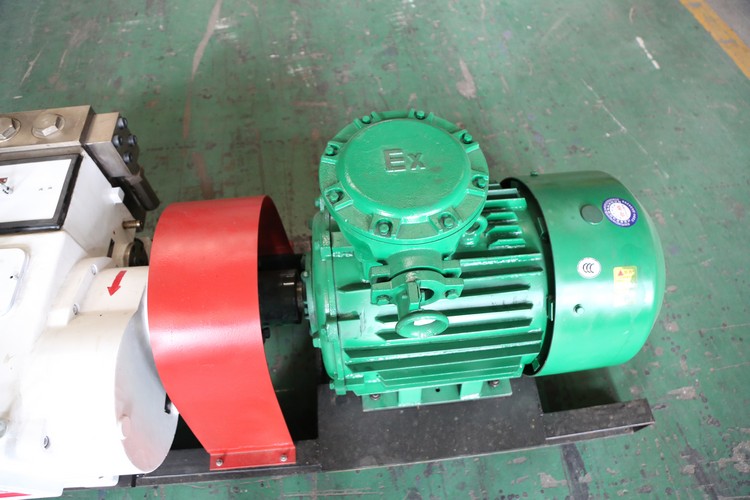

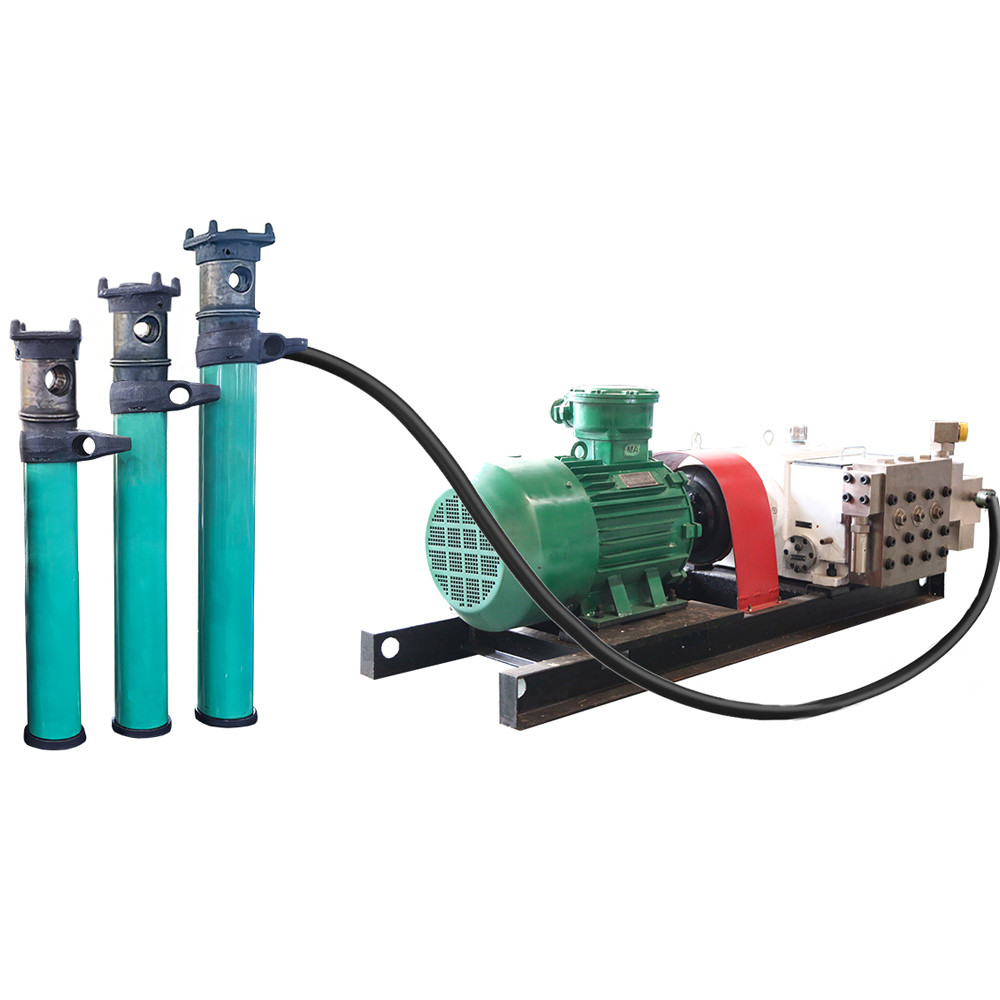

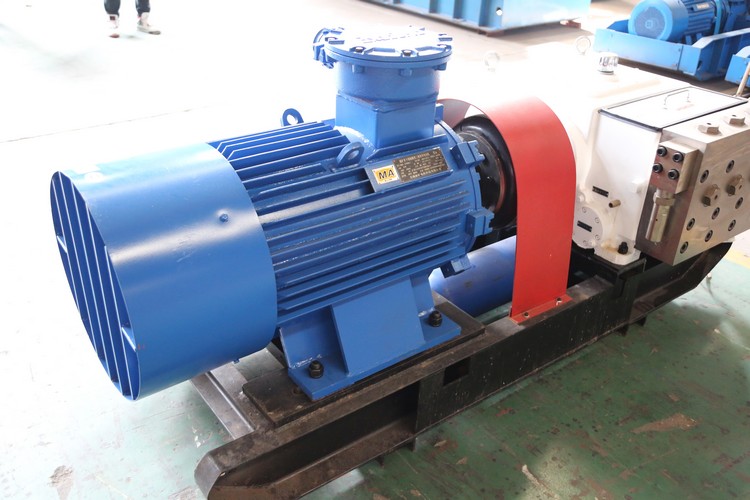

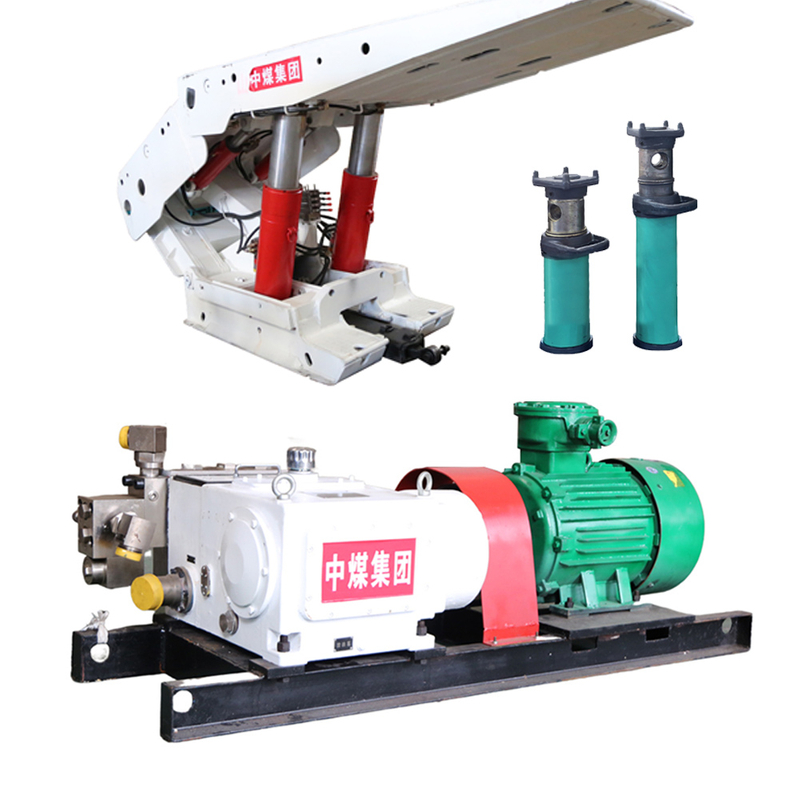

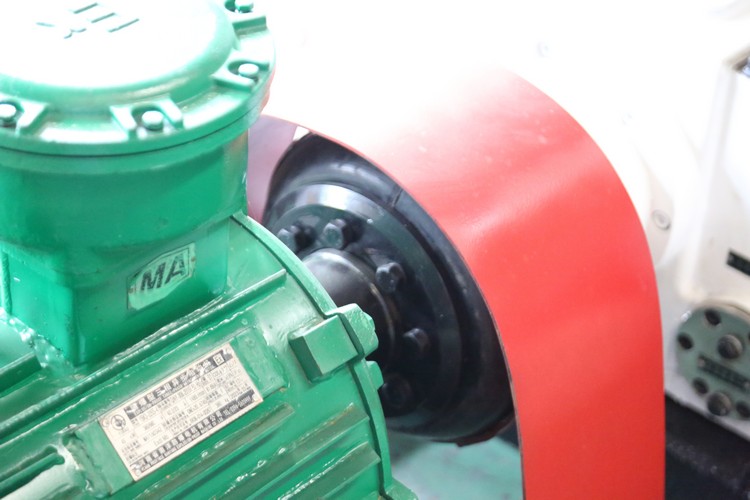

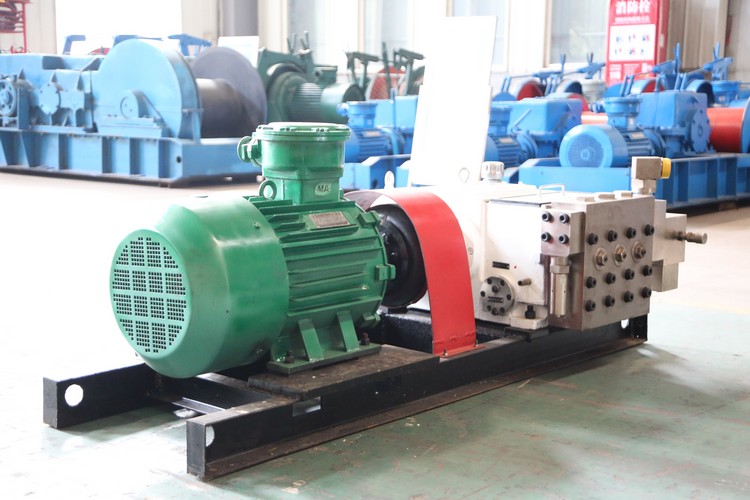

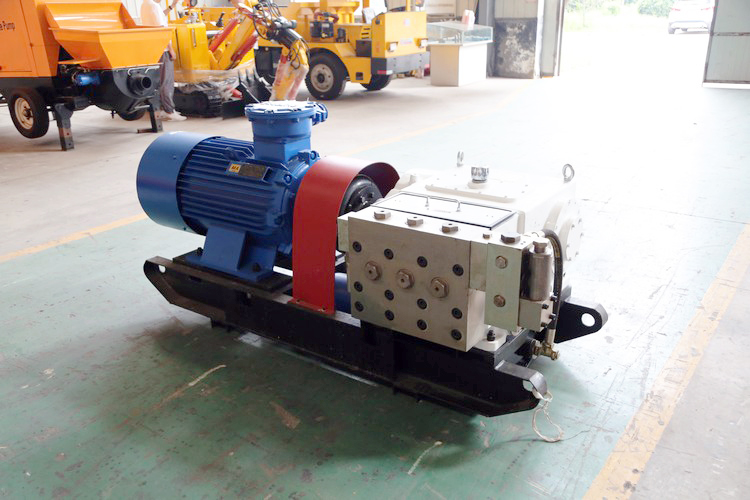

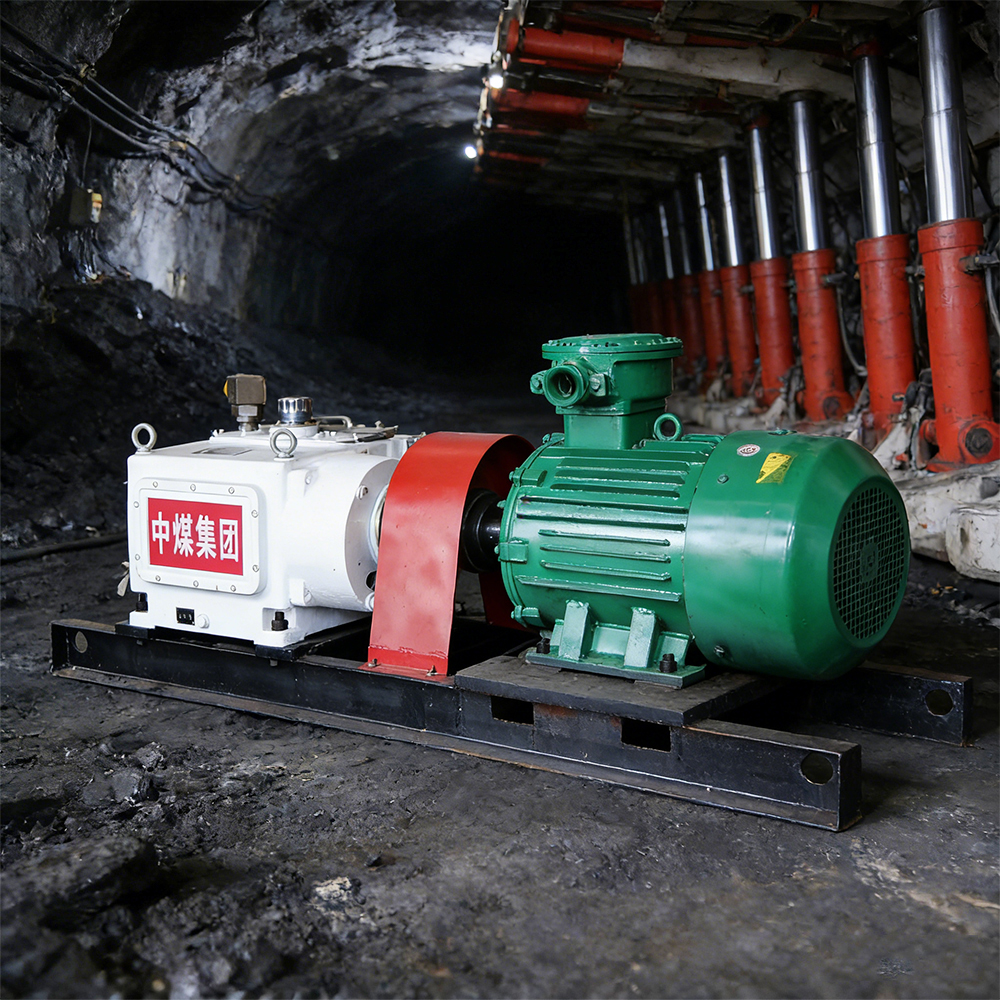

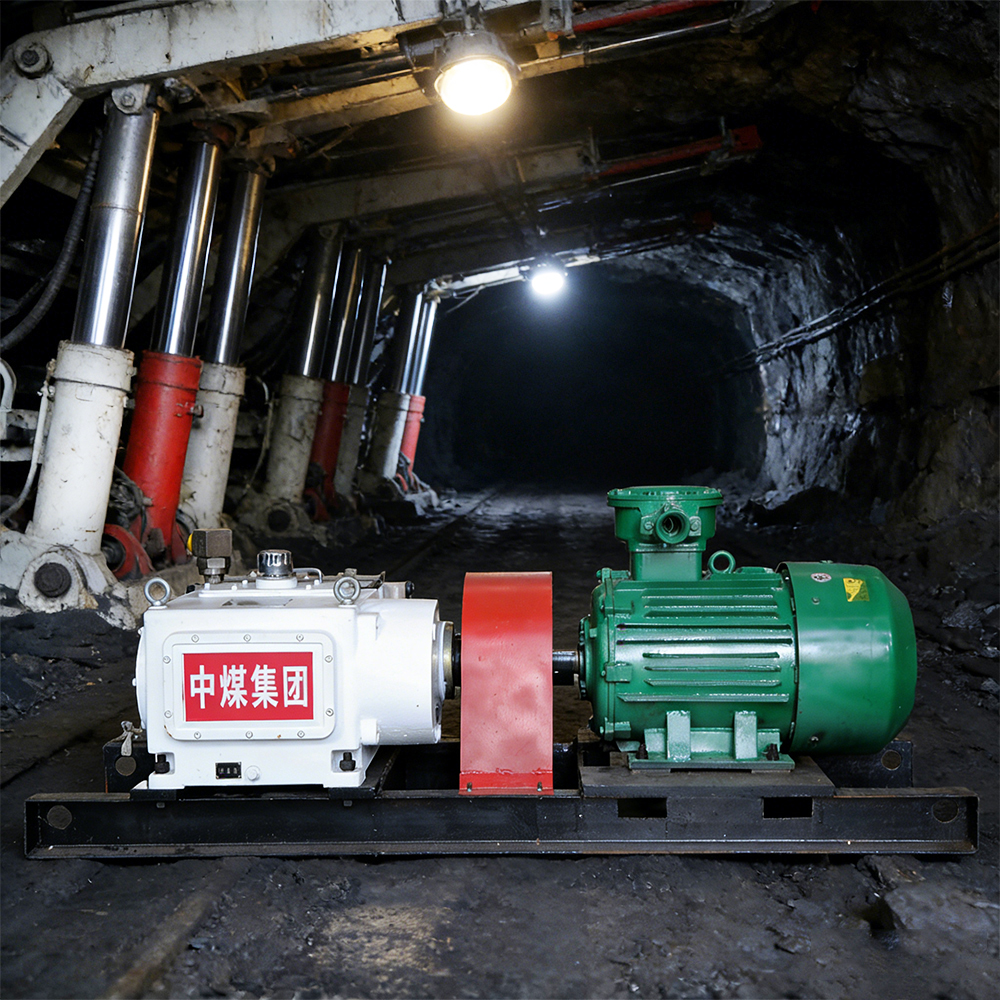

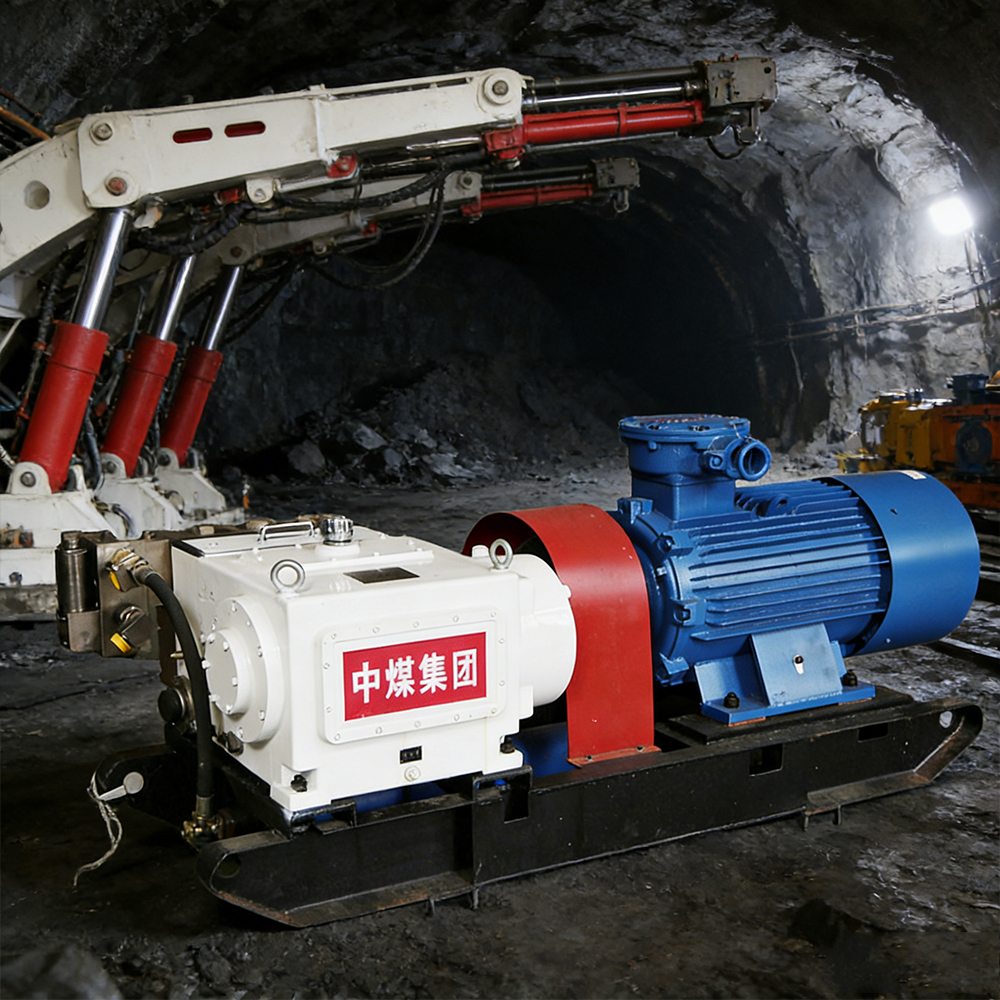

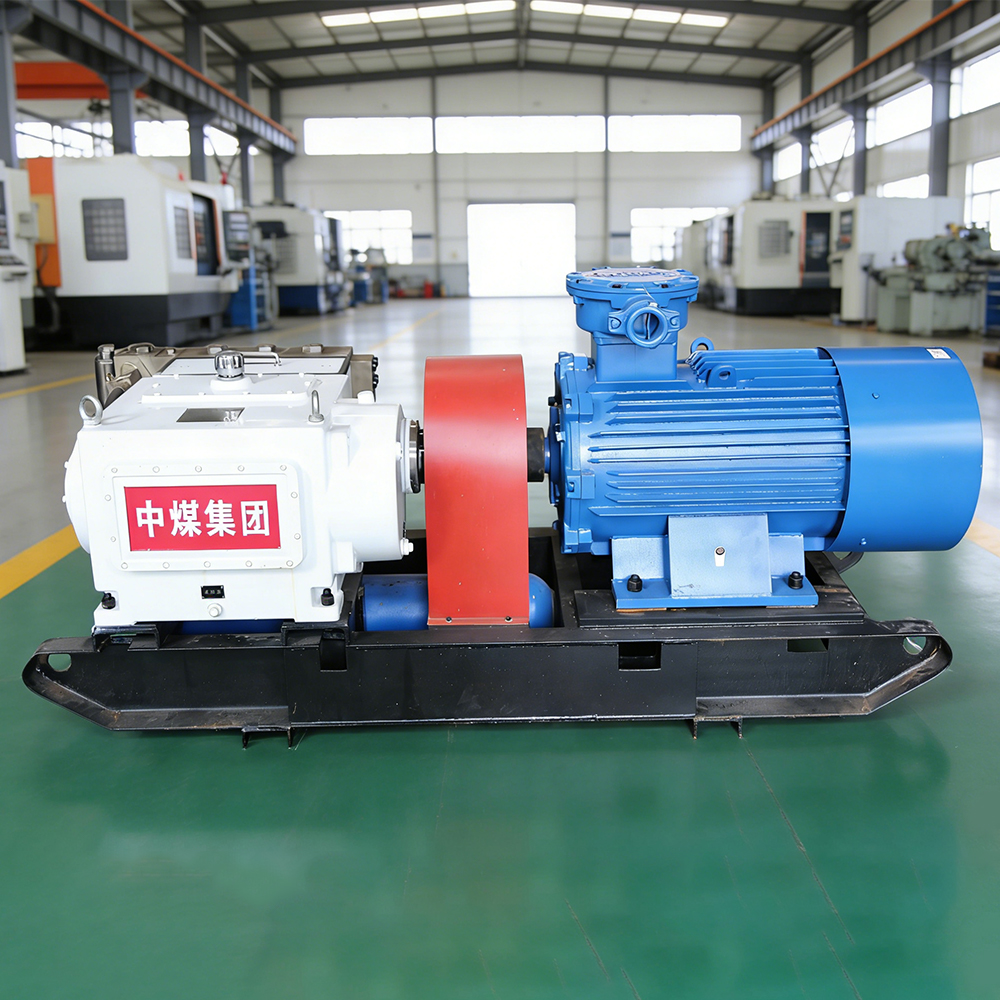

Mining Emulsion Pumping Station Photos
