XRB Series Inclined Shaft Man Car
XRB series mine man car is one of the safety equipment for all kinds of mine inclined shaft transport personnel. It is suitable for 18-43 kg/m rail, wooden sleeper, cement pillow and cement monolithic track bed. The angle of use is 10- 40 degree inclined shaft.
The car is towed by a winch or hoist. It can be operated independently by the first car or with a certain number of trailers. The number of vehicles to be hung depends on the inclination angle of the mine . The car is equipped with self-braking and manual. Operate two kinds of braking methods, such as breaking rope or accident, braking by yourself or manually.
The car is towed by a winch or hoist. It can be operated independently by the first car or with a certain number of trailers. The number of vehicles to be hung depends on the inclination angle of the mine . The car is equipped with self-braking and manual. Operate two kinds of braking methods, such as breaking rope or accident, braking by yourself or manually.
-
XRB Series Inclined Shaft Man Car
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
XRB Series Inclined Shaft Man Car Introduction
XRB series mine man car is one of the safety equipment for all kinds of mine inclined shaft transport personnel. It is suitable for 18-43 kg/m rail, wooden sleeper, cement pillow and cement monolithic track bed. The angle of use is 10- 40 degree inclined shaft.
The car is towed by a winch or hoist. It can be operated independently by the first car or with a certain number of trailers. The number of vehicles to be hung depends on the inclination angle of the mine . The car is equipped with self-braking and manual. Operate two kinds of braking methods, such as breaking rope or accident, braking by yourself or manually.
Product Parameters
XRB Series Inclined Shaft Man Car Parameters
Specification | XRB15-6/6 | XRB15-9/6 | XRC6-6/3 | XRC8-6/6 | XRC10-6/6S | XRC15-6/6S | PRC6 | PRC12 | PRC18 | |
Largest traction (kn) | 60 | 30 | 60 | 60 | 60 | 30 | 30 | 30 | ||
Maximum travel speed (m/s) | 4 | 3 | 4 | 4 | 3 | 3 | 3 | |||
Angle | 10°-40° | 10°-30° | 0° | |||||||
Horizontal Turning Radius (m) | 12 | 8 | 12 | 8 | ||||||
Wheelbase (m) | 1.2 | 1250 | 1250 | Bogie axis distance 3.2 | ||||||
Gauge(mm) | 600 | 900 | 600/720/900 Customized | 600 | 600 | 762/900 | ||||
Number of bearable persons | 15 | 15 | 6 | 8 | 10 | 15 | 6 | 12 | 18 | |
Weight (kg) | First car | 2200 | 2445 | 1010 | 1168 | 1520 | 1595 | |||
Tail Car | 1000 | 1200 | 1287 | 1205 | 1555 | 1630 | ||||
Dimension | L mm | 4385 | 4385 | 3285 | 3530 | 4930 | 4930 | 3100 | 4280 | 4280 |
W mm | 1200 | 1400 | 1050 | 1226 | 1050 | 1226 | 1020 | 1020 | 1300 | |
H mm | 1538 | 1538 | 1474 | 1474 | 1474 | 1474 | 1580 | 1552 | 1552 | |
Photos

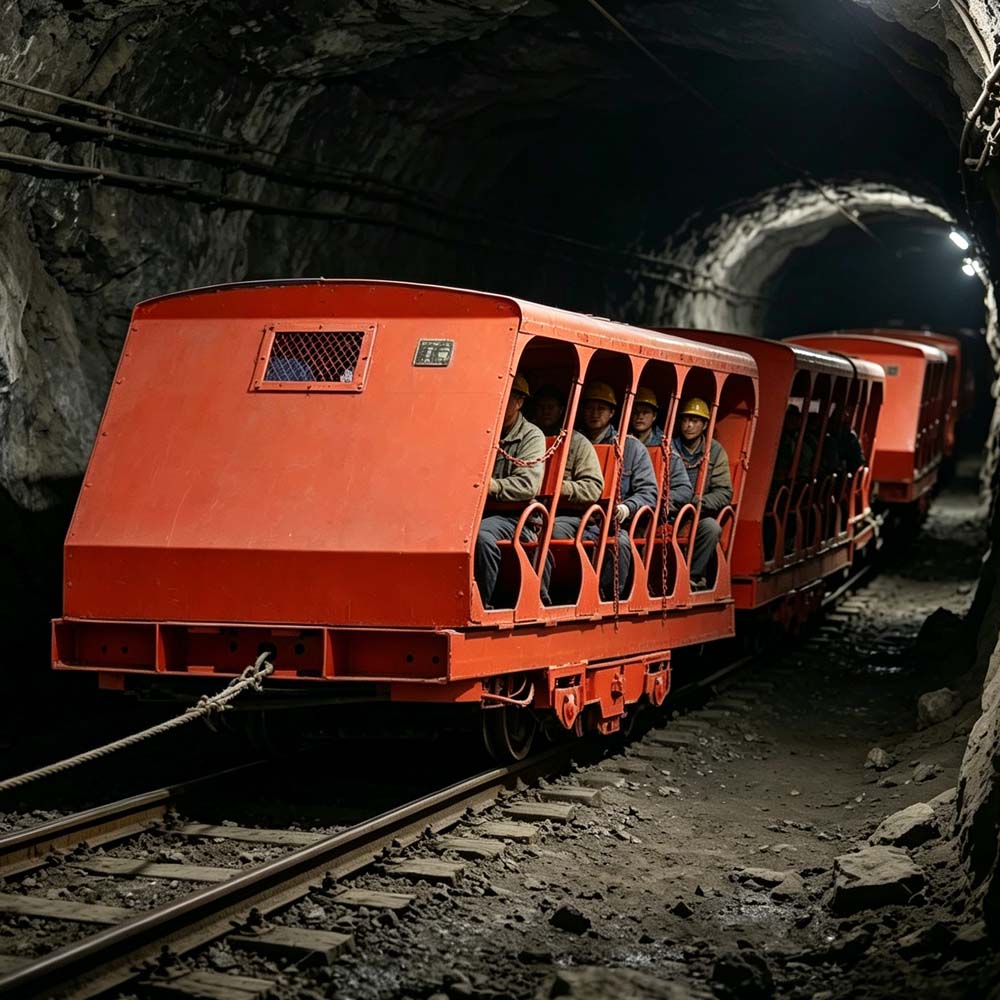

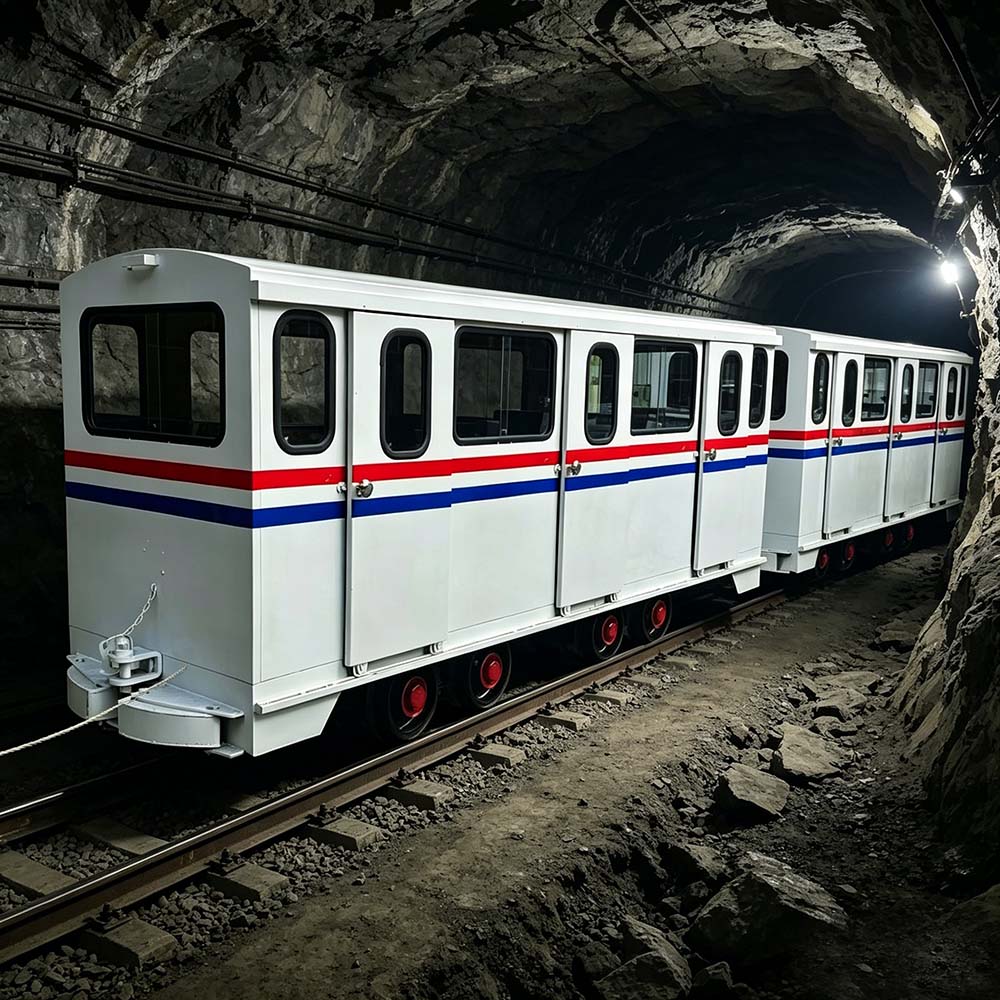

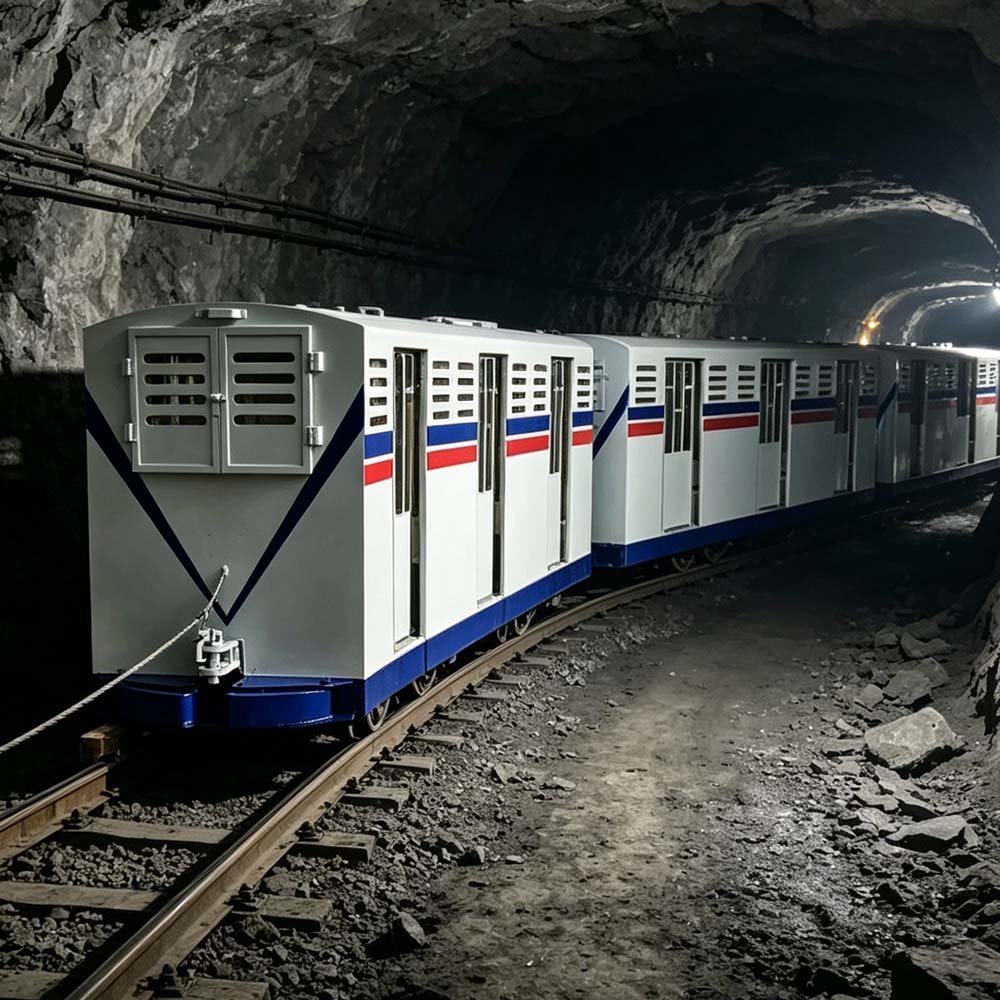

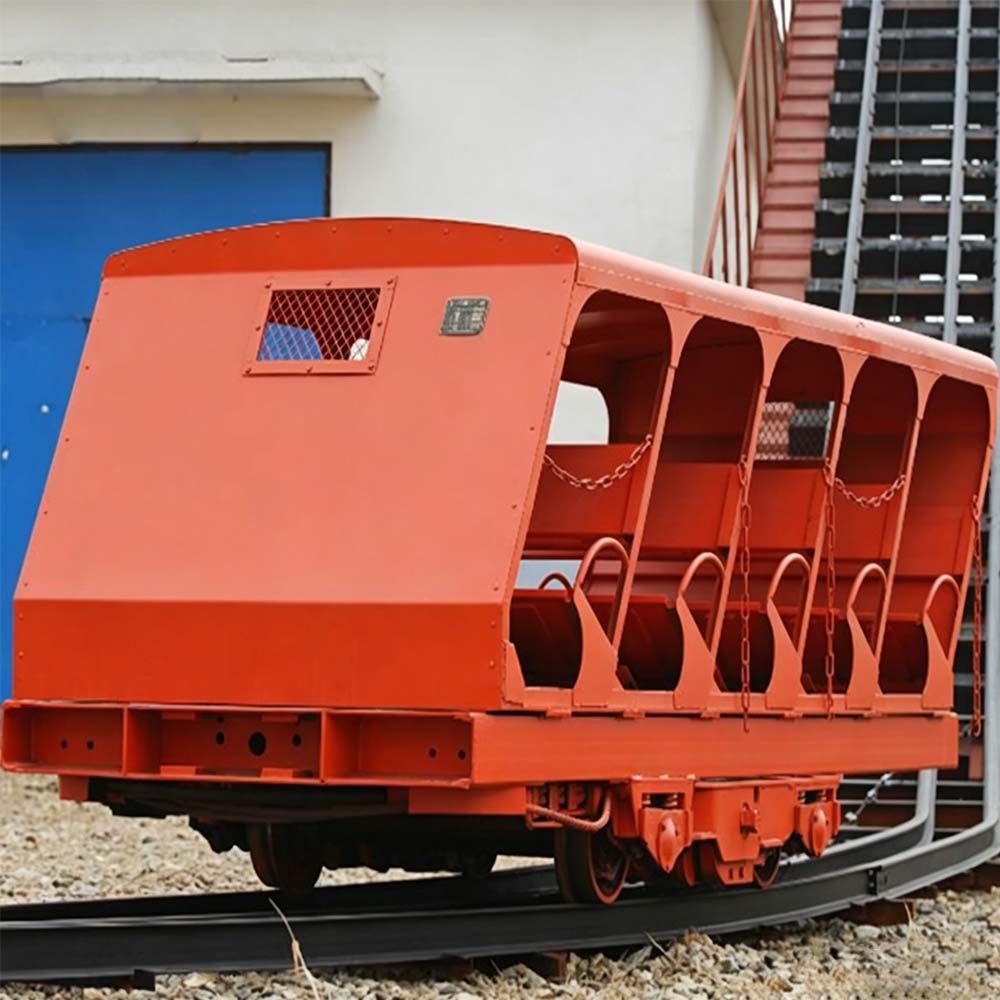

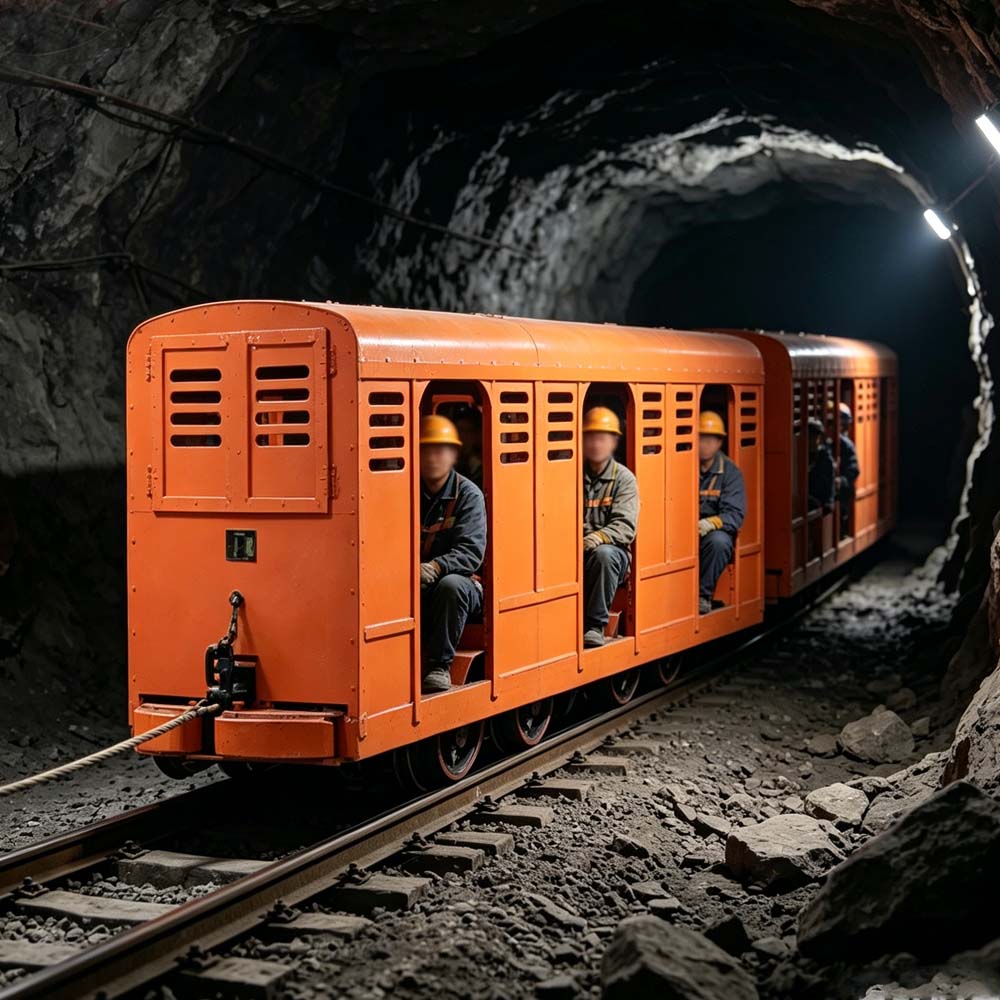

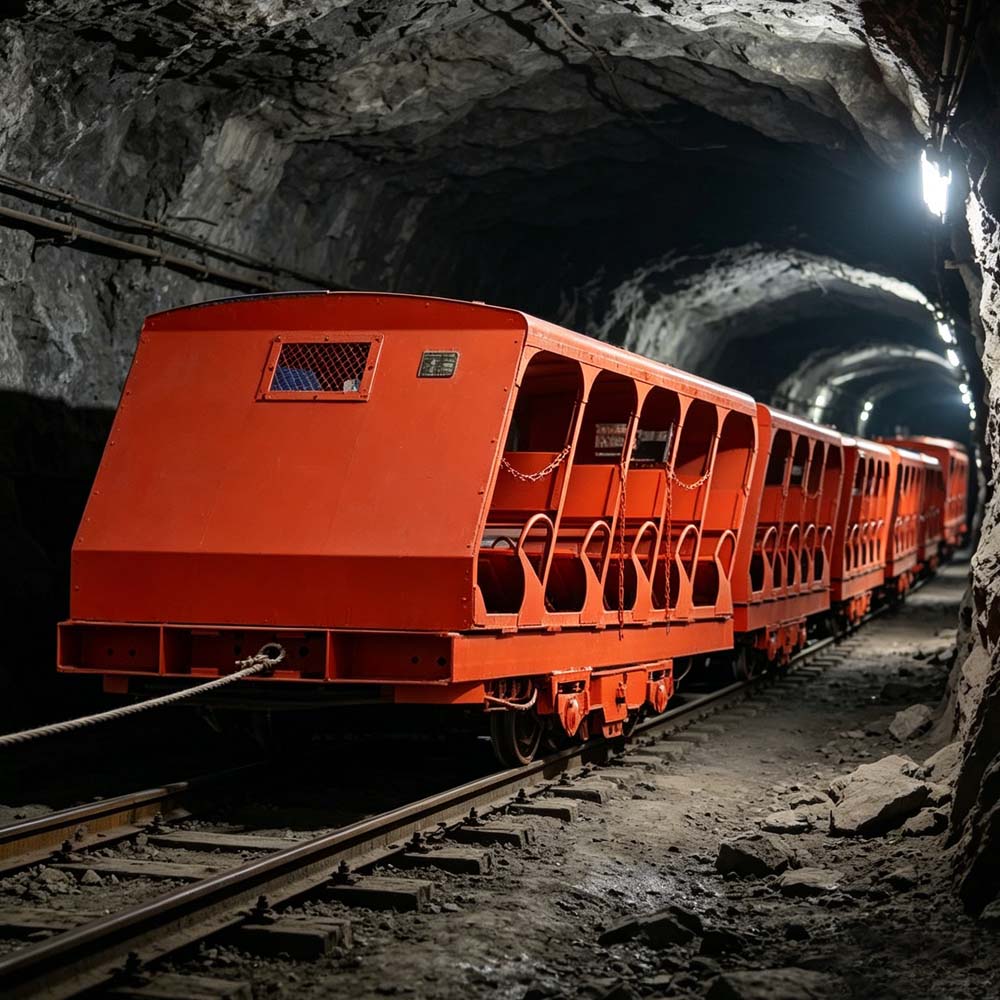

XRB Series Inclined Shaft Man Car Photos
