FBD Coal Mine Counter-Rotating Fan
China Coal Group
| Quantity: | |
|---|---|
Product Description
FBD Coal Mine Explosion-Proof Counter-Rotating Fan Introduction
FBD Coal Mine Explosion-Proof Counter-Rotating Fan should be used in coal mine underground for press-in local ventilator, suitable for local ventilation of mining face and various diverticulum. At the same time, it is also suitable for local ventilation plant of other mines and various tunnel ventilation.This product has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise and long air supply distance. According to different ventilation resistance requirements, it can be used both in the whole machine and in grades, thus reducing ventilation power consumption and saving energy. If the length of the roadway is less than 2000 meters, the fan can be supplied normally without moving the fan, which reduces the labor intensity of the workers and saves ventilation time. It is an ideal equipment for local ventilation in coal mines.
Product Parameters
FBD Coal Mine Explosion-Proof Counter-Rotating Fan Parameters
NO. | Rotate/min | Motor model | Power kW | Pressure( V) | DC current (A) | Air capacity m3/min | Pressure (Pa) | Highest efficiency(%) | A sound Level(dB) |
4.0 | 2900 | YBF2-90L-2 | 22.2 | 380/660 | 4.85/2.79 | 136~89 | 256~2050 | ≥75 | ≤30 |
YBF2-100L-2 | 23 | 380/660 | 6.4/3.7 | 150~100 | 325~2500 | ≥75 | ≤30 | ||
YBF2-112M-2 | 24 | 380/660 | 8.1/4.7 | 165~109 | 375~3040 | ≥75 | ≤30 | ||
5.0 | 2900 | YBF2-112M-2 | 24 | 380/660 | 8.1/4.7 | 217~145 | 275~2060 | ≥75 | ≤30 |
YBF2-132S1-2 | 25.5 | 380/660/1140 | 11.1/6.4/3.7 | 240~161 | 325~2540 | ≥75 | ≤30 | ||
YBF2-132S2-2 | 27.5 | 380/660/1140 | 14.8/8.66/4.97 | 266~178 | 400~3155 | ≥75 | ≤30 | ||
5.6 | 2900 | YBF2-132S2-2 | 27.5 | 380/660/1140 | 14.8/8.66/4.97 | 286~188 | 275~2850 | ≥80 | ≤25 |
YBF2-160M1-2 | 211 | 380/660/1140 | 21.6/12.6/7.2 | 324~215 | 375~3690 | ≥80 | ≤25 | ||
YBF2-160M2-2 | 215 | 380/660/1140 | 28.8/17.0/9.6 | 400~236 | 1107~4500 | ≥80 | ≤25 | ||
6.3 | 2900 | YBF2-160M2-2 | 215 | 380/660/1140 | 28.8/17.0/9.6 | 410~237 | 400~4775 | ≥80 | ≤25 |
YBF2-160L-2 | 218.5 | 380/660/1140 | 35.5/20.5/11.8 | 442~256 | 460~5475 | ≥80 | ≤25 | ||
YBF2-180M-2 | 222 | 380/660/1140 | 41.0/24.4/13.67 | 468~274 | 525~6125 | ≥80 | ≤25 | ||
YBF2-200L1-2 | 230 | 380/660/1140 | 56.9/32.9/18.5 | 518~318 | 640~7310 | ≥80 | ≤25 | ||
7.1 | 2900 | YBF2-200L1-2 | 230 | 380/660/1140 | 56.9/32.9/18.5 | 608~352 | 523~6228 | ≥80 | ≤25 |
YBF2-200L2-2 | 237 | 380/660/1140 | 67.9/40.3/22.6 | 650~350 | 608~7100 | ≥80 | ≤25 | ||
YBF2-225M-2 | 245 | 380/660/1140 | 82.1/48.4/27.4 | 696~402 | 686~8161 | ≥80 | ≤25 | ||
8..2 | 2900 | YBF2-225M-2 | 245 | 380/660/1140 | 82.1/48.4/27.4 | 817~473 | 605~7200 | ≥80 | ≤25 |
YBF2-250M-2 | 255 | 380/660/1140 | 102.6/59.3/34.3 | 874~506 | 692~8230 | ≥80 | ≤25 | ||
8.2 | 2900 | YBF2-280S-2 | 275 | 380/660/1140 | 56.8/77/44.5 | 960~540 | 750~8600 | ≥80 |
Product Photos

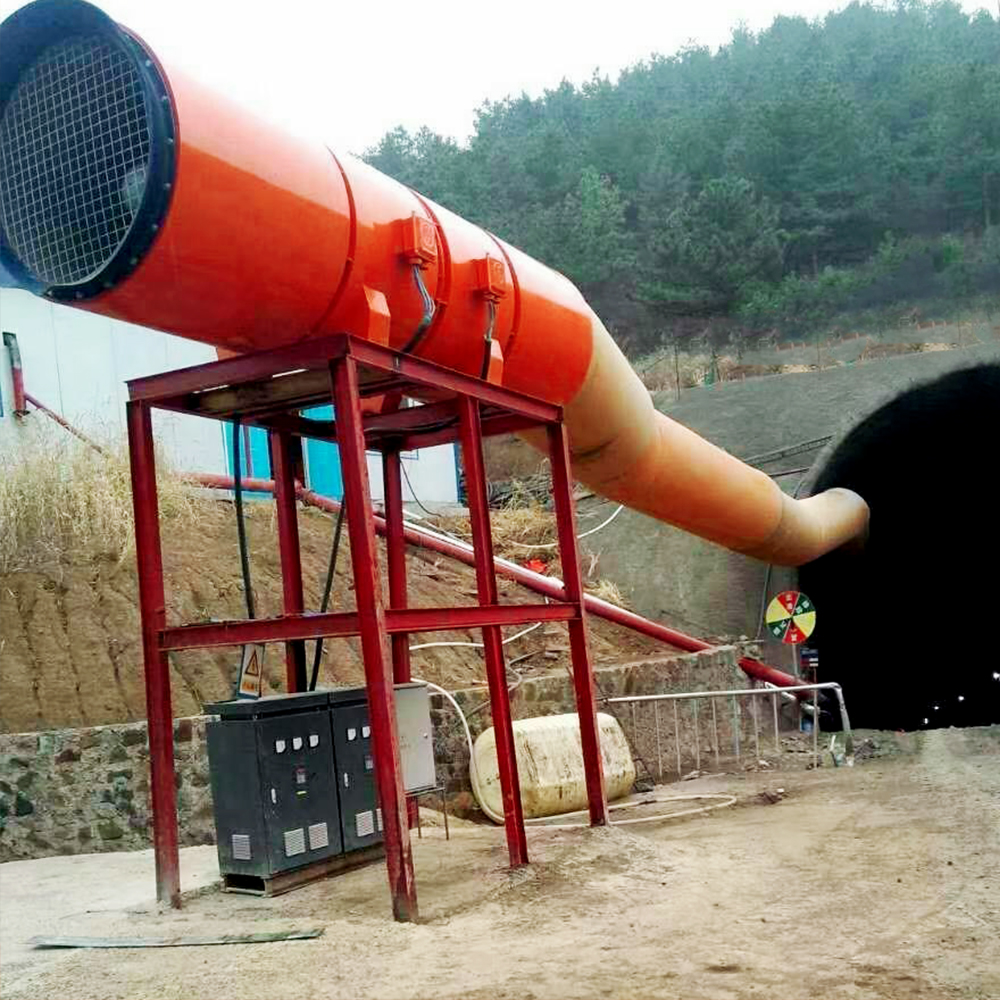

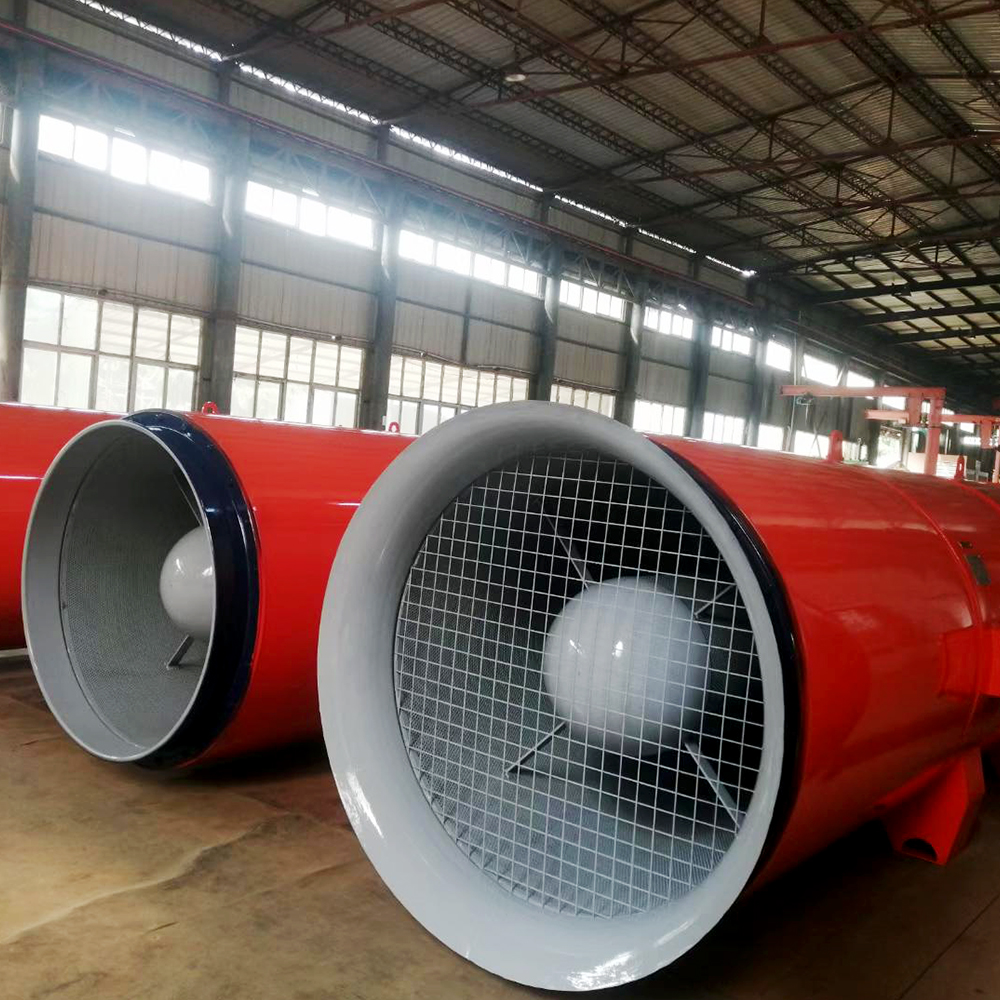

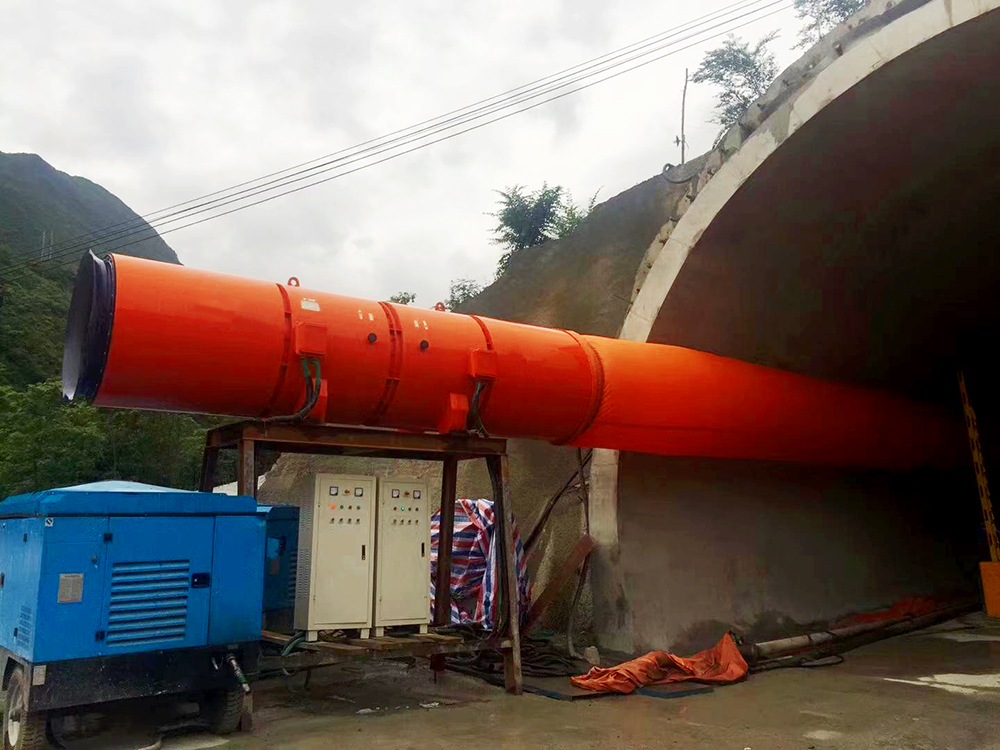

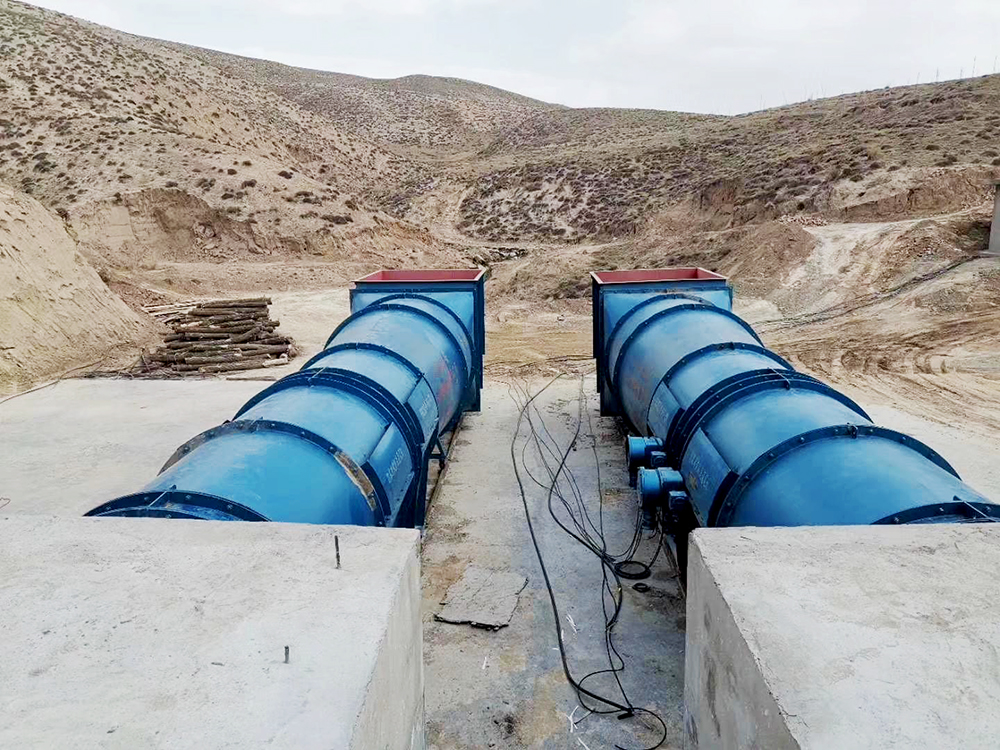

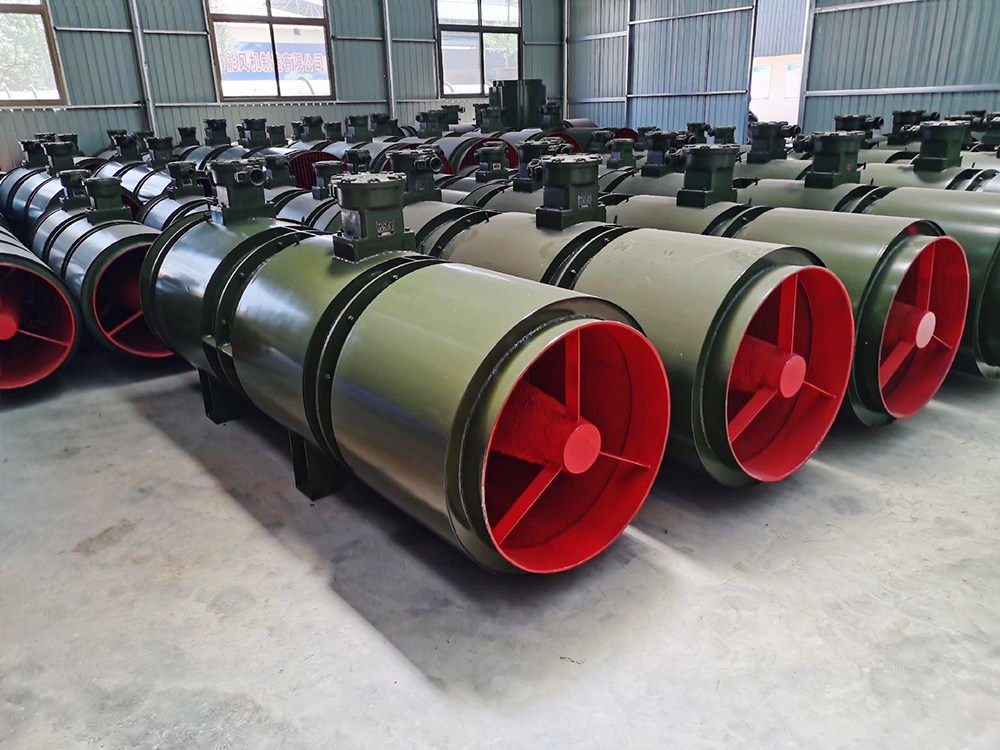

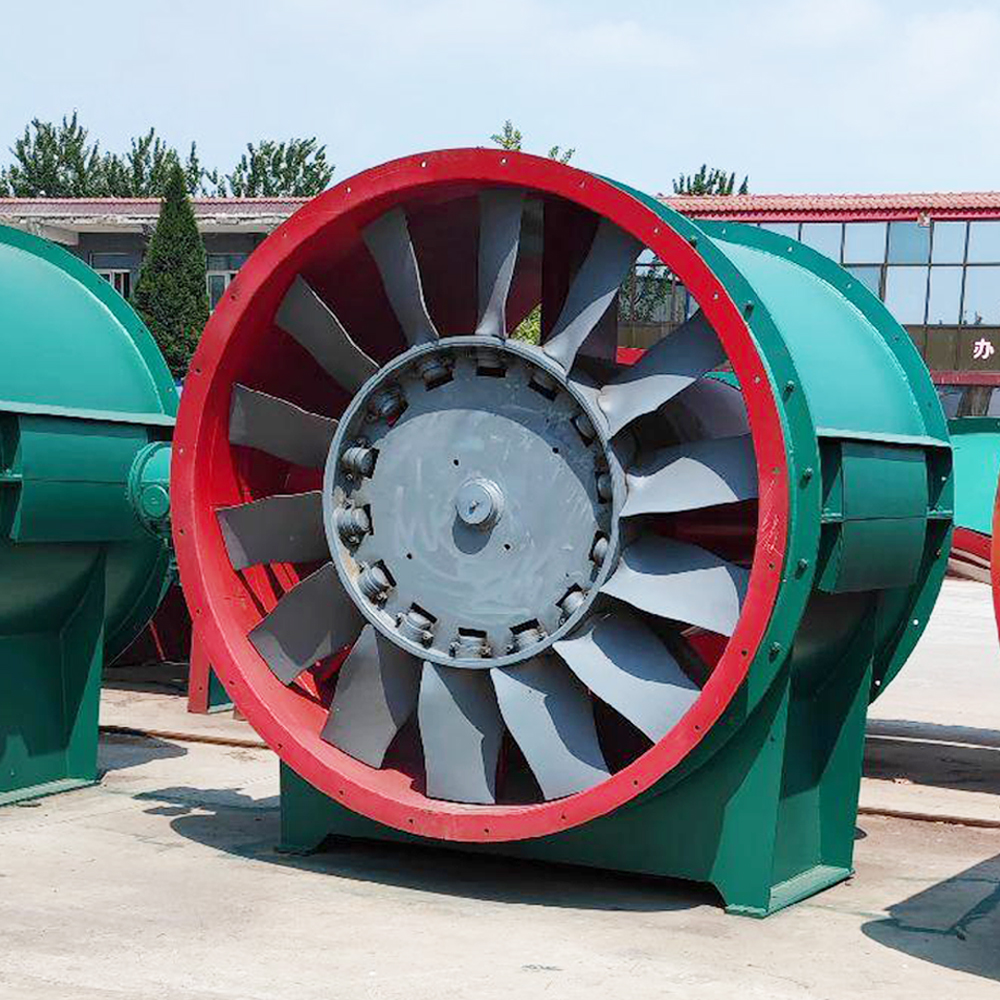

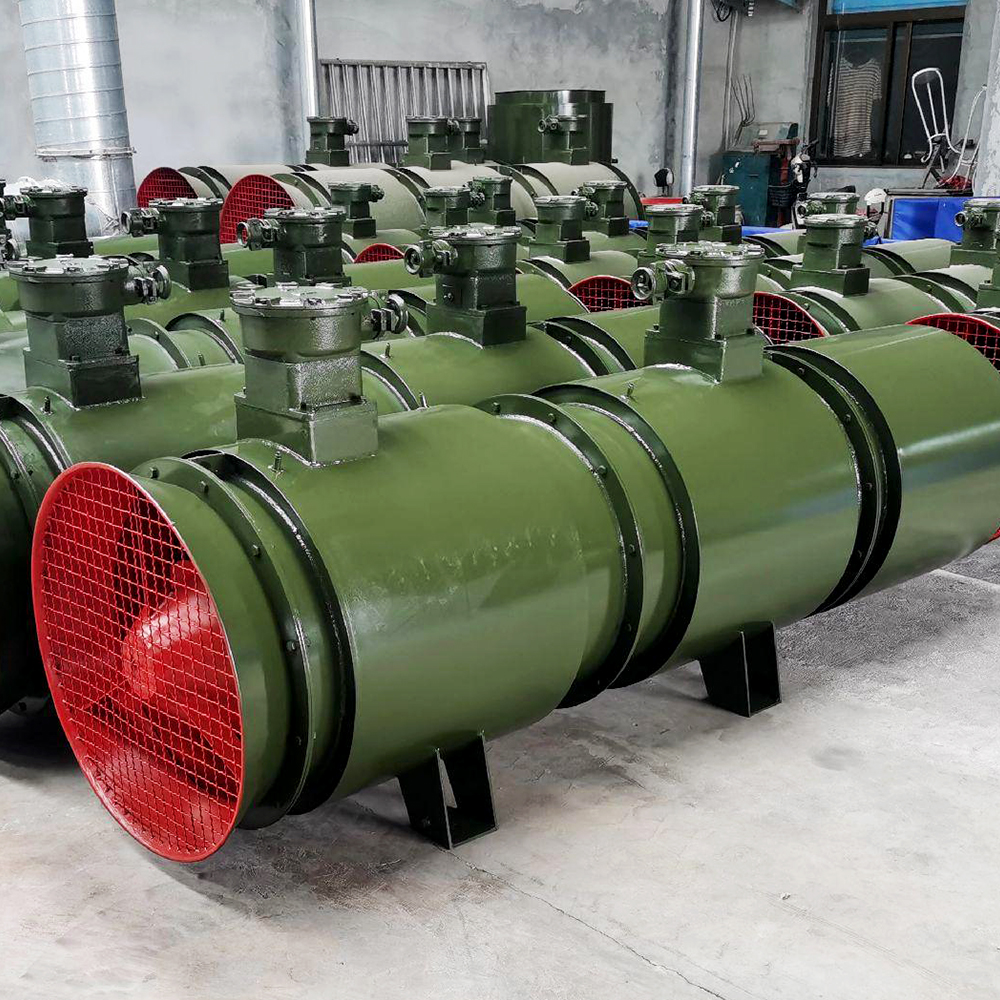

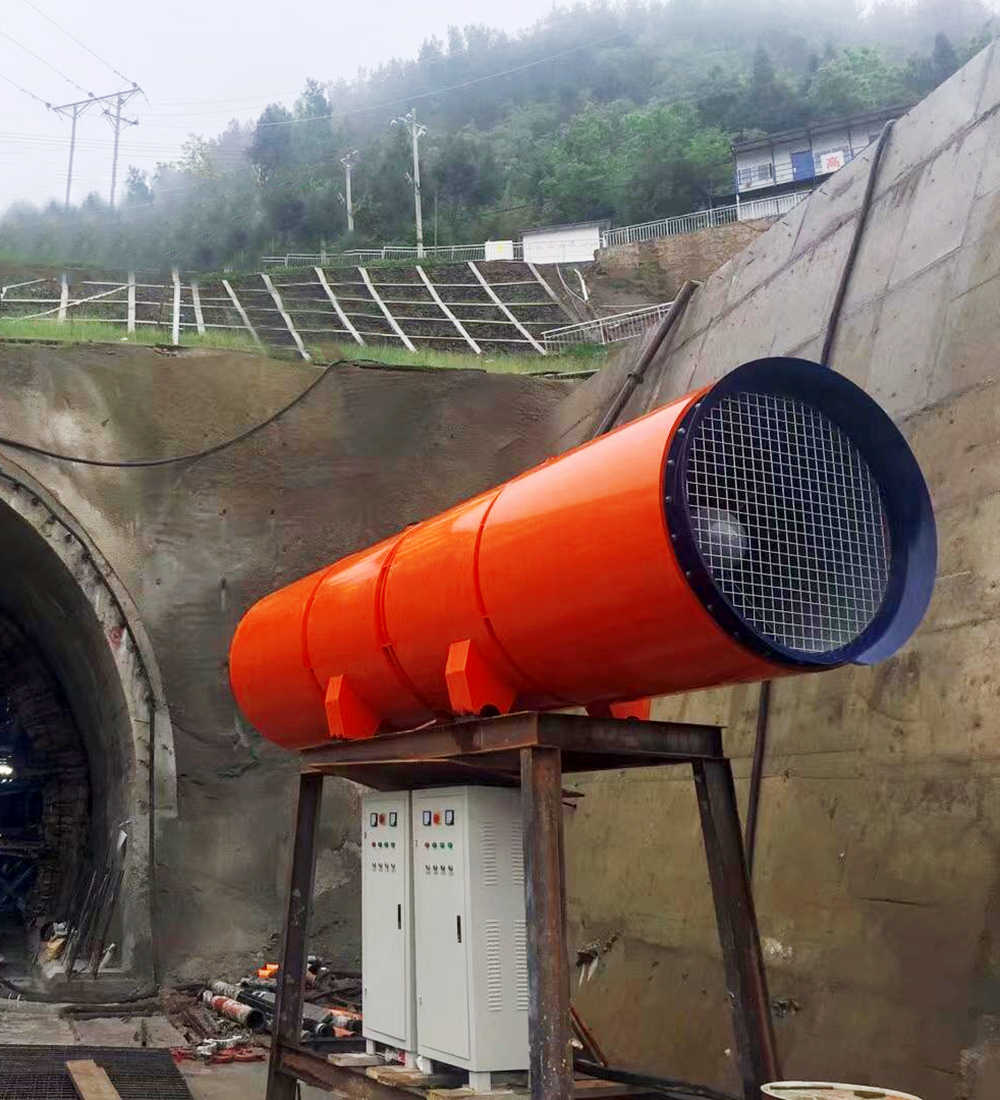

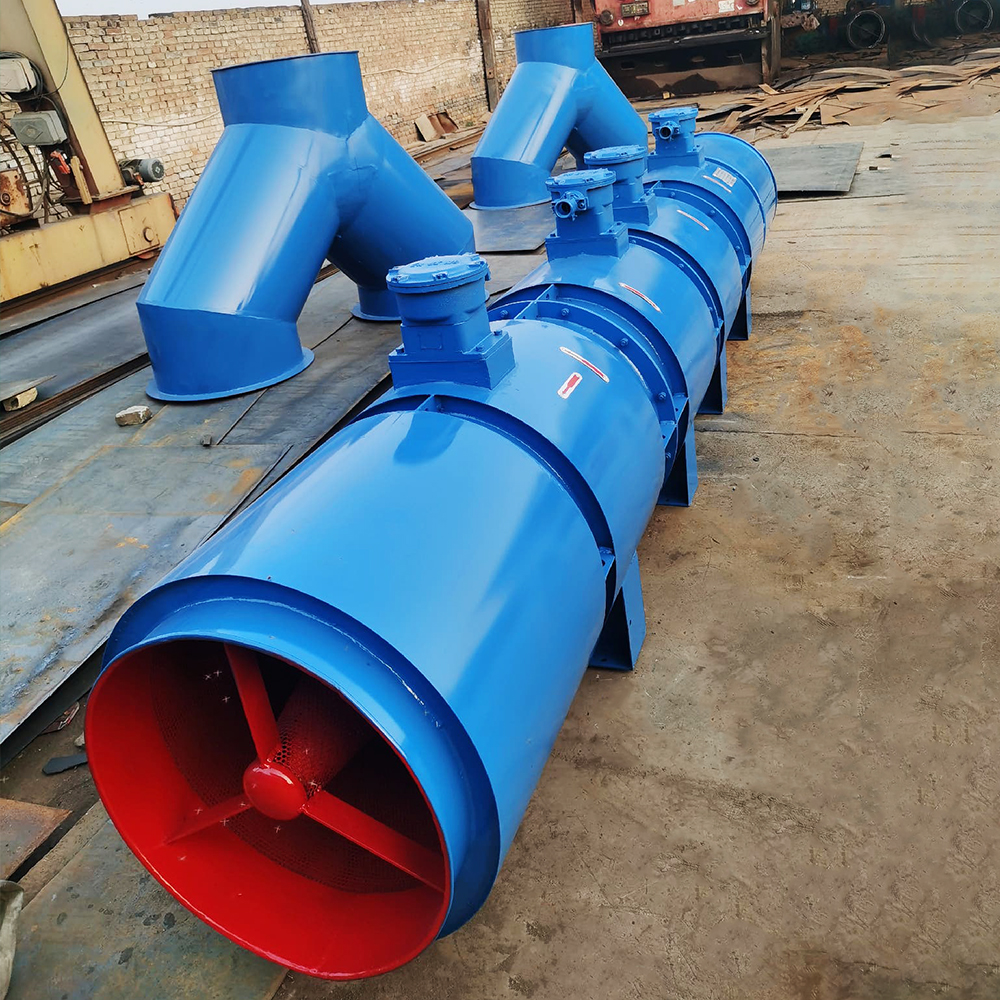

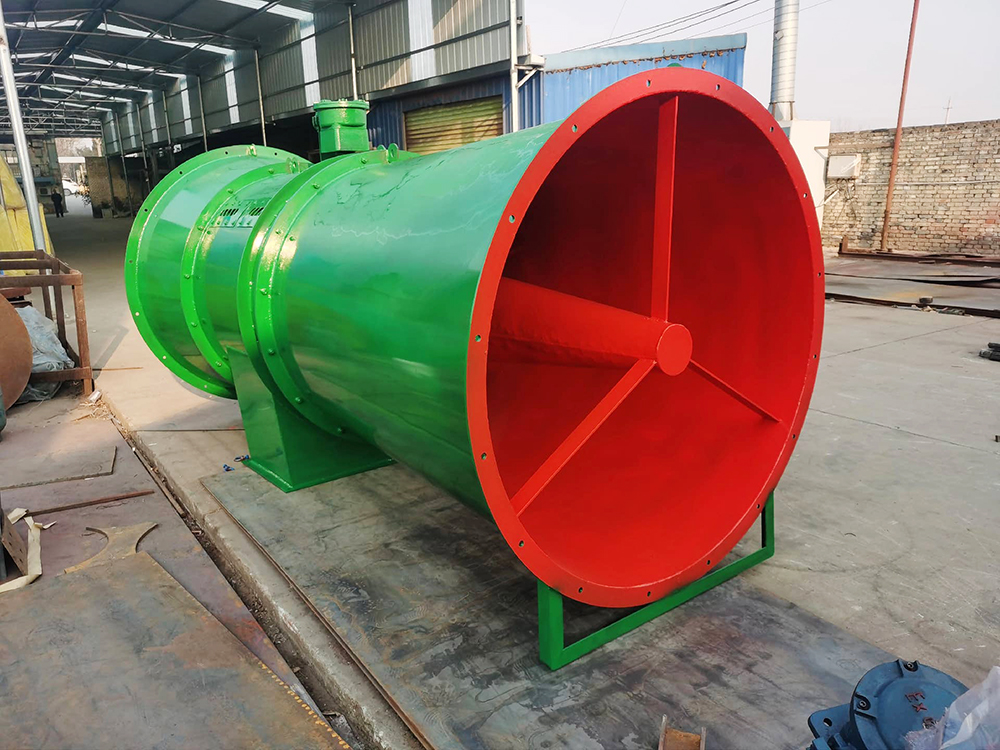

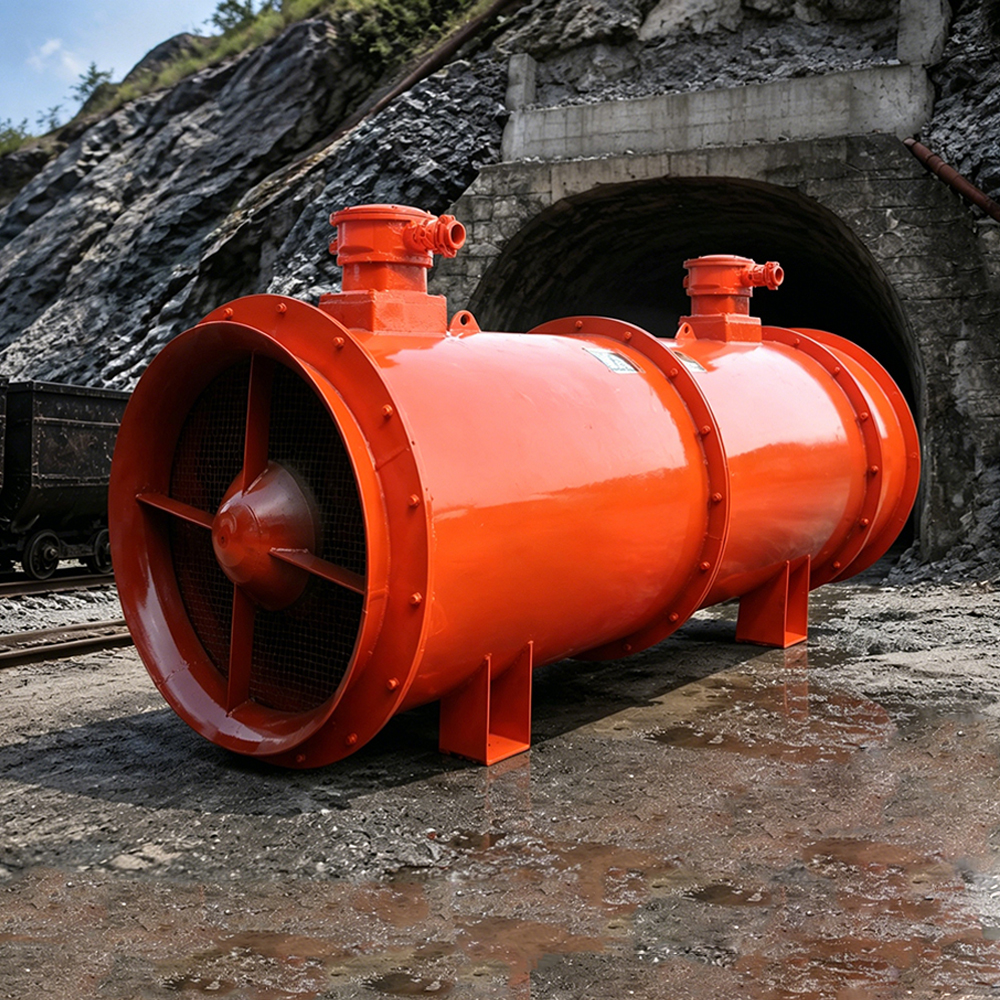

FBD Coal Mine Explosion-Proof Counter-Rotating Fan Photos
