GLD Series Belt Feeder

GLD Series Belt Feeder Introduction

The GLD Series Belt Feeder is widely used for feeding materials from various hoppers in industries such as coal, metallurgy, and power generation. It provides continuous feeding through a rotating belt system. During operation, the feeding rate can be adjusted without stopping the machine, either manually or by means of a hydraulic cylinder, according to actual production requirements. This enables the feeding system to better meet the requirements of downstream conveying and processing systems.

The GLD Series Belt Feeder is an upgraded replacement for traditional reciprocating feeders and vibrating feeders.

Application:
Used in bulk material conveying systems in industries such as coal, metallurgy, building materials, and chemical processing.

Working Principle:
Based on the operating principle of a belt conveyor. The conveying power is provided by a combined stepless variable-speed motor.

Belt Speed Adjustment:
The belt speed can be adjusted manually or by a Variable Frequency Drive (VFD).

Key Features

1. Stable and reliable operation
Smooth operation, high feeding speed, low noise, and good explosion-proof performance.

2. High capacity and low operating cost
Low overall cost and high feeding capacity, with capacities of up to several thousand tons per hour depending on the model and material conditions.

3. Flexible feeding-rate adjustment
The feeding capacity can be adjusted according to the user's requirements. Both manual and automatic adjustment are available. When equipped with a VFD, remote control and automatic adjustment can be achieved.

4. Anti-bridging / Hopper Arch-Breaking Device
Equipped with an arch-breaking device to effectively overcome material blockage, air locking, and bridging inside the hopper, ensuring smooth and uninterrupted material flow.

5. Easy installation and low modification cost
Simple installation, compact space requirements, convenient replacement of existing feeder models, low modification costs, and a short installation and commissioning period.

6. Reliable quality and stable performance
More than 90% of the components are standardized and interchangeable, making installation, maintenance, and spare-parts replacement convenient.

7. Complete auxiliary equipment
A comprehensive range of auxiliary equipment is available, providing complete functions and wide applicability for different operating conditions.

8. Enhanced impact resistance and longer belt service life
Multiple buffer idler sets are installed at the material discharge point at the bottom of the hopper. These idlers effectively absorb impact loads, protect the steel belt and endless reinforced rubber belt, and extend their service life.

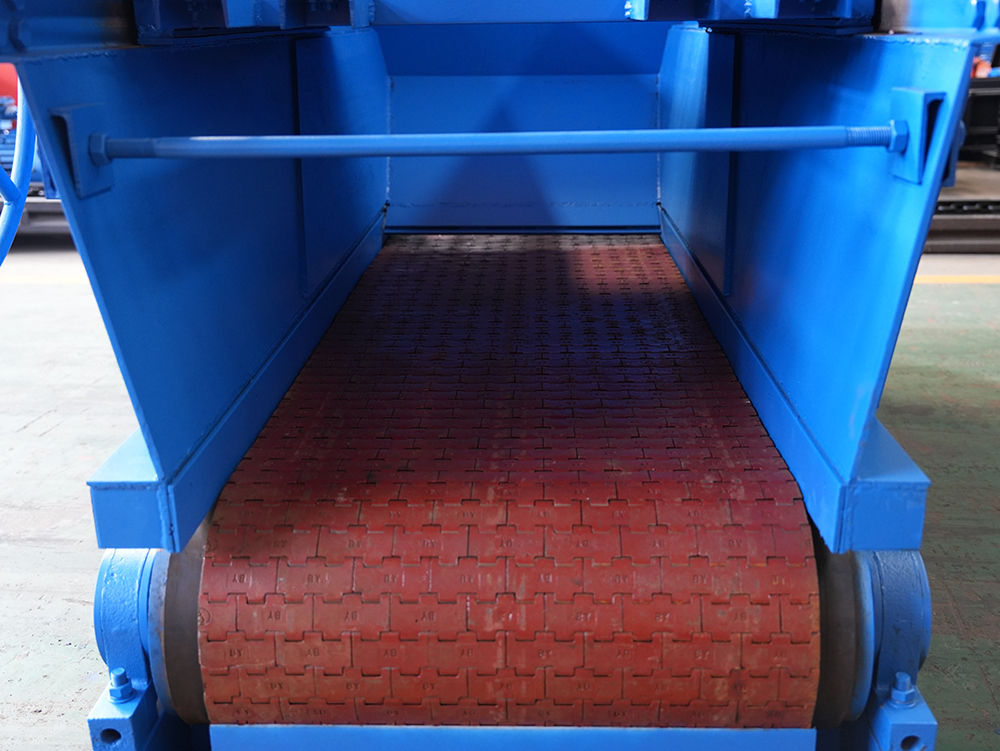

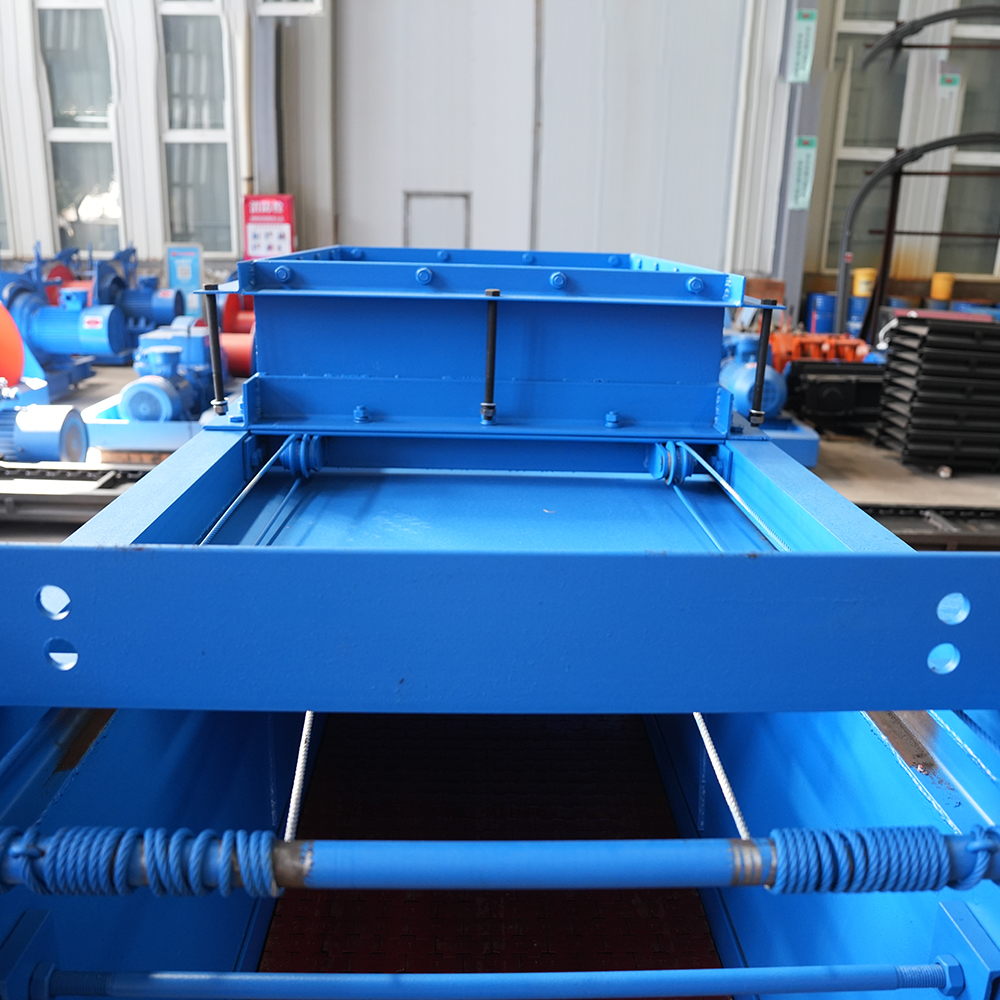

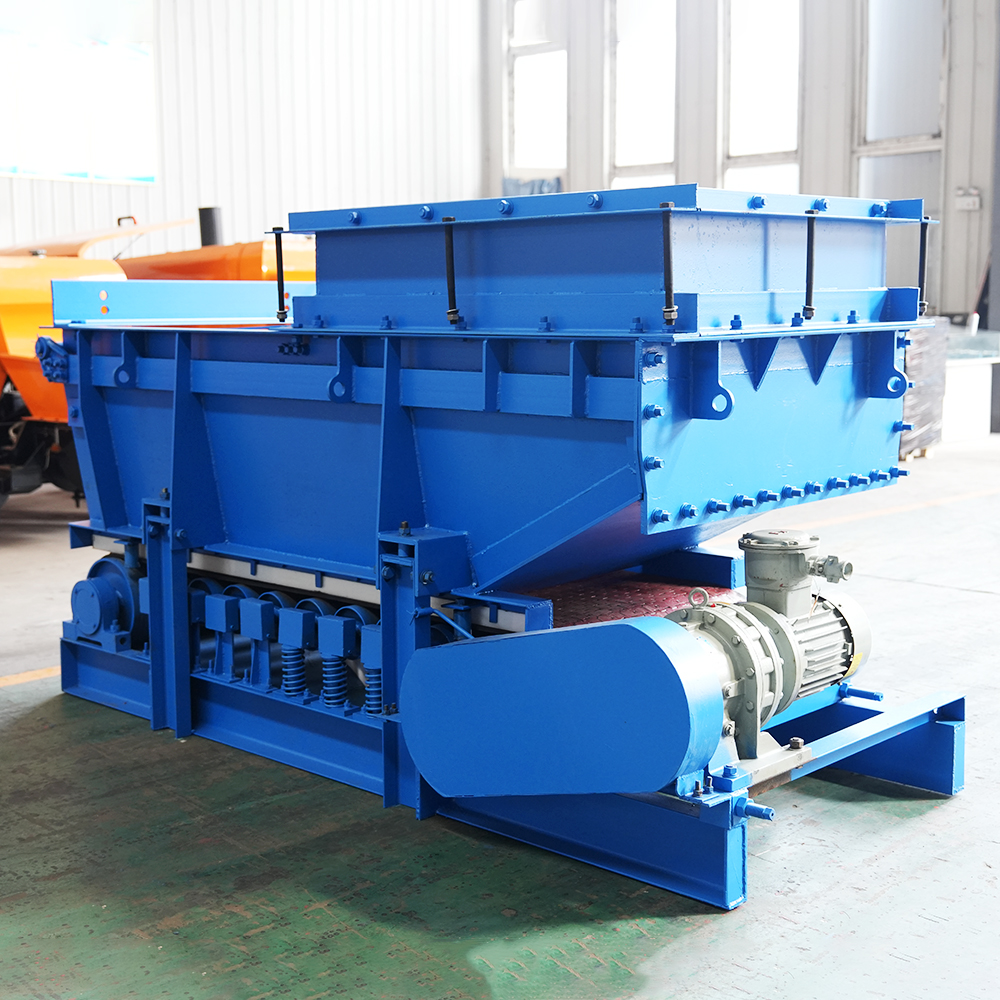

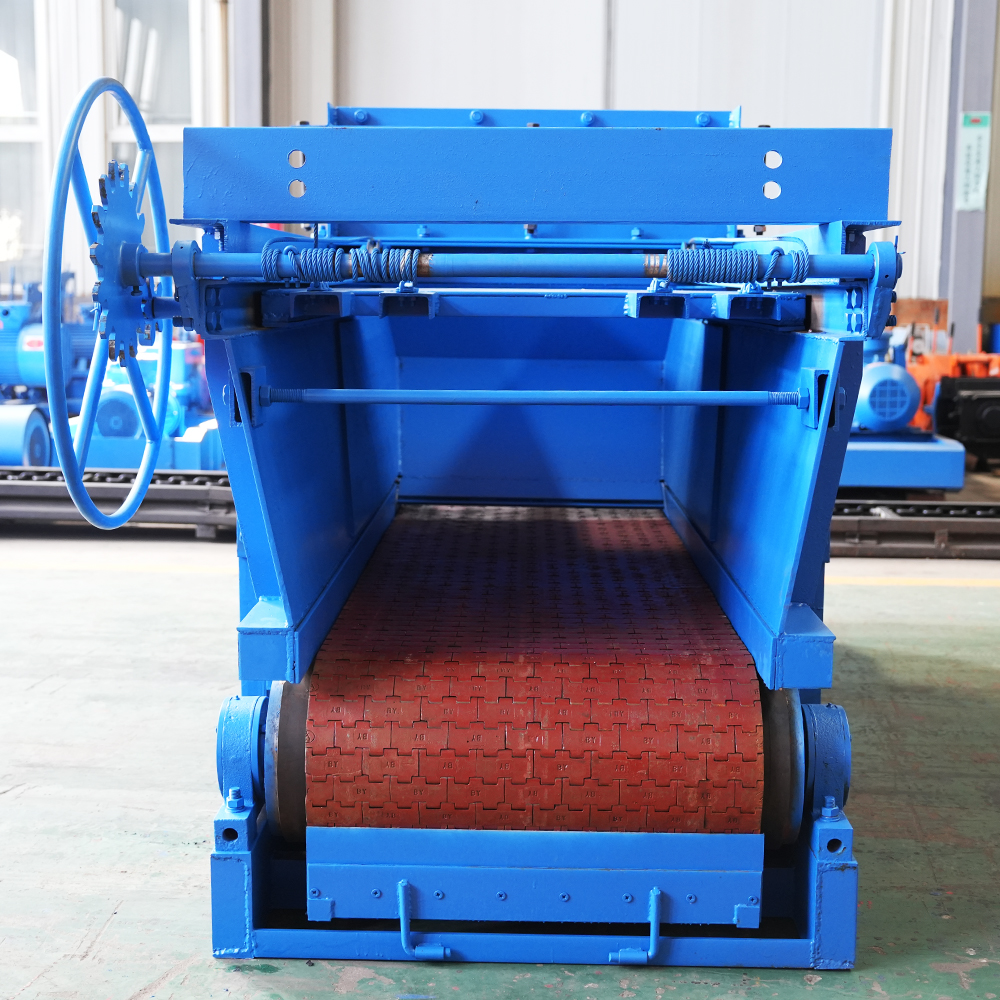

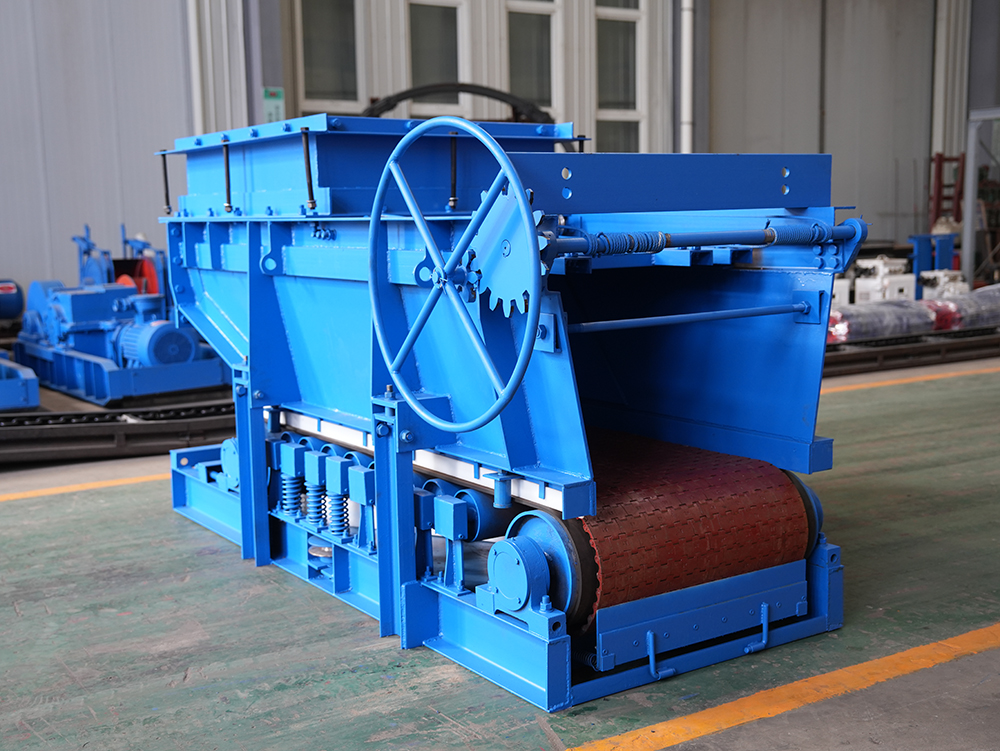

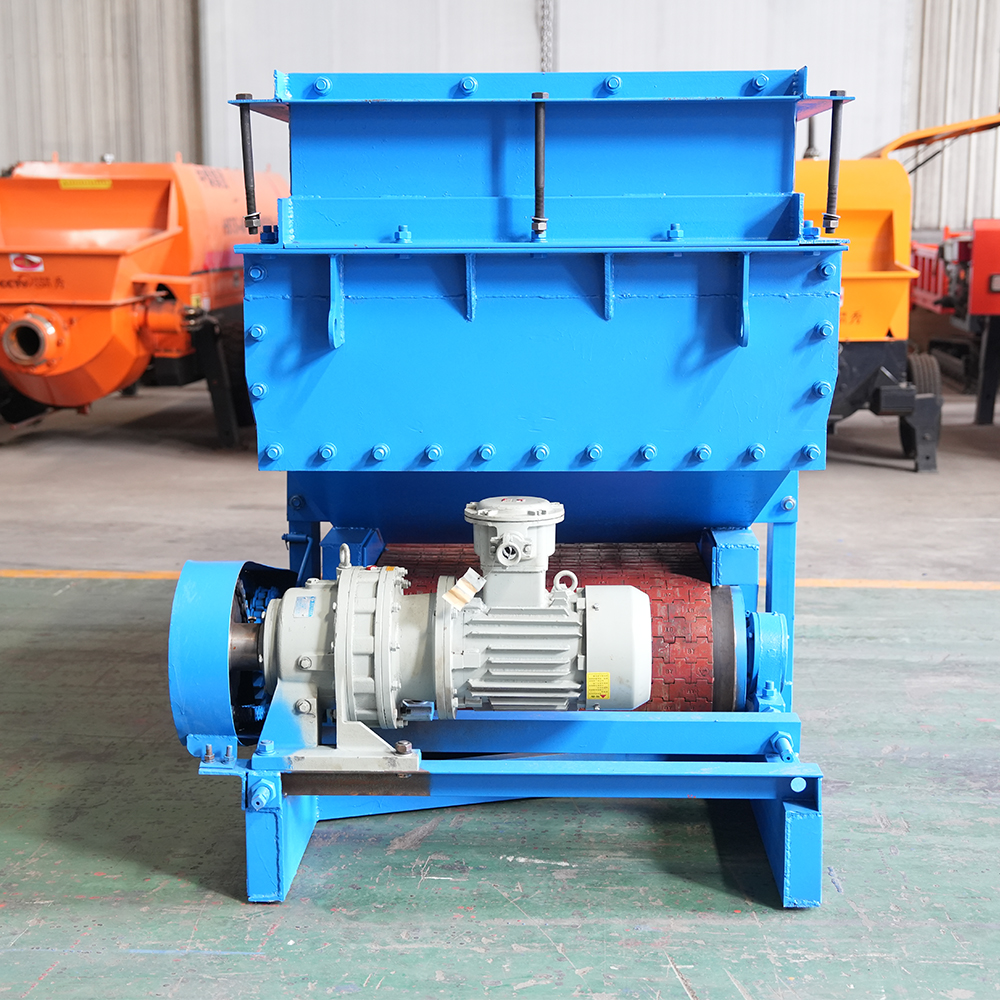

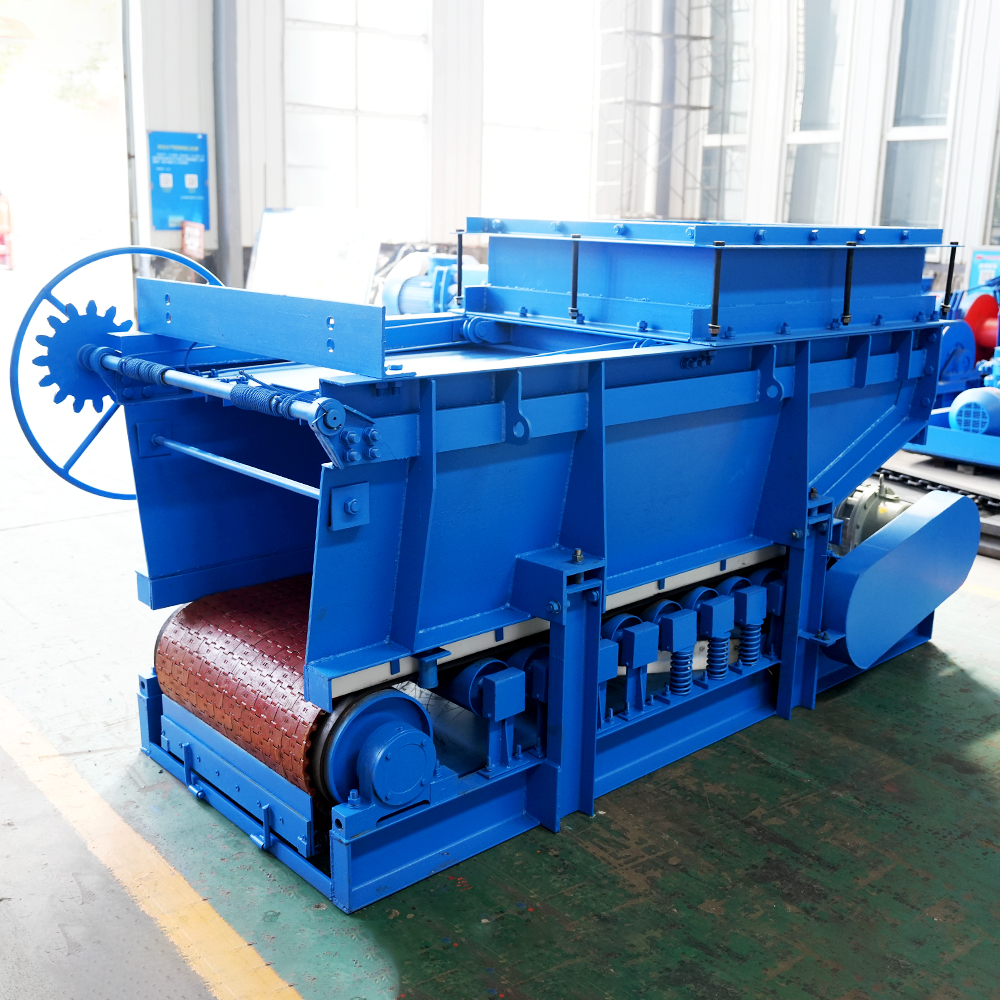

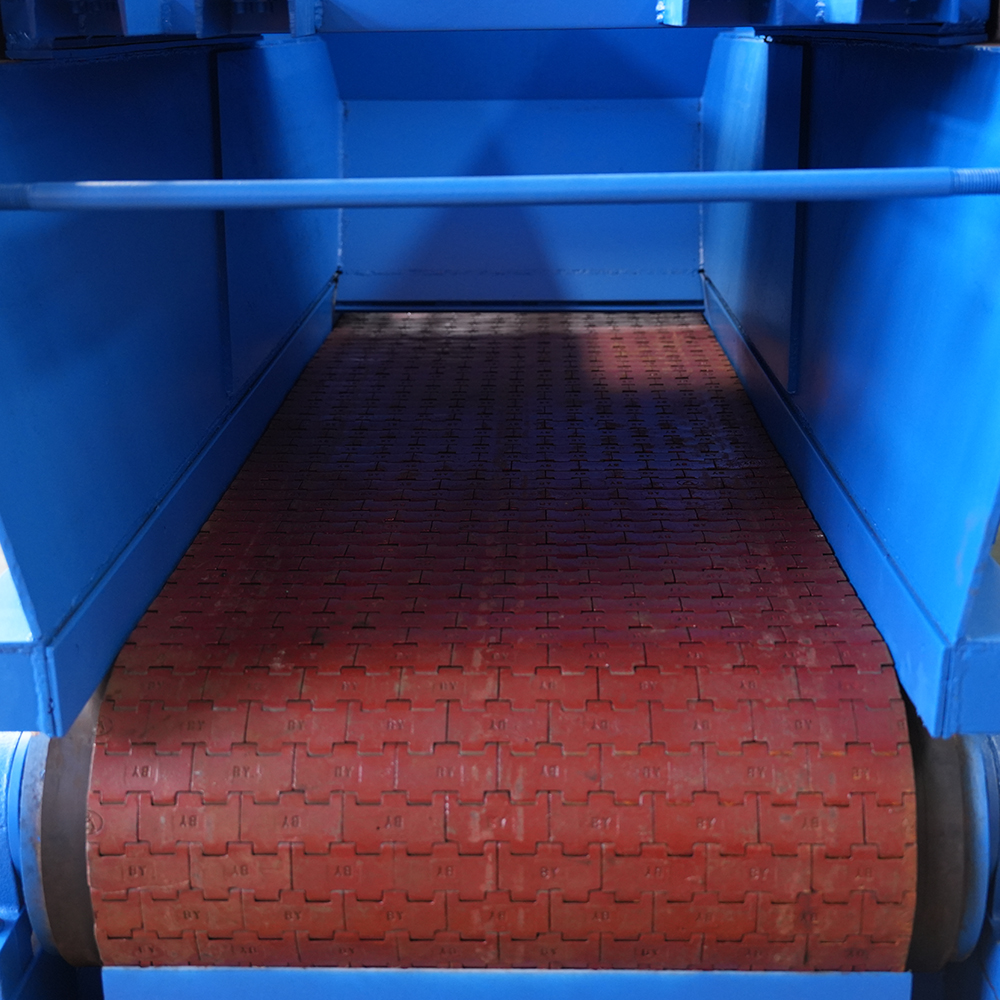

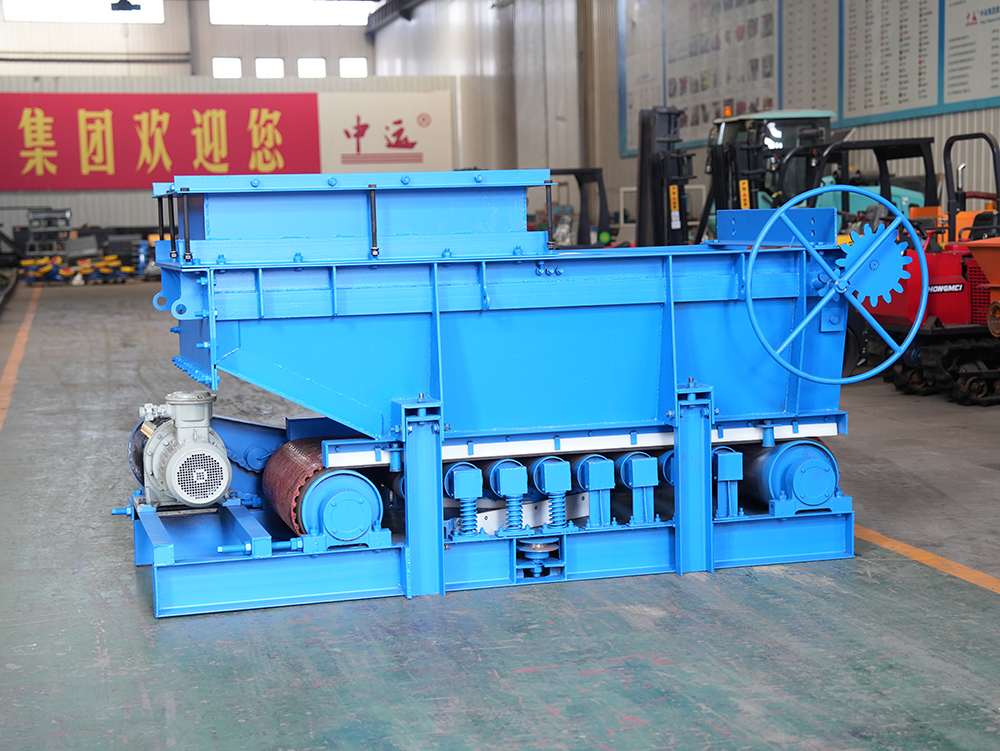

GLD Series Belt Feeder Photos
