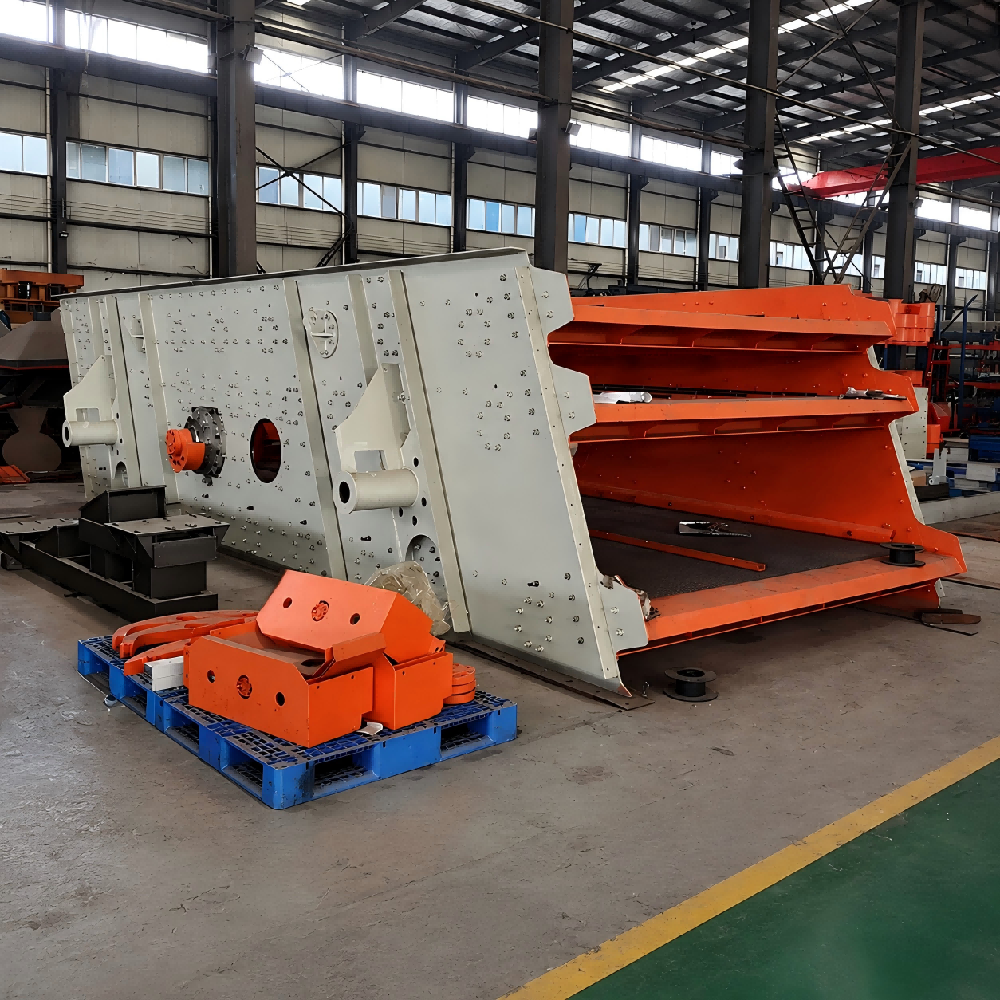

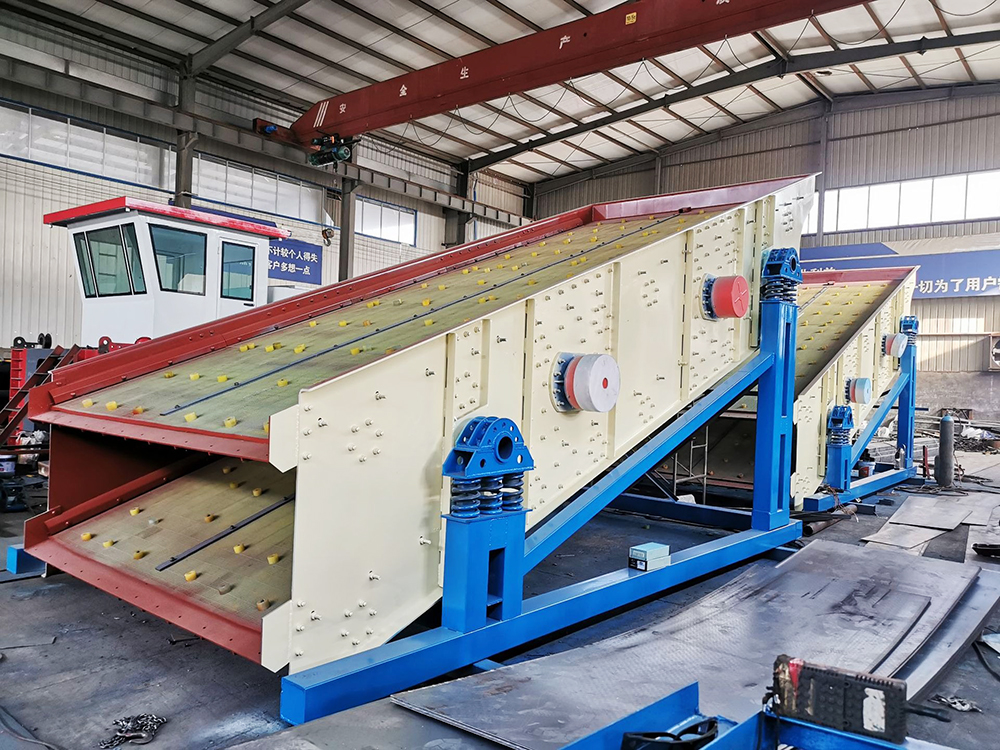

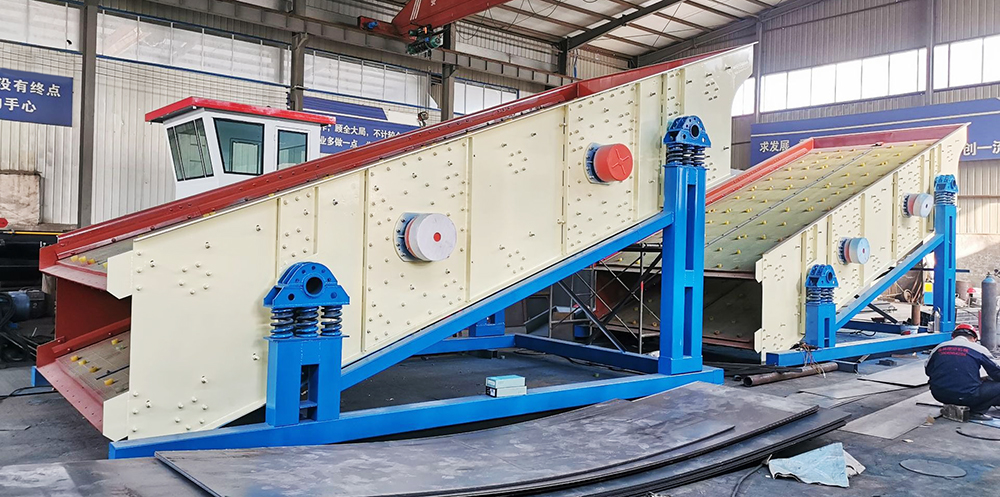

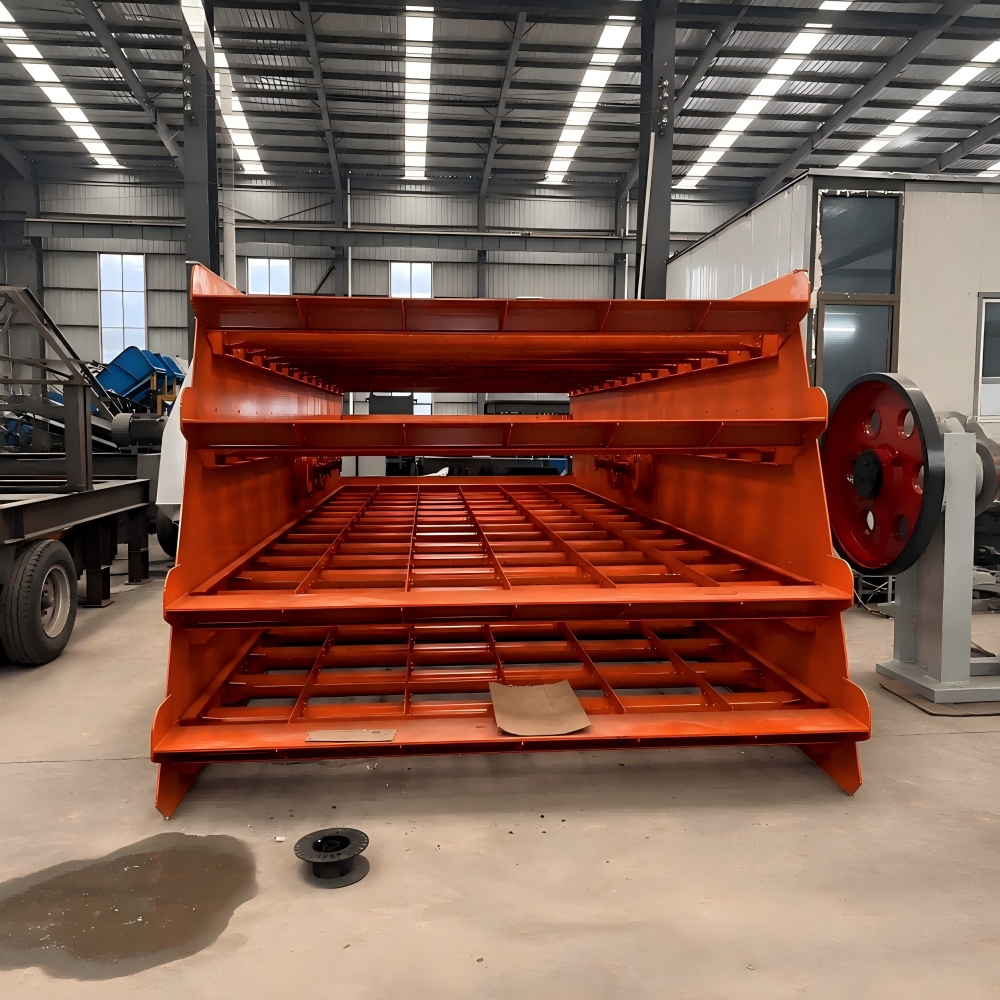

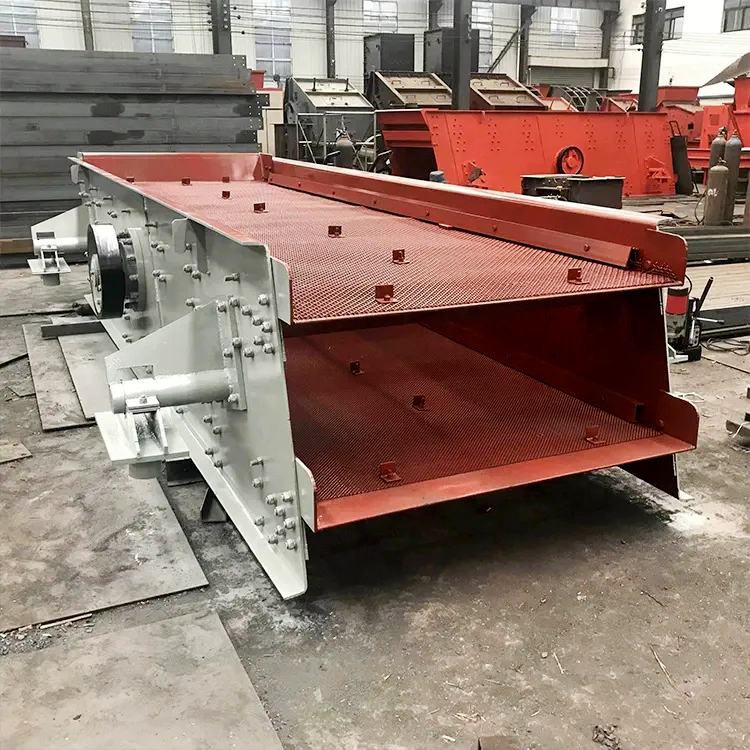

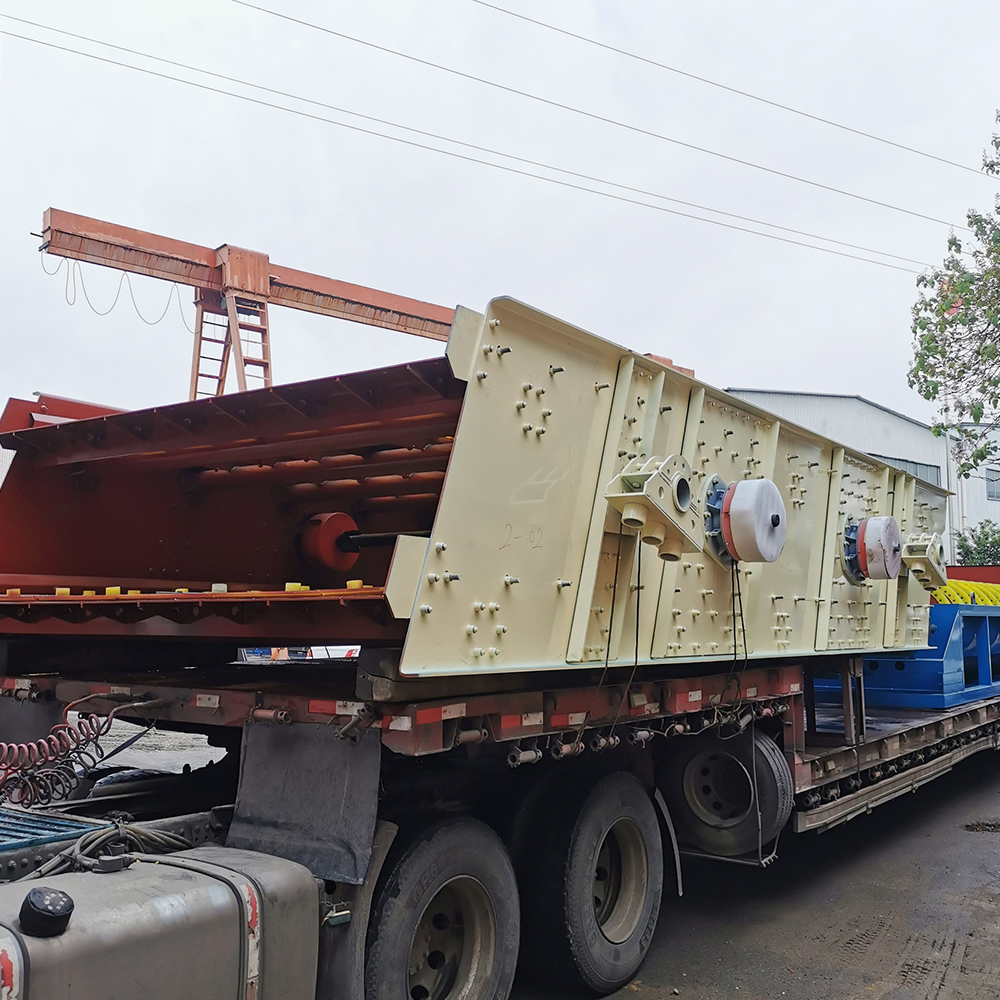

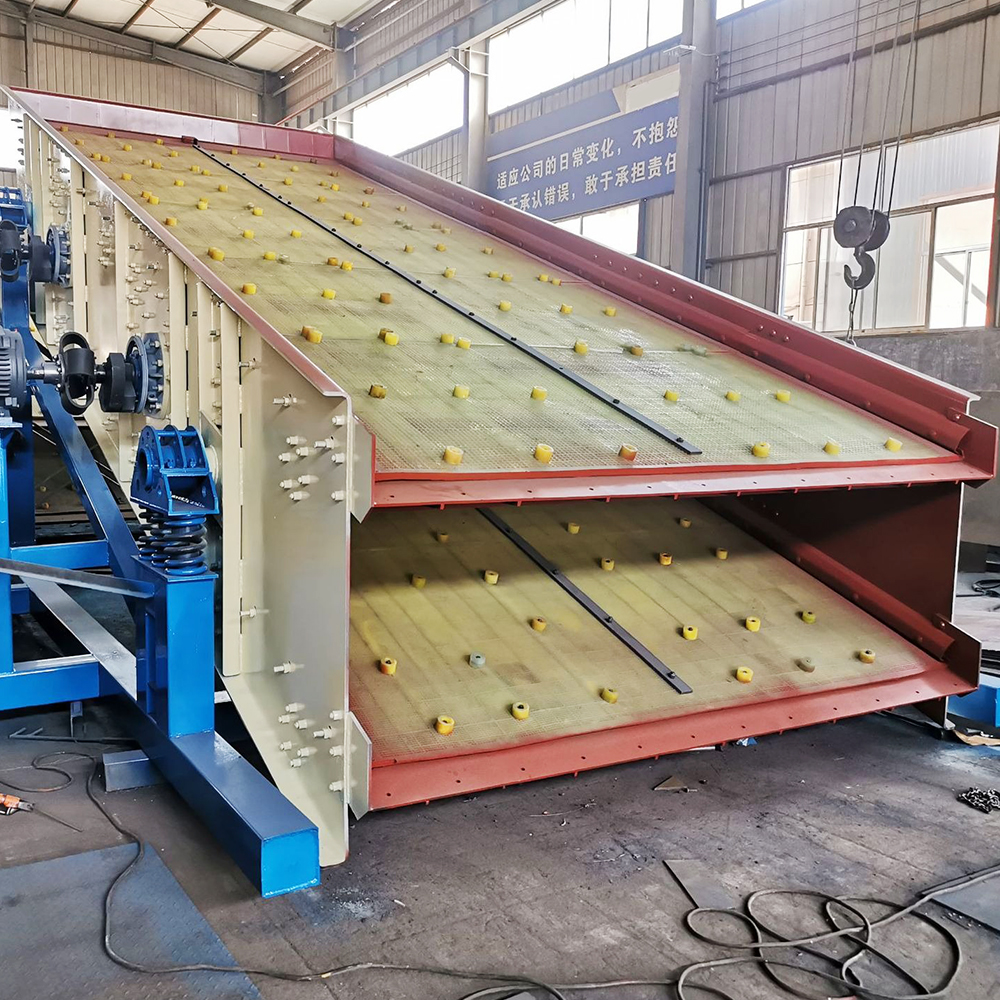

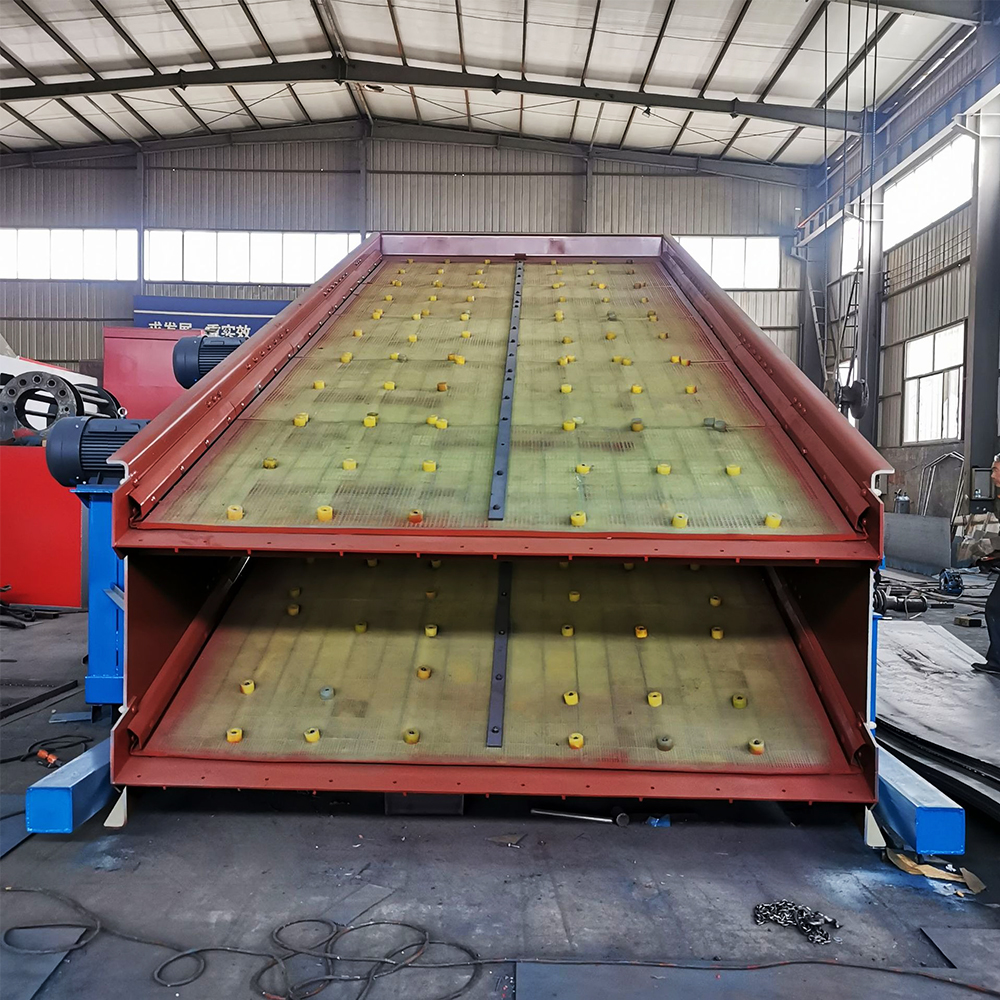

Industrial Vibrating Screen for Mining

A Vibrating Screen is an essential screening machine used in mining, quarrying, and mineral processing industries. It separates materials into different particle sizes through continuous vibration, helping improve screening efficiency and ensure consistent material classification.

Model:
Vibrating Screen
Brand:
China Coal Group

Quantity:
Availability:





Inquire Add to Basket

Product Description

Industrial Vibrating Screen for Mining Introduction

A Vibrating Screen is an essential screening machine used in mining, quarrying, and mineral processing industries. It separates materials into different particle sizes through continuous vibration, helping improve screening efficiency and ensure consistent material classification.

Our vibrating screens are suitable for screening various materials, including iron ore, copper ore, coal, limestone, granite, sand, gravel, and other mineral materials. Depending on different production requirements, the equipment can be configured with multiple screen decks to separate materials into several size fractions in one operation.

Featuring a robust structure, reliable vibration performance, and flexible screening configurations, the vibrating screen is widely used in mining plants, crushing and screening lines, aggregate production facilities, and coal processing plants.

Different models and screen mesh sizes are available according to material characteristics, feed size, processing capacity, and required screening accuracy. The vibrating screen can also be integrated with crushers, belt feeders, and belt conveyors to create an efficient material processing system.

Product Parameters

Industrial Vibrating Screen for Mining Parameters

Model	Number of Screen Decks	Screen Area	Vibration Frequency	Double Amplitude	Capacity	Motor Power	Weight	Overall Dimensions
2YK1224	2	2.88 m²	970 Hz	6–8 mm	20–120 m³/h	5.5 kW	1,750 kg	2673×2382×2027 mm
YK1235	1	4.2 m²	970 Hz	6–8 mm	20–150 m³/h	5.5 kW	1,729 kg	3710×2464×1450 mm
2YK1235	2	4.2 m²	970 Hz	6–8 mm	20–150 m³/h	7.5 kW	2,476 kg	3705×2393×2339 mm
3YK1235	3	4.2 m²	970 Hz	6–8 mm	20–150 m³/h	7.5 kW	3,158 kg	3621×2523×2581 mm
4YK1235	4	4.2 m²	970 Hz	6–8 mm	20–150 m³/h	11 kW	4,160 kg	3510×2521×2830 mm
YK1545	1	6.75 m²	970 Hz	6–8 mm	20–150 m³/h	11 kW	3,319 kg	4940×3044×2179 mm
2YK1545	2	6.75 m²	970 Hz	6–8 mm	20–150 m³/h	15 kW	5,308 kg	5042×3039×3165 mm
3YK1545	3	6.75 m²	970 Hz	6–8 mm	20–150 m³/h	15 kW	5,915 kg	4972×3039×3395 mm
4YK1545	4	6.75 m²	970 Hz	6–8 mm	20–150 m³/h	18.5 kW	7,260 kg	4915×3155×3804 mm
YK1548	1	7.2 m²	970 Hz	6–8 mm	20–150 m³/h	11 kW	3,319 kg	5190×3044×2186 mm
2YK1548	2	7.2 m²	970 Hz	6–8 mm	20–150 m³/h	15 kW	5,284 kg	5265×3140×3208 mm
3YK1548	3	7.2 m²	970 Hz	6–8 mm	20–150 m³/h	15 kW	6,186 kg	5200×3039×3440 mm
4YK1548	4	7.2 m²	970 Hz	6–8 mm	20–150 m³/h	18.5 kW	7,284 kg	5200×3155×3849 mm
YK1860	1	70.8 m²*	970 Hz	6–8 mm	32–350 m³/h	15 kW	4,651 kg	6302×3365×2992 mm
2YK1860	2	10.8 m²	970 Hz	6–8 mm	32–350 m³/h	18.5 kW	6,195 kg	6020×3455×3756 mm
3YK1860	3	10.8 m²	970 Hz	6–8 mm	32–350 m³/h	18.5 kW	7,631 kg	6020×3345×4180 mm
4YK1860	4	10.8 m²	970 Hz	6–8 mm	32–350 m³/h	22 kW	8,650 kg	5963×3505×4463 mm
YK2160	1	12.6 m²	970 Hz	6–8 mm	66–720 m³/h	18.5 kW	4,917 kg	6302×3730×2992 mm
2YK2160	2	12.6 m²	970 Hz	6–8 mm	66–720 m³/h	22 kW	6,586 kg	5966×3958×3975 mm
3YK2160	3	12.6 m²	970 Hz	6–8 mm	66–720 m³/h	30 kW	9,112 kg	5966×3958×4400 mm
4YK2160	4	12.6 m²	970 Hz	6–8 mm	66–720 m³/h	30 kW	11,405 kg	5966×3958×4780 mm
YK2460	1	14.4 m²	970 Hz	6–8 mm	75–750 m³/h	18.5 kW	5,243 kg	6302×4155×2992 mm
2YK2460	2	14.4 m²	970 Hz	6–8 mm	75–750 m³/h	30 kW	8,503 kg	6027×4308×3975 mm
3YK2460	3	14.4 m²	970 Hz	6–8 mm	75–750 m³/h	30 kW	10,411 kg	6027×4308×4400 mm
4YK2460	4	14.4 m²	970 Hz	6–8 mm	75–750 m³/h	30 kW	12,068 kg	5966×4308×4780 mm
2YK2475	2	18 m²	970 Hz	6–8 mm	120–900 m³/h	30 kW	19,709 kg	7812×4308×4642 mm
3YK2475	3	18 m²	970 Hz	6–8 mm	120–900 m³/h	37 kW	13,409 kg	7718×4393×5033 mm
4YK2475	4	18 m²	970 Hz	6–8 mm	120–900 m³/h	45 kW	15,500 kg	7718×4494×5361 mm
