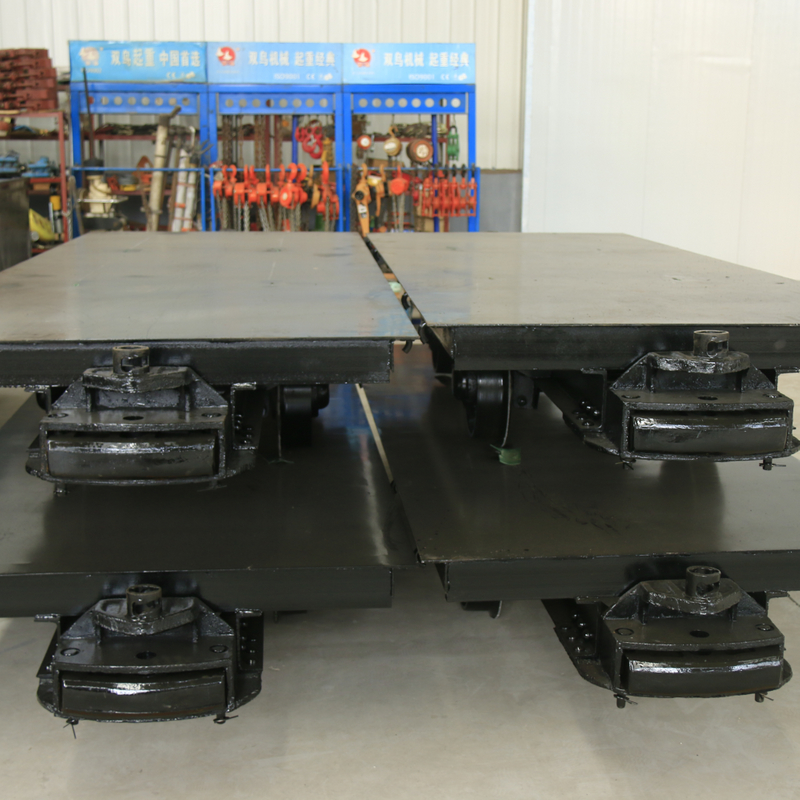

MPC3-6 Tunnel Rail Flat Deck Mine Car

ABOUT US
Flatbed vehicles are vehicles used to transport pit wood, brackets or other materials by narrow-gauge railways on the ground and underground tunnels of coal mines. It is suitable for underground mining mines to transport equipment or other items along underground tunnels and surface industrial sites.
  • Wide Range Of Applications

  • Safety And Environmental Protection

Availability:
Quantity:

Product Description

_NG46IM7FHSM7J0SRQYYOU

Flatbed cars are vehicles used to transport pit wood, brackets or other materials by narrow-gauge railways on the ground and underground tunnels of coal mines. It is suitable for underground mining mines to transport equipment or other items along underground tunnels and surface industrial sites.

N1VN9Q3G0_`%0%OIMF`PQ

平板车10

The mining flat car mainly consists of frame, buffer, wheel set (open wheel set, closed wheel set), connecting device, etc. The colliding force and rail impact force between the mining trucks are composed of channel steel, bump seat, axle clamp, etc. It is a transportation equipment that saves a lot of manpower, material resources and financial resources. The mining flatbed truck is mainly used to transport various overall mining materials, electromechanical equipment, engineering materials, etc. Simple structure, easy maintenance, large bearing capacity, low center of gravity, and wide use. It is applicable to underground mining mines, and transportation of various or other items along underground roadways and surface industrial sites.

The mining flat car solves the problem that the longer flat car can not directly turn in the roadway, and is suitable for the transportation of narrow roadway in each mine. In order to meet the transportation requirements of equipment trains used in coal mines, the solution method of main technical parameters in the overall design stage of flat cars is preliminarily determined. The modified single row centripetal ball shaft is flexible, which can still be used normally under the circumstances of very bad environment, poor roads and serious dust, greatly extending the service life of the bearings of the mining flat car; The main bearing structure is reasonable and simple, and the cost is low. It is suitable for small tonnage mining transportation.

Features of mining flat car products

1. The frame is of metal structure, which can withstand traction, braking force, collision force between tramcars and rail impact force.

2. The fixed series tramcar is simple in structure and durable in itself, with small resistance coefficient, large bearing capacity, convenient maintenance and many advantages.

3. The whole vehicle adopts riveting structure, which reduces the impact of stress on the mining car and increases the service life of the flat car

4. The tramcar runs smoothly on both curves and straight roads.

The mining flat car is mainly composed of frame, buffer, wheel set (open wheel set, closed wheel set), connecting device, etc. It is mainly applicable to underground mining, transportation equipment or other items along underground tunnels and surface industrial sites, and is one of the indispensable transportation equipment in current mining construction equipment. The mining flatbed truck has no power and needs to be towed by a tractor or forklift. Usually, one or more flat trucks and a forklift or tractor form a vehicle to carry out the plane transportation of goods or the handling of large equipment.

平板车11

平板车3

The mining flatbed truck is mainly used for underground mining and transportation of equipment and goods along the underground rail. At present, it is mainly used for conveying mining shearers or large hydraulic supports and other large mining equipment. The utility model has the advantages of simple structure, easy manufacture, durability, convenient maintenance, etc.

The mining flatbed truck has no power and needs to be towed by a tractor or forklift. Usually, one or more flat cars and a second car or tractor form a vehicle to carry out the plane transportation of goods or the handling of large equipment.

The mining flatbed truck has low cost and is suitable for small tonnage mining transportation. The simple flat car for mining uses a modified single row radial ball bearing, which can still be used normally in the case of very bad environment, uneven roads and serious dust, greatly extending the service life of the bearings for the flat car for mining. Generally, the mining flatbed truck adopts pneumatic solid tires, with low floor height, large loading capacity, and no risk of tire breakage or burst. The mining flat car is also widely used in airports, ports, railway stations, factories and large warehouses, which greatly improves the efficiency of cargo transfer and translation, and reduces the cost of re vehicle and manpower consumption.

Product Parameters

_NG46IM7FHSM7J0SRQYYOU

Model

loading (kg)

Length

(mm)

Weight

(mm)

Height

(mm)

Rail gauge

(mm)

Wheel Dia.(mm)

Pulling Height(mm)

Weight (kg)

MPC2-6

2000

2000

880

410

600

300

320

490

MPC3-6

3000

2400

1050

415

600

300

320

530

MPC5-6

5000

3450

1200

480

600

350

320

900

MPC5-9

5000

3450

1320

480

900

350

320

910

MPC10-6

10000

3460

1300

304

600

250

230

910

MPC10-9

10000

3460

1300

304

900

250

230

1030

MPC13-6

13000

3350

1400

342

600

300

270

1015

MPC15-6

15000

3460

1300

357

600

300

320

1160

MPC15-9

15000

3460

1300

357

900

300

320

1240

MPC18-6

18000

3350

1400

346

600

300

270

1132

MPC20-6

20000

3460

1300

364

600

300

320

1240

MPC20-9

20000

3460

1300

364

900

300

320

1320

MPC25-6

25000

3460

1300

390

600

350

320

1750

MPC25-9

25000

3460

1300

390

900

350

320

1800

MPC26-6

26000

2400

1462

390

600

240

280

1133

MPC30-6

30000

3460

1300

400

600

350

320

1700

MPC30-9

30000

3460

1300

400

900

350

320

1900
