MPC5-6 Flat Deck Mine Car
ABOUT US
Flatbed vehicles are vehicles used to transport pit wood, brackets or other materials by narrow-gauge railways on the ground and underground tunnels of coal mines. It is suitable for underground mining mines to transport equipment or other items along underground tunnels and surface industrial sites.
-
MPC5-6
-
China Coal Group
-
Underground Explosion-proof
-
Safety And Environmental Protection
| Quantity: | |
|---|---|
Product Description
Flatbed cars are vehicles used to transport pit wood, brackets or other materials by narrow-gauge railways on the ground and underground tunnels of coal mines. It is suitable for underground mining mines to transport equipment or other items along underground tunnels and surface industrial sites.
The mining flatbed truck is mainly used for underground mining and transportation of equipment and goods along the underground rail. At present, it is mainly used for conveying mining shearers or large hydraulic supports and other large mining equipment. The utility model has the advantages of simple structure, easy manufacture, durability, convenient maintenance, etc.
The mining flatbed truck has no power and needs to be towed by a tractor or forklift. Usually, one or more flat cars and a second car or tractor form a vehicle to carry out the plane transportation of goods or the handling of large equipment.
The mining flatbed truck has low cost and is suitable for small tonnage mining transportation. The simple flat car for mining uses a modified single row radial ball bearing, which can still be used normally in the case of very bad environment, uneven roads and serious dust, greatly extending the service life of the bearings for the flat car for mining. Generally, the mining flatbed truck adopts pneumatic solid tires, with low floor height, large loading capacity, and no risk of tire breakage or burst. The mining flat car is also widely used in airports, ports, railway stations, factories and large warehouses, which greatly improves the efficiency of cargo transfer and translation, and reduces the cost of re vehicle and manpower consumption.

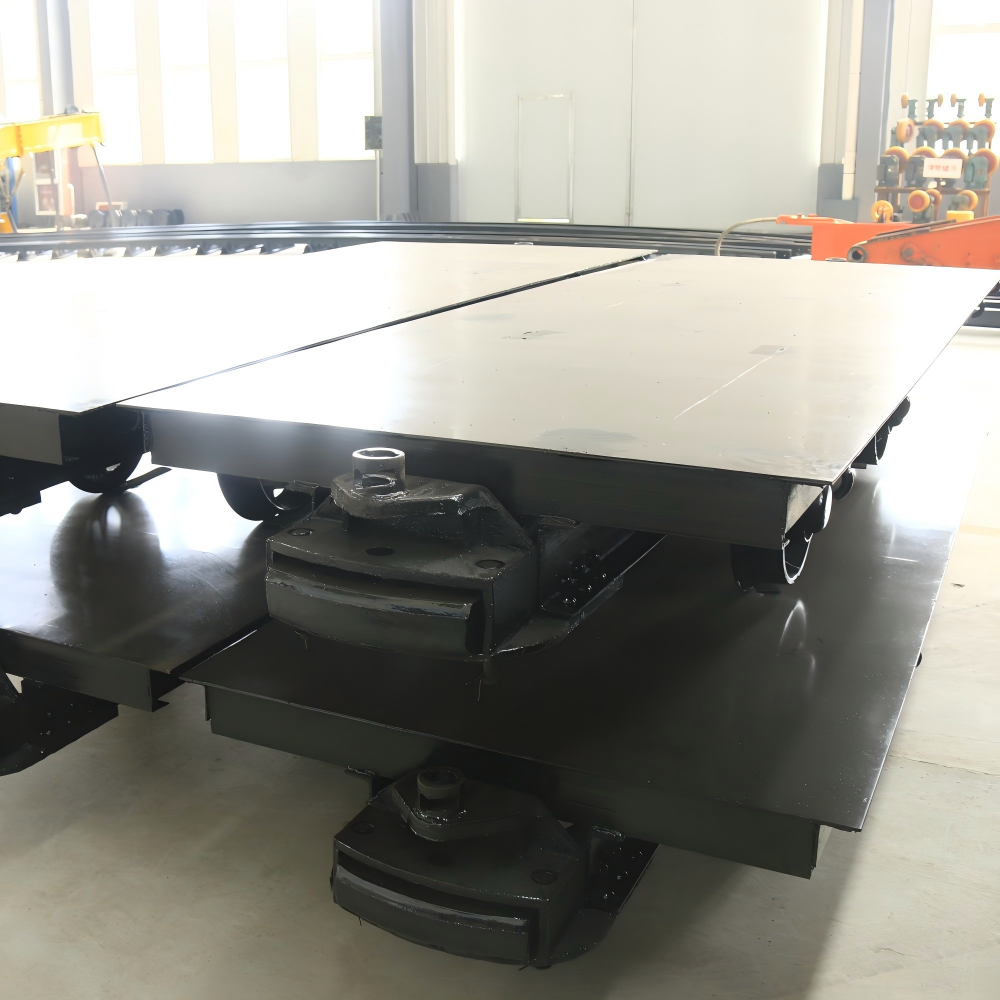

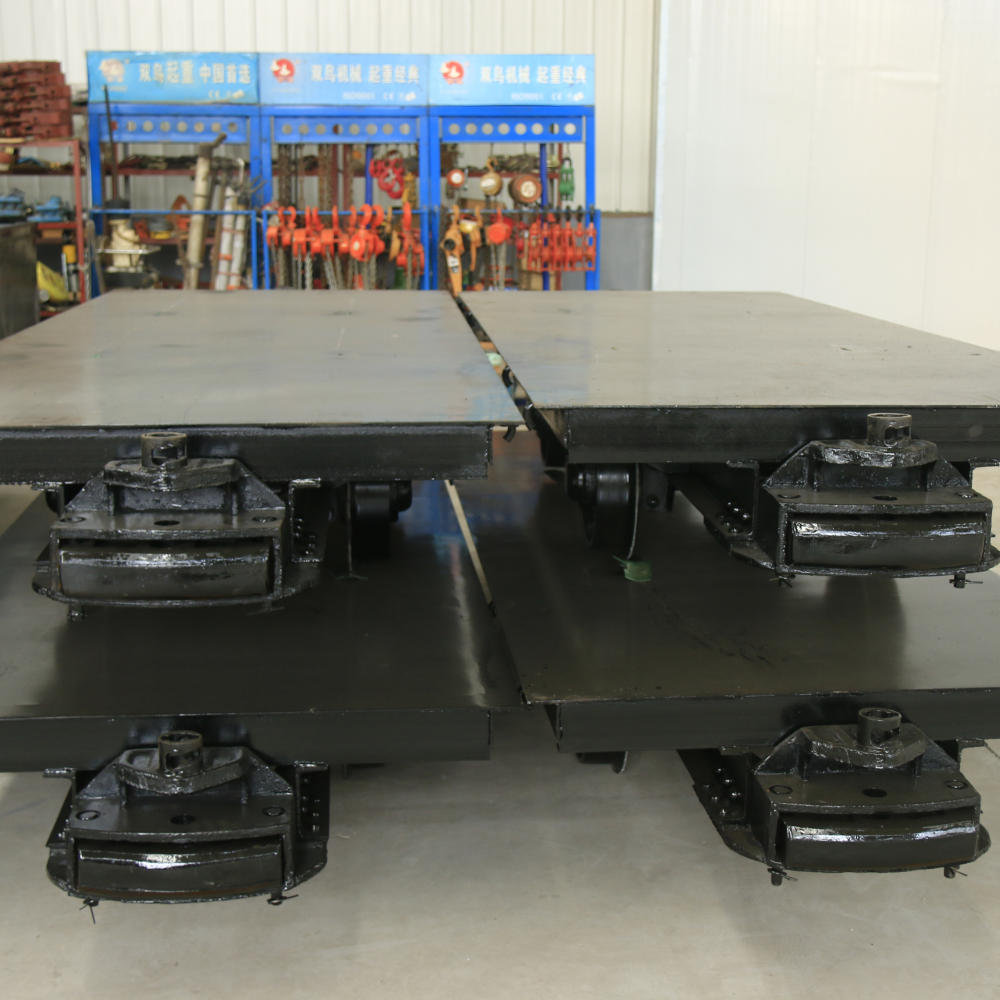

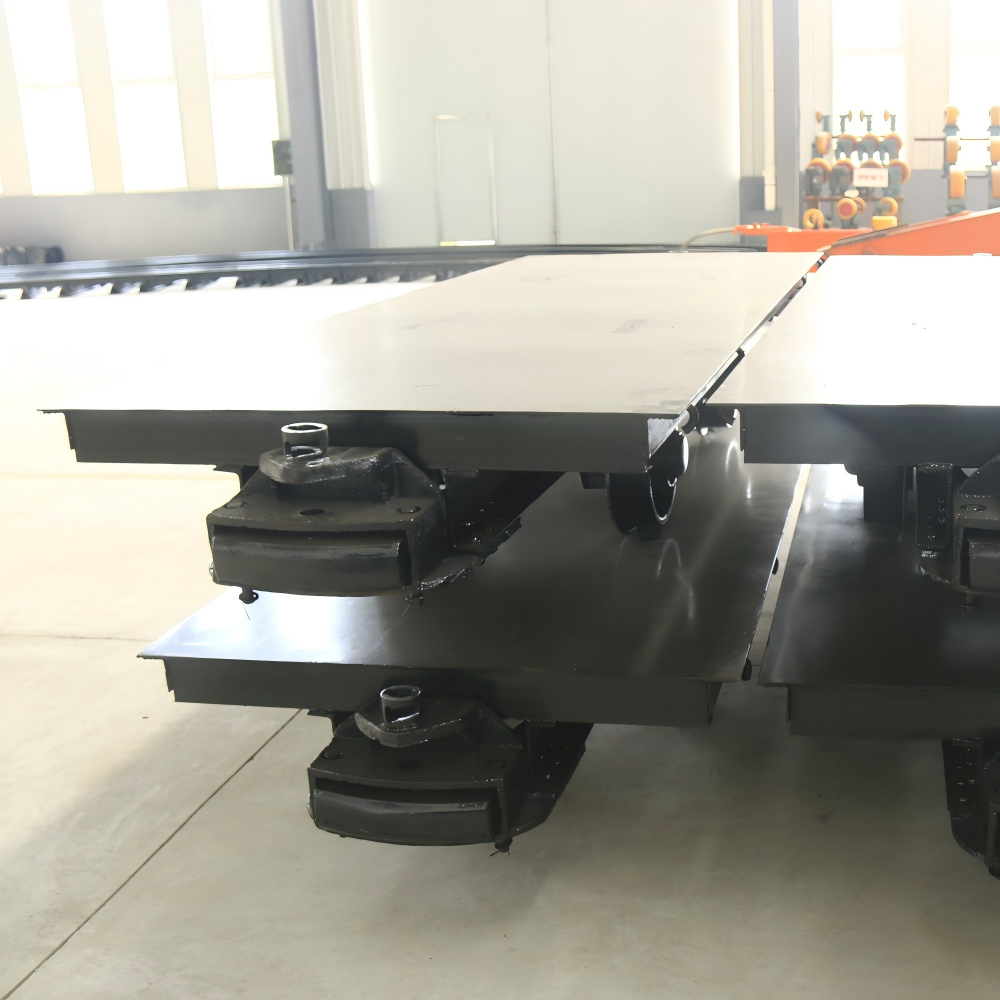

The mining flat car mainly consists of frame, buffer, wheel set (open wheel set, closed wheel set), connecting device, etc. The colliding force and rail impact force between the mining trucks are composed of channel steel, bump seat, axle clamp, etc. It is a transportation equipment that saves a lot of manpower, material resources and financial resources. The mining flatbed truck is mainly used to transport various overall mining materials, electromechanical equipment, engineering materials, etc. Simple structure, easy maintenance, large bearing capacity, low center of gravity, and wide use. It is applicable to underground mining mines, and transportation of various or other items along underground roadways and surface industrial sites.
The mining flat car solves the problem that the longer flat car can not directly turn in the roadway, and is suitable for the transportation of narrow roadway in each mine. In order to meet the transportation requirements of equipment trains used in coal mines, the solution method of main technical parameters in the overall design stage of flat cars is preliminarily determined. The modified single row centripetal ball shaft is flexible, which can still be used normally under the circumstances of very bad environment, poor roads and serious dust, greatly extending the service life of the bearings of the mining flat car; The main bearing structure is reasonable and simple, and the cost is low. It is suitable for small tonnage mining transportation.
Features of mining flat car products

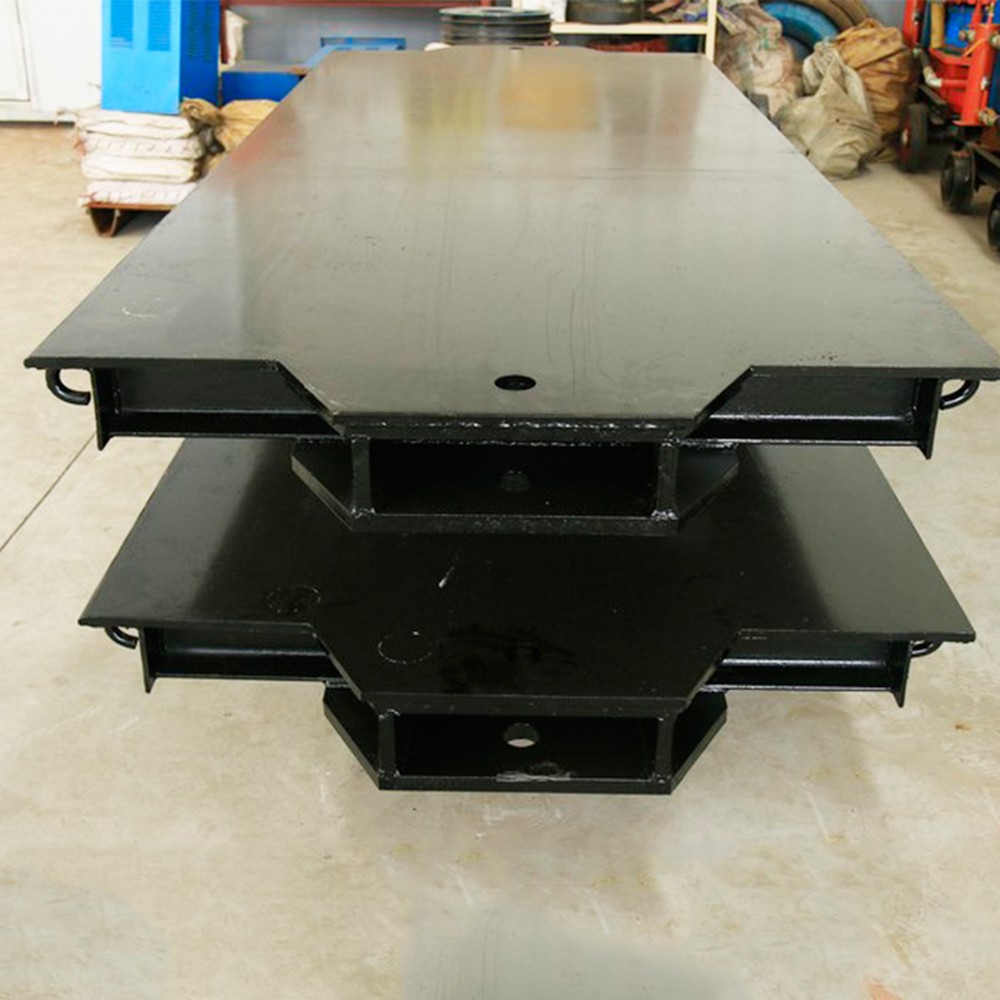

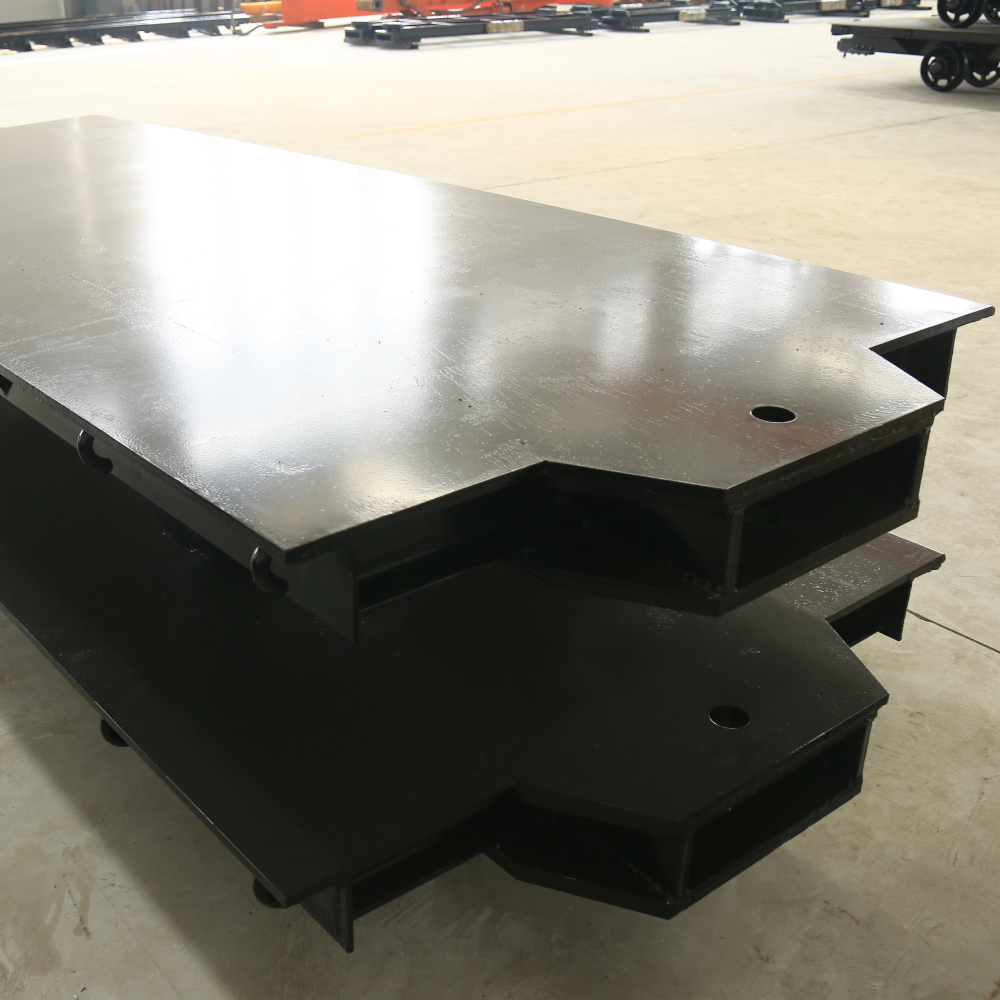

1. The frame is of metal structure, which can withstand traction, braking force, collision force between tramcars and rail impact force.
2. The fixed series tramcar is simple in structure and durable in itself, with small resistance coefficient, large bearing capacity, convenient maintenance and many advantages.
3. The whole vehicle adopts riveting structure, which reduces the impact of stress on the mining car and increases the service life of the flat car
4. The tramcar runs smoothly on both curves and straight roads.

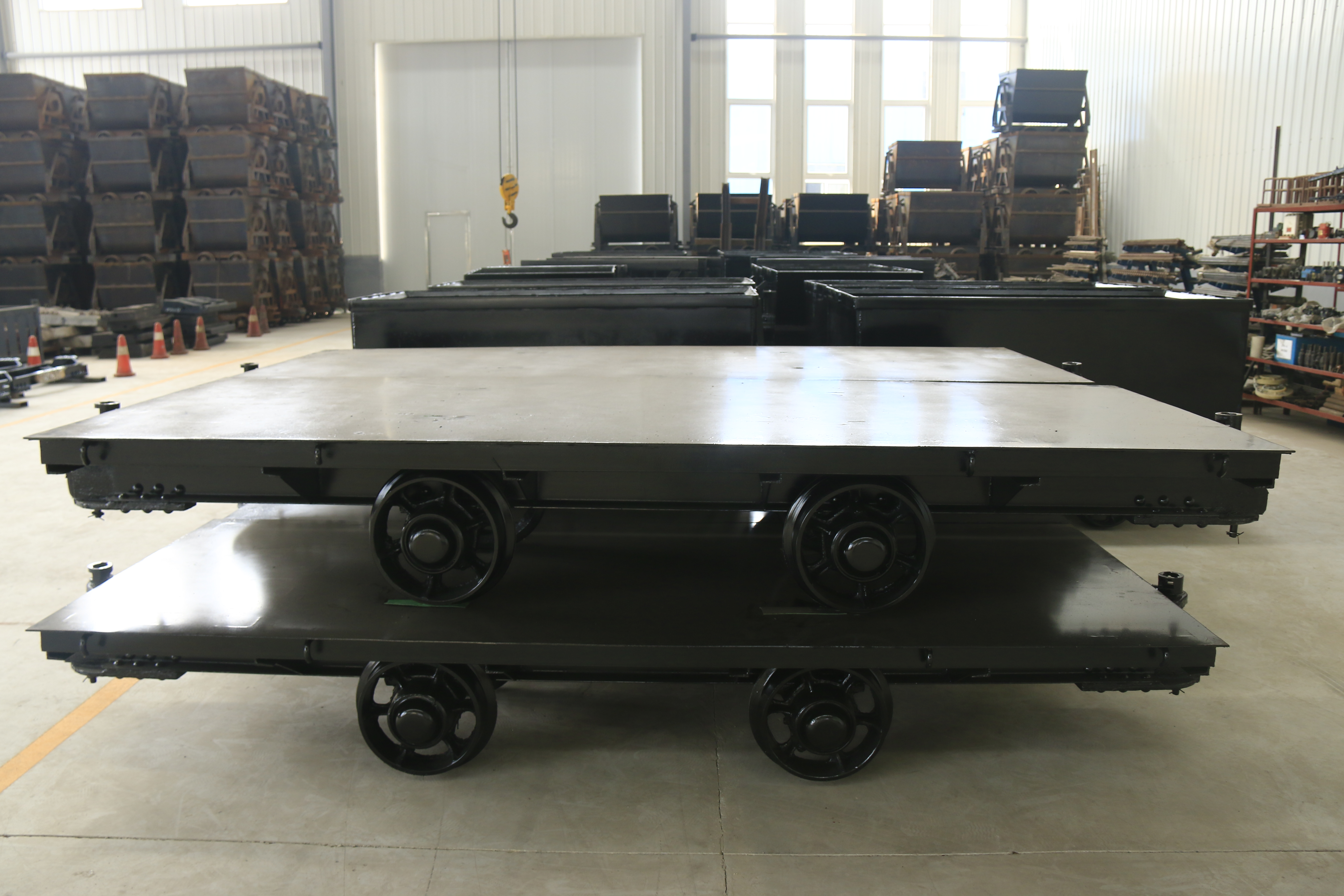

The mining flat car is mainly composed of frame, buffer, wheel set (open wheel set, closed wheel set), connecting device, etc. It is mainly applicable to underground mining, transportation equipment or other items along underground tunnels and surface industrial sites, and is one of the indispensable transportation equipment in current mining construction equipment. The mining flatbed truck has no power and needs to be towed by a tractor or forklift. Usually, one or more flat trucks and a forklift or tractor form a vehicle to carry out the plane transportation of goods or the handling of large equipment.
Product Parameters
| Model | Load(T) | Gauge (mm) | Wheel Base(mm) | Wheel Diameter(mm) | Traction Force(KN) | Traction Height(mm) | Overall size (L*W*H)(mm) | Weight (≦kg) |
| MPC2-6 | 2 | 600 | 550 | 300 | 60 | 320 | 2000*880*410 | 490 |
| MPC3-6 | 3 | 600 | 750 | 300 | 60 | 320 | 2400*1050*415 | 530 |
| MPC5-6 | 5 | 600 | 1100 | 350 | 60 | 320 | 3450*1200*480 | 900 |
| MPC5-9 | 5 | 900 | 1100 | 350 | 60 | 320 | 3450*1320*480 | 910 |
| MPC10-6 | 10 | 600 | 1100 | 250 | 60 | 230 | 3460*1300*304 | 1010 |
| MPC10-9 | 10 | 600 | 1100 | 250 | 60 | 230 | 3460*1300*304 | 1030 |
| MPC13-6 | 13 | 600 | 1100 | 300 | 60 | 270 | 3350*1400*342 | 1015 |
| MPC15-6 | 15 | 600 | 1100 | 300 | 90 | 320 | 3460*1300*357 | 1160 |
| MPC15-9 | 15 | 900 | 1100 | 300 | 90 | 320 | 3460*1300*357 | 1240 |
