Mining Personnel Transport Vehicle Trackless Man Carrier
The Trackless Personnel Carrier is designed for transporting miners and underground workers in mining operations. Its trackless design provides flexible mobility in underground mine roadways without the need for fixed rails. Depending on the model, the vehicle can be configured with different passenger capacities, power systems, and safety features to meet specific mine transportation requirements. It is suitable for mining companies seeking reliable personnel transportation solutions for underground operations.
-
Trackless Man Carrier
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Mining Personnel Transport Vehicle Trackless Man Carrier Introduction
The Trackless Personnel Carrier is designed for transporting miners and underground workers in mining operations. Its trackless design provides flexible mobility in underground mine roadways without the need for fixed rails. Depending on the model, the vehicle can be configured with different passenger capacities, power systems, and safety features to meet specific mine transportation requirements. It is suitable for mining companies seeking reliable personnel transportation solutions for underground operations.
Product Parameters
Mining Personnel Transport Vehicle Trackless Man Carrier Parameters
| Project | Trackless Man Carrier | ||||
| Model | WCJS12RE | WC8RE | WC18RE | WC10R | WC19R |
| Dimensions(mm) | 5900×1400×2130 | 5300×1960×2050 | 6280x1960x2050 | 5300×2000×2000 | 6200×2000×1980 |
| Curb weight (kg) | 5800 | 5800 | 6100 | ||
| Rated capacity (person) | 12 | 8 | 18 | 10 | 19 |
| Engine power (kw) | 70 | 73 | 73 | 72 | 72 |
| Maximum speed(km/h) | 25 | 36 | 36 | ||
| Maximum Traction Force (KN) | 45 | 55 | 55 | ||
| Start-up form | Electric start | Electric start | Electric start | Electric start | Electric start |
| Service brake mode | Hydraulic brakes Wet brakes | Hydraulic brakes Wet brakes | Hydraulic brakes Wet brakes | Hydraulic brakes Wet brakes | Hydraulic brakes Wet brakes |
| Minimum ground clearance (mm) | 250 | 280 | 280 | 185 | 185 |
| Gradeability( °） | ≥14 | ≥20 | ≥20 | 14° | 14° |
| Minimum Inner Turning Radius (mm) | 3200 | 4000 | 4000 | ||
| Minimum Outer Turning Radius (mm) | 4900 | 7600 | 7600 | ||
| Transmission mode | Hydromechanical transmission | Hydromechanical transmission | Hydromechanical transmission | Hydromechanical transmission | Hydromechanical transmission |
| Drive mode | four-wheel drive | four-wheel drive | four-wheel drive | Rear-wheel drive | Rear-wheel drive |
| Form of protection | Electrical protection | Electrical protection | Electrical protection | Electrical protection | Electrical protection |
| Parking/emergency braking mode | Spring-loaded brake Hydraulic release | Spring-loaded brake Hydraulic release | Spring-loaded brake Hydraulic release | Spring-loaded brake Hydraulic release | Spring-loaded brake Hydraulic release |

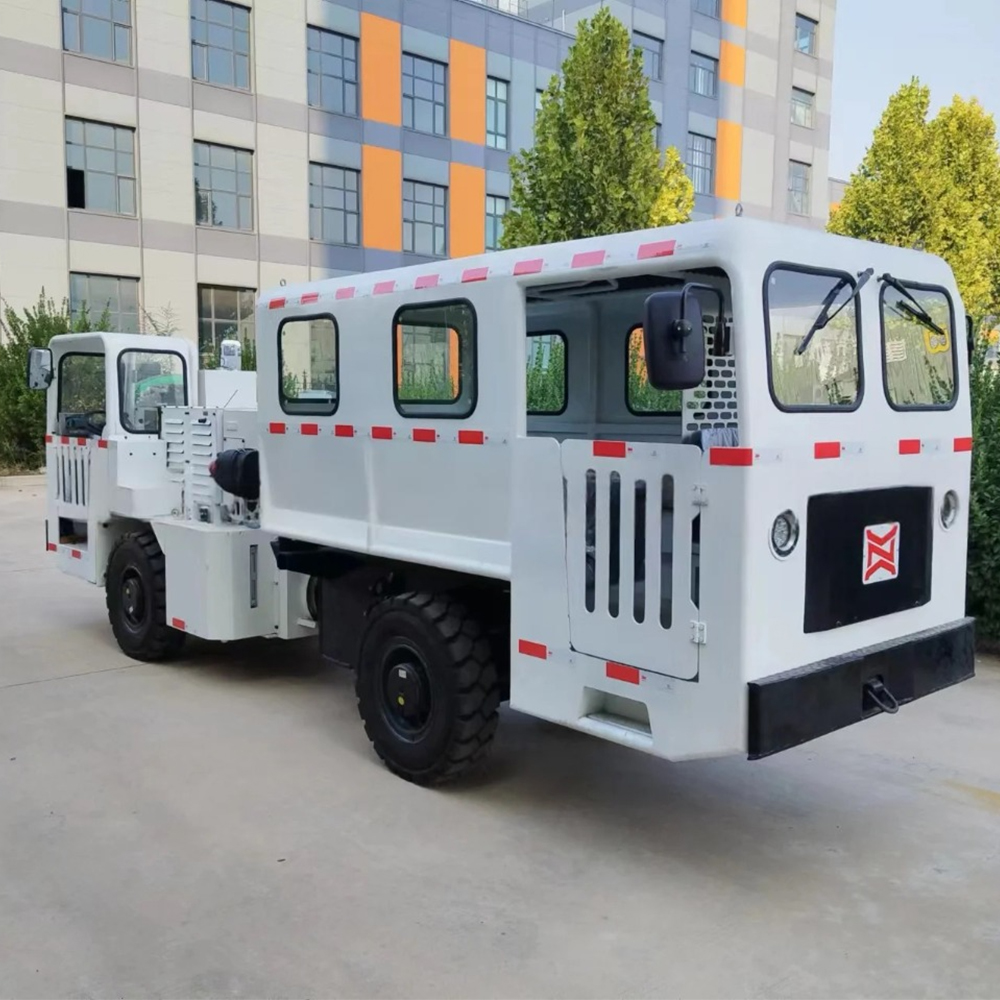

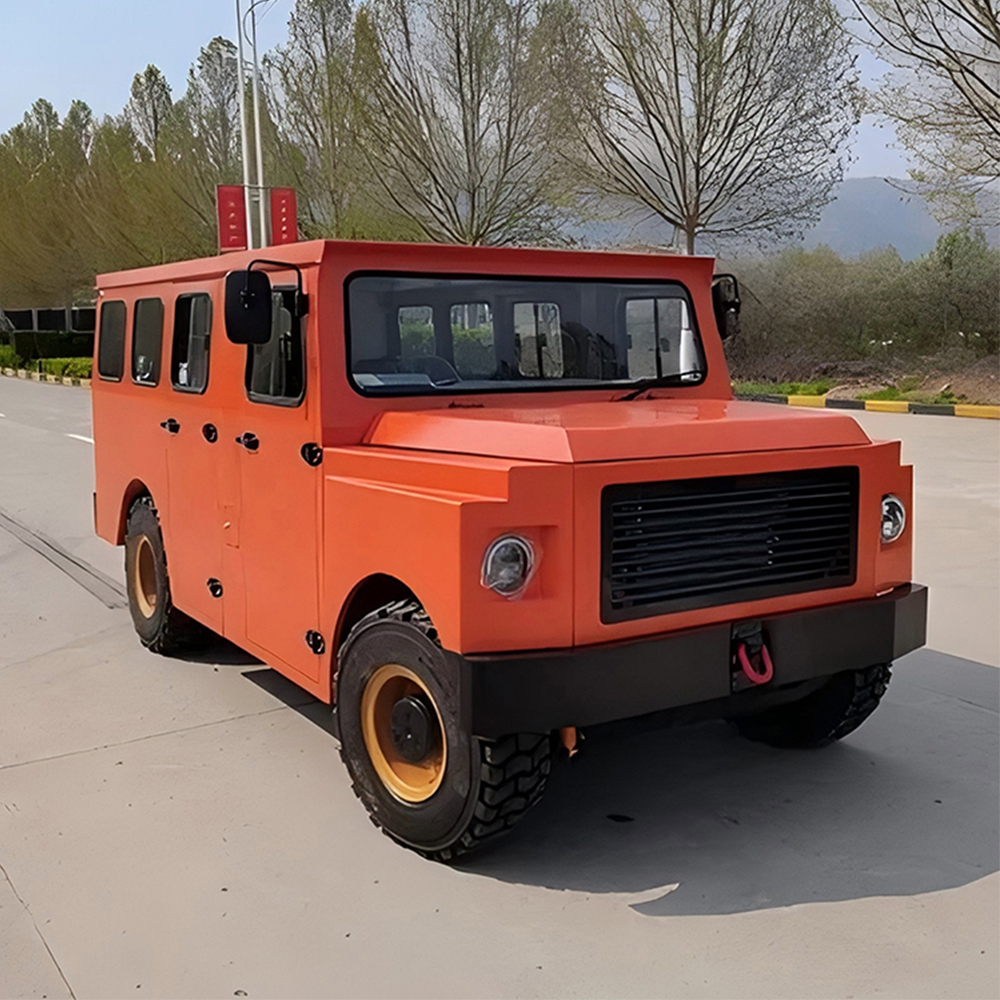

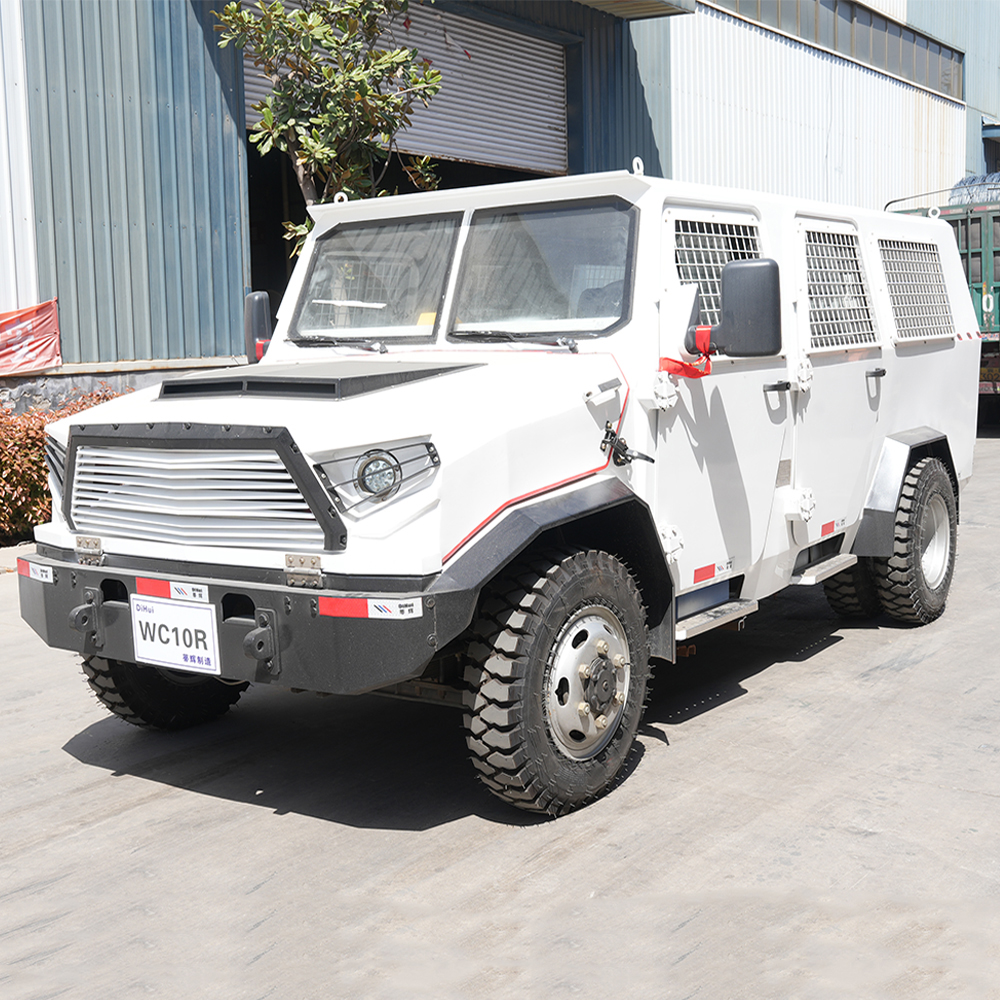

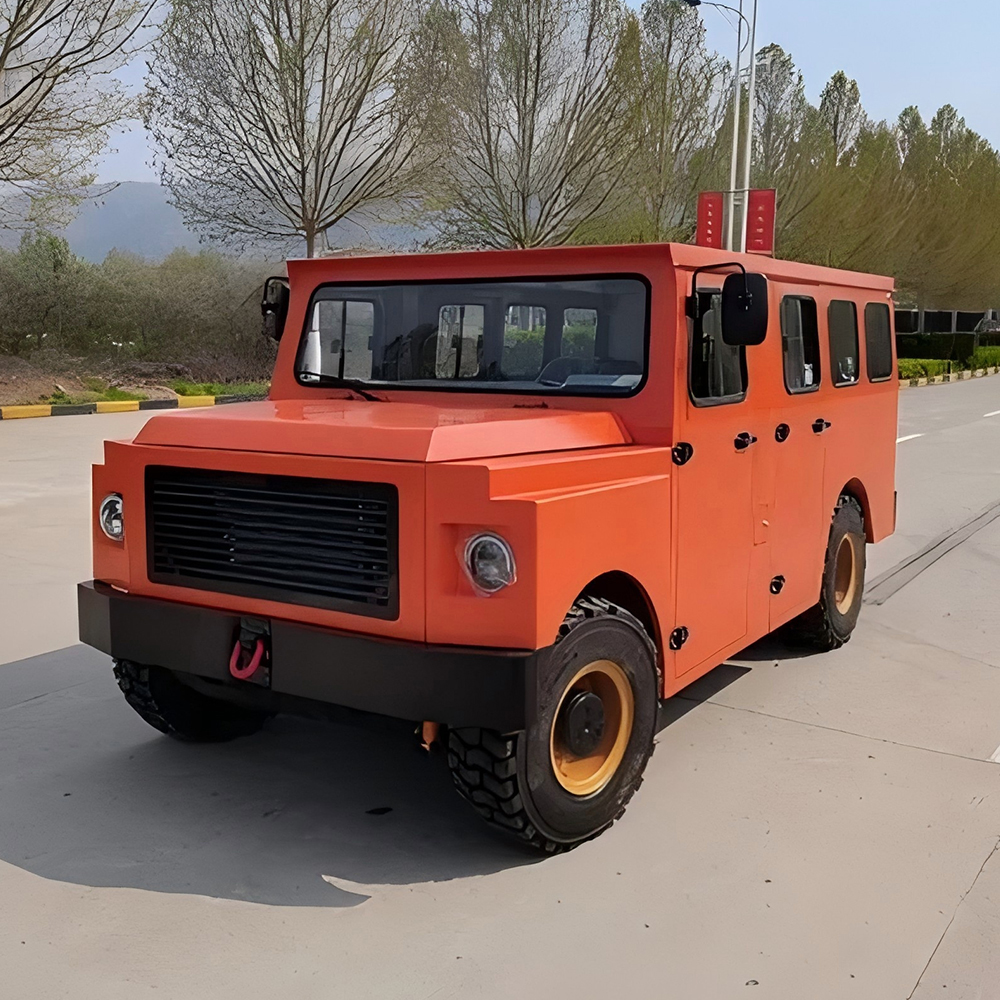

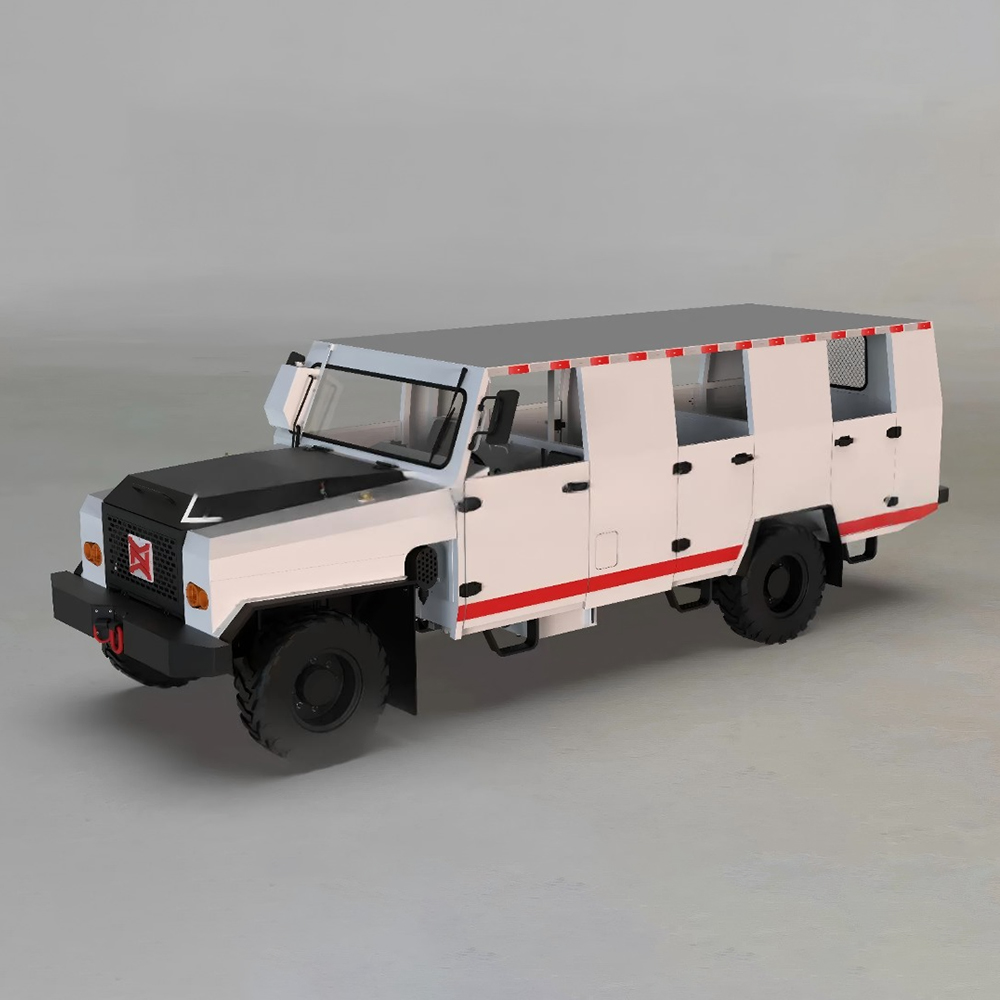

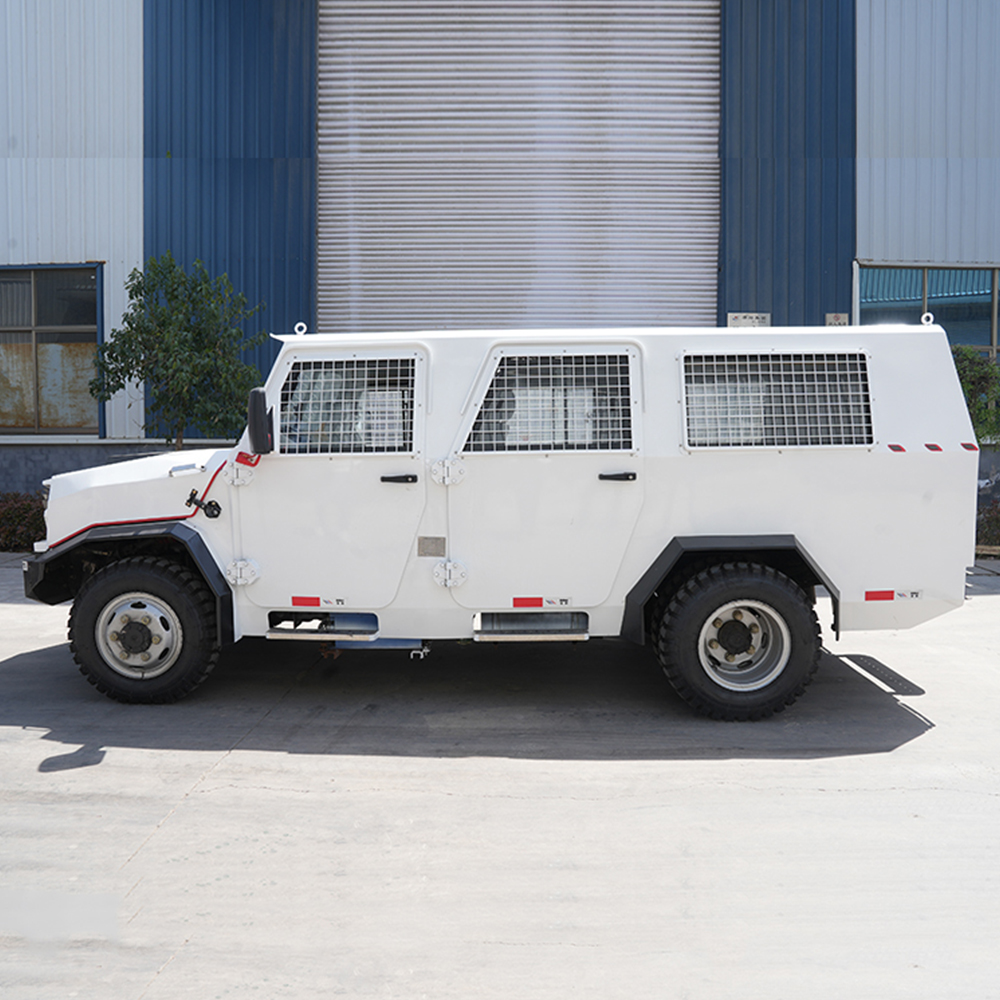

Photos
Mining Personnel Transport Vehicle Trackless Man Carrier Photos
