Mining Portable Mobile Substation
The mobile substation consists of three parts: high voltage distribution switch for flame proof intelligent mobile substation for mine, dry type transformer for flame proof mobile substation for mine, and intelligent low voltage protection box for flame proof mobile substation for mine.
-
Mobile Substation
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Mining Portable Mobile Substation Introduction
The mobile substation consists of three parts: high voltage distribution switch for flame proof intelligent mobile substation for mine, dry type transformer for flame proof mobile substation for mine, and intelligent low voltage protection box for flame proof mobile substation for mine.
Product Parameters
Mining Portable Mobile Substation Parameters
Item | KBSGZY 2000KVA | KBSGZY 1600KVA |
Voltage Ratio | 10 (6)/0.4KV | 10 (6)/0.4KV |
Connection Group | YYO (D11) DYN11 | YYO (D11) DYN11 |
Tap Range | ±5% | ±5% |
Impedance Voltage | 5.00% | 5.00% |
No load Current | 0.70% | 1.00% |
No load Loss | 4500W | 3800W |
Load Loss | 9700W | 8500W |
Total Weight | 11900KG | 9300KG |
Overall Dimensions | 4665×1250×1900MM | 4640×1245×1830MM |
Product Photos

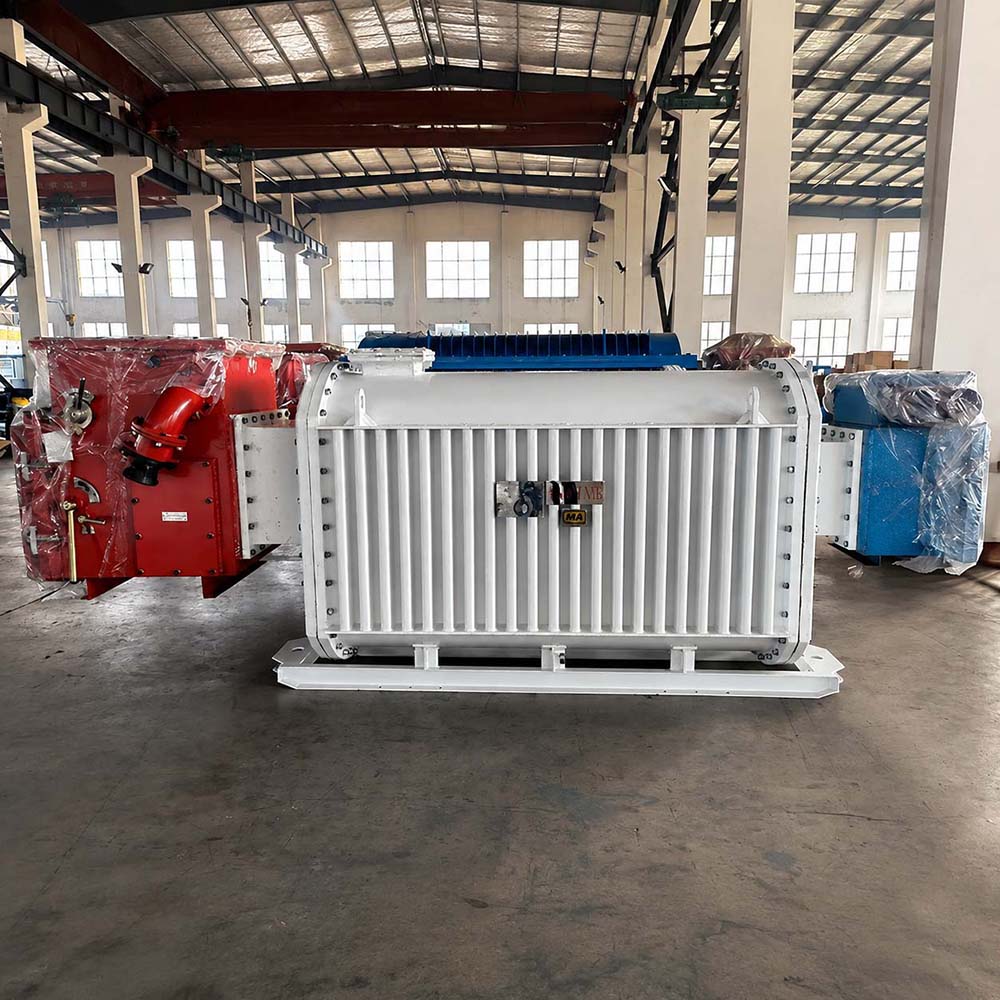

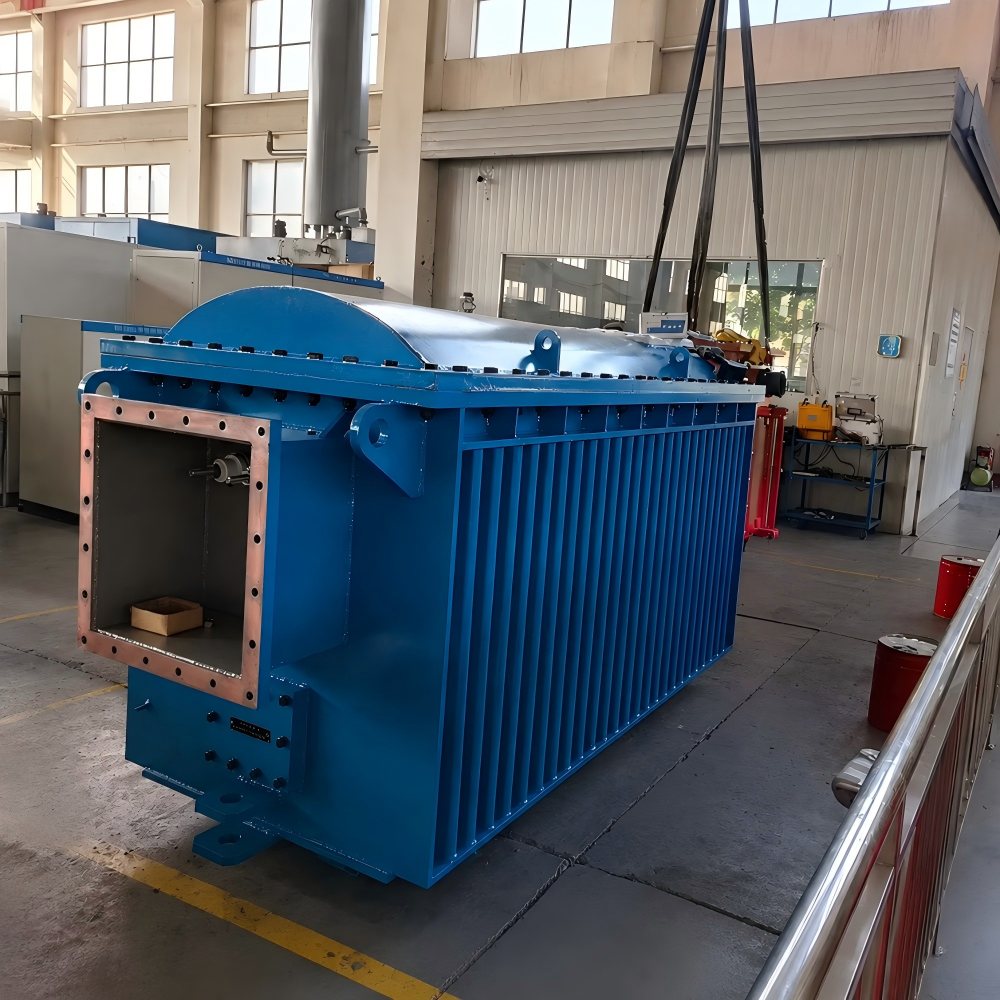

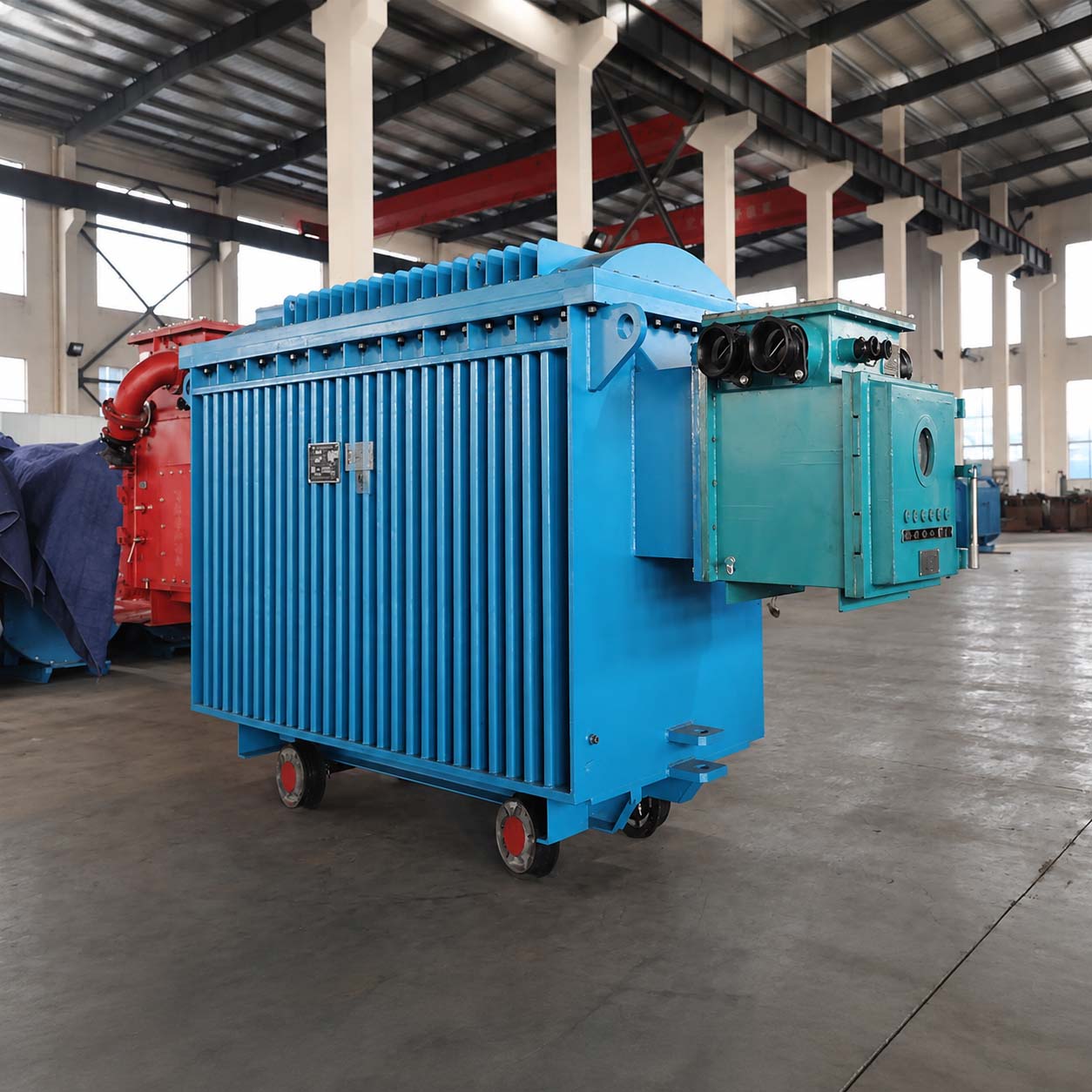

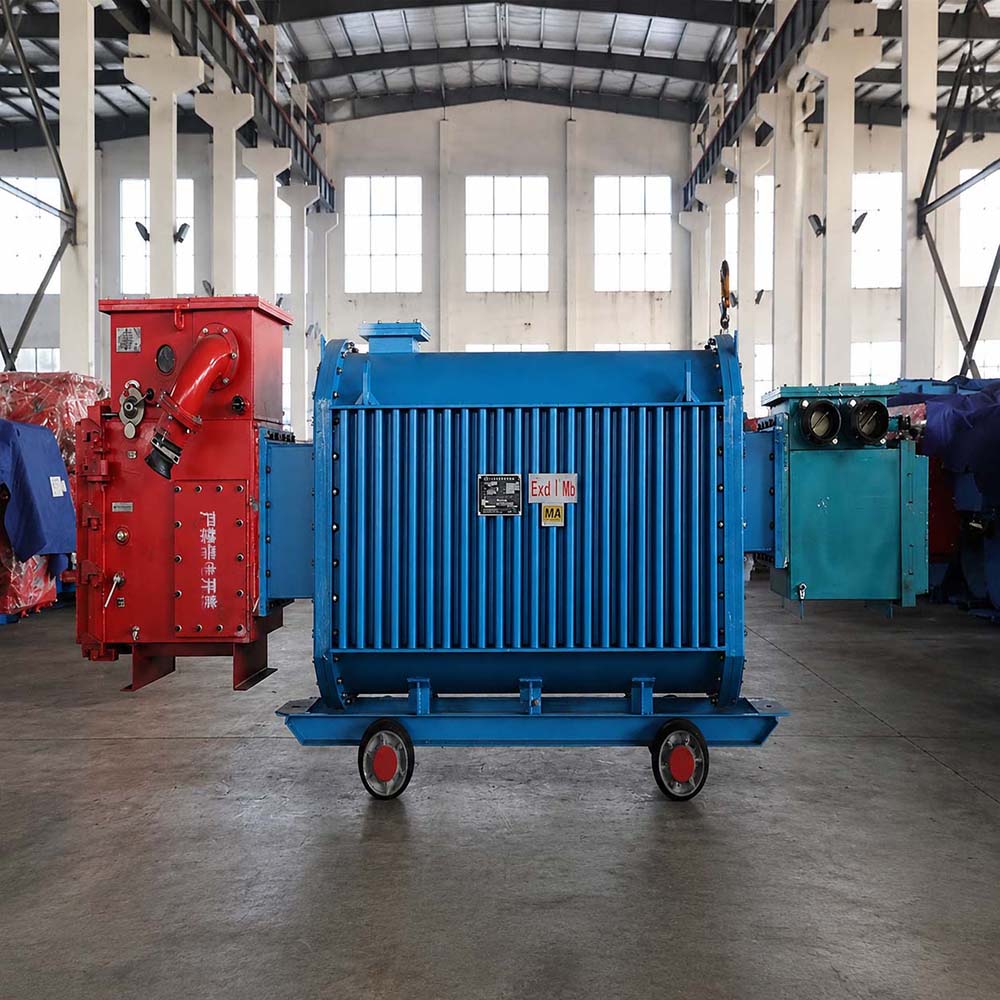

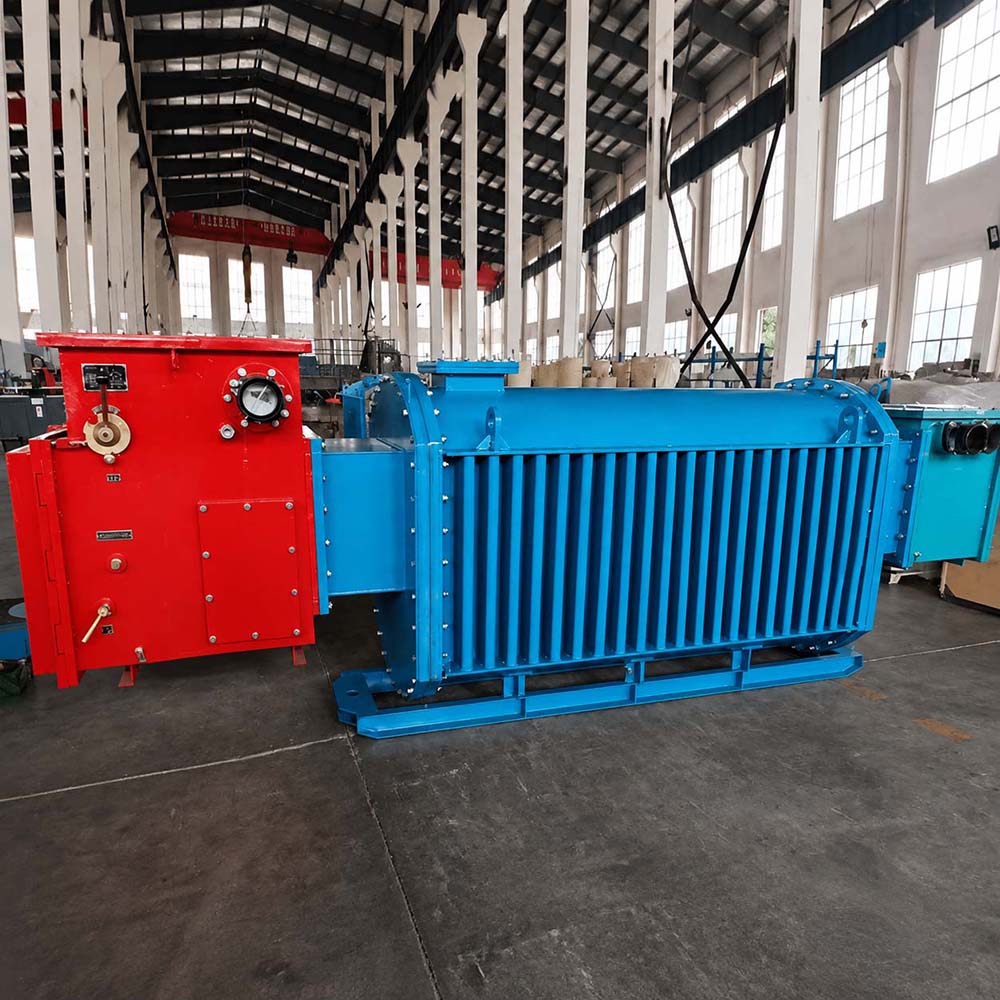

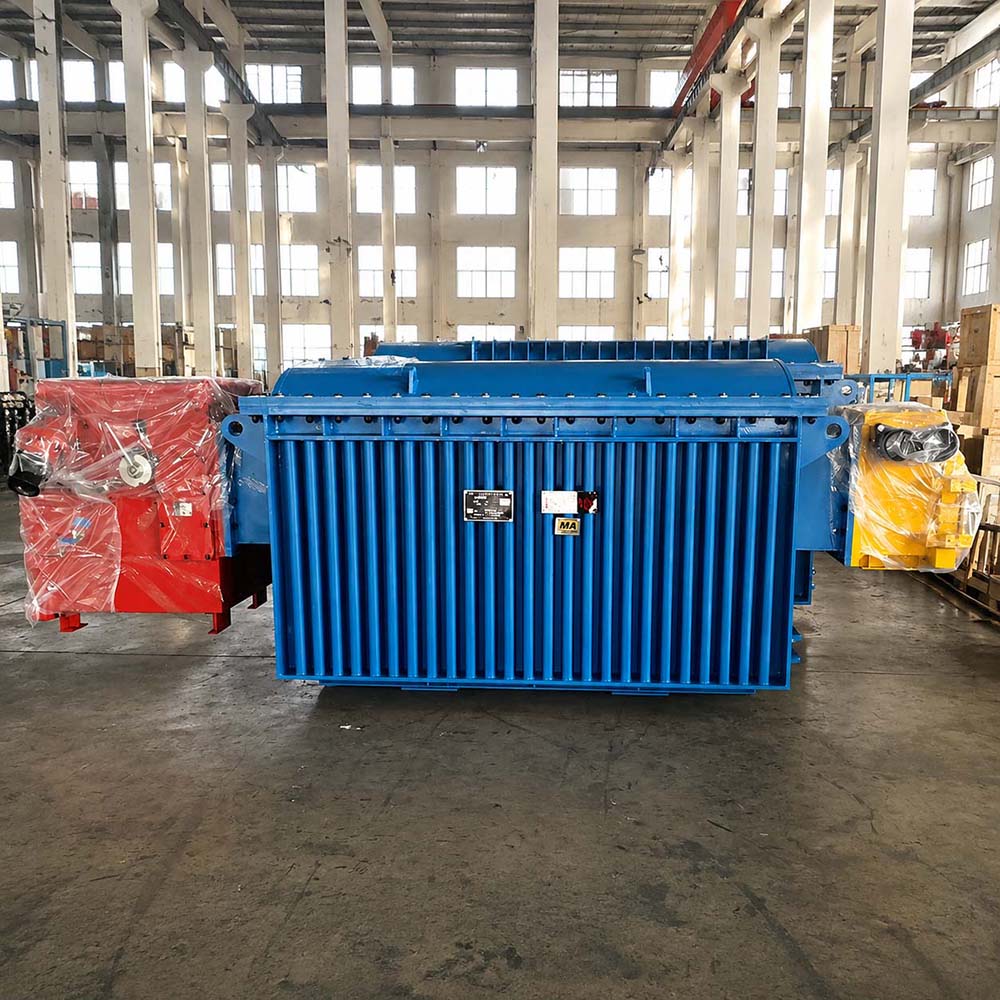

Mining Portable Mobile Substation Photos
