RCYD Series Permanent Magnet Self-unloading Iron Remover

RCYD series permanent magnet self-unloading iron remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller and other parts, and is used with various conveyors. Used to automatically remove 0.1-25 kg of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

Model:
Electromagnetic Iron Remover
Brand:
China Coal Group

Quantity:
Availability:





Inquire Add to Basket

Product Description

RCYD Series Permanent Magnet Self-unloading Iron Remover Introduction

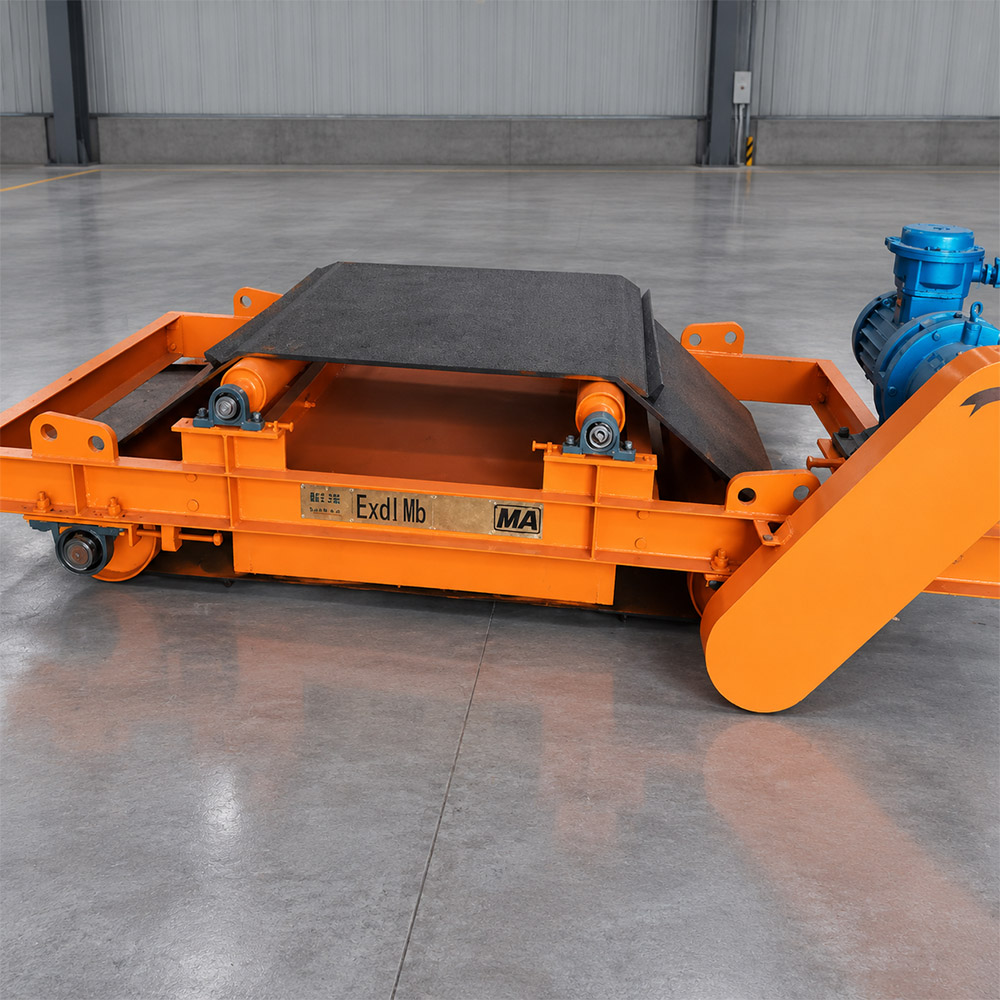

RCYD series permanent magnet self-unloading iron remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller and other parts, and is used with various conveyors. Used to automatically remove 0.1-25 kg of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

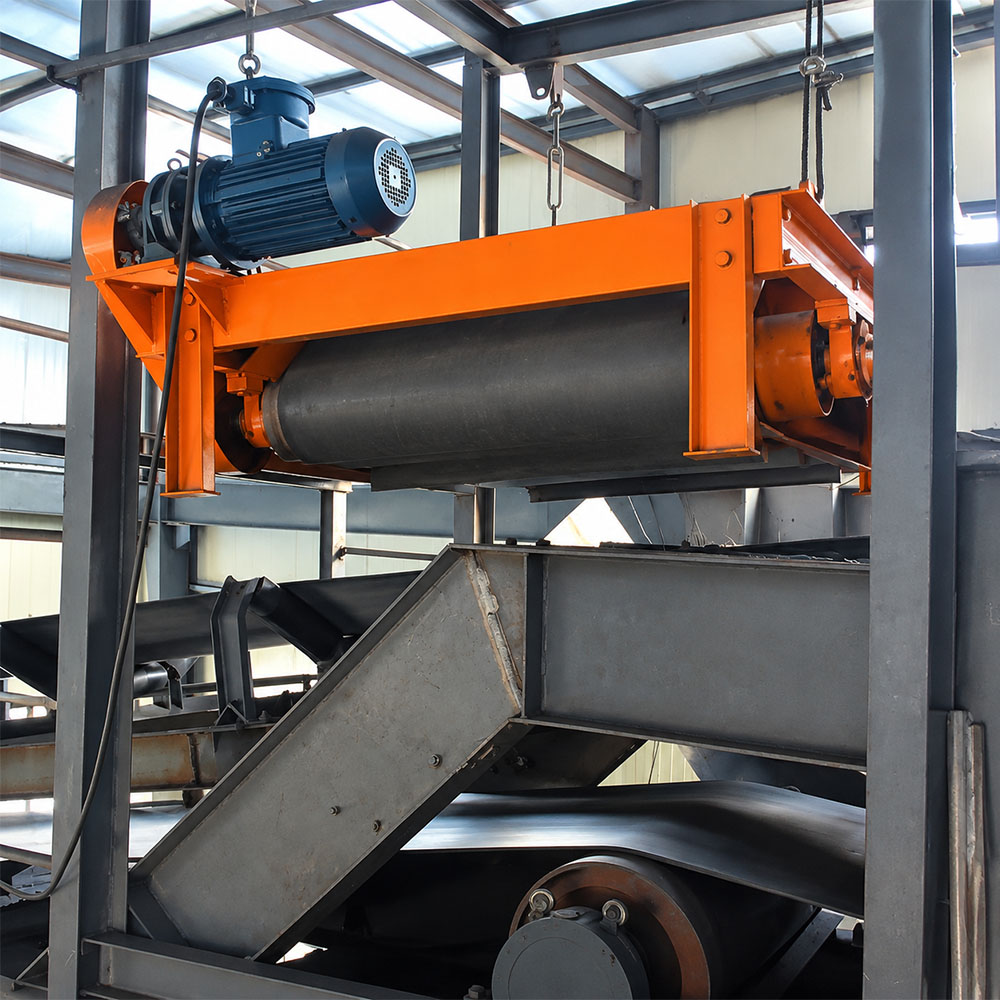

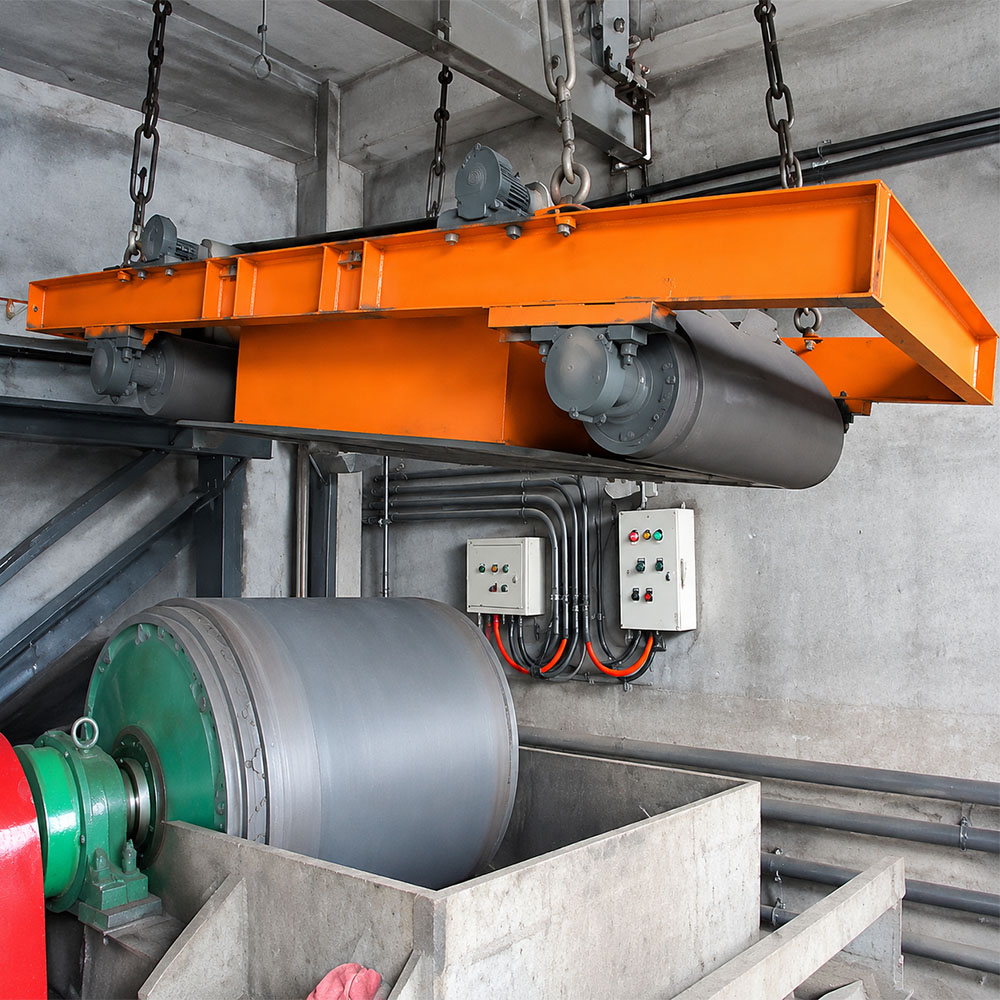

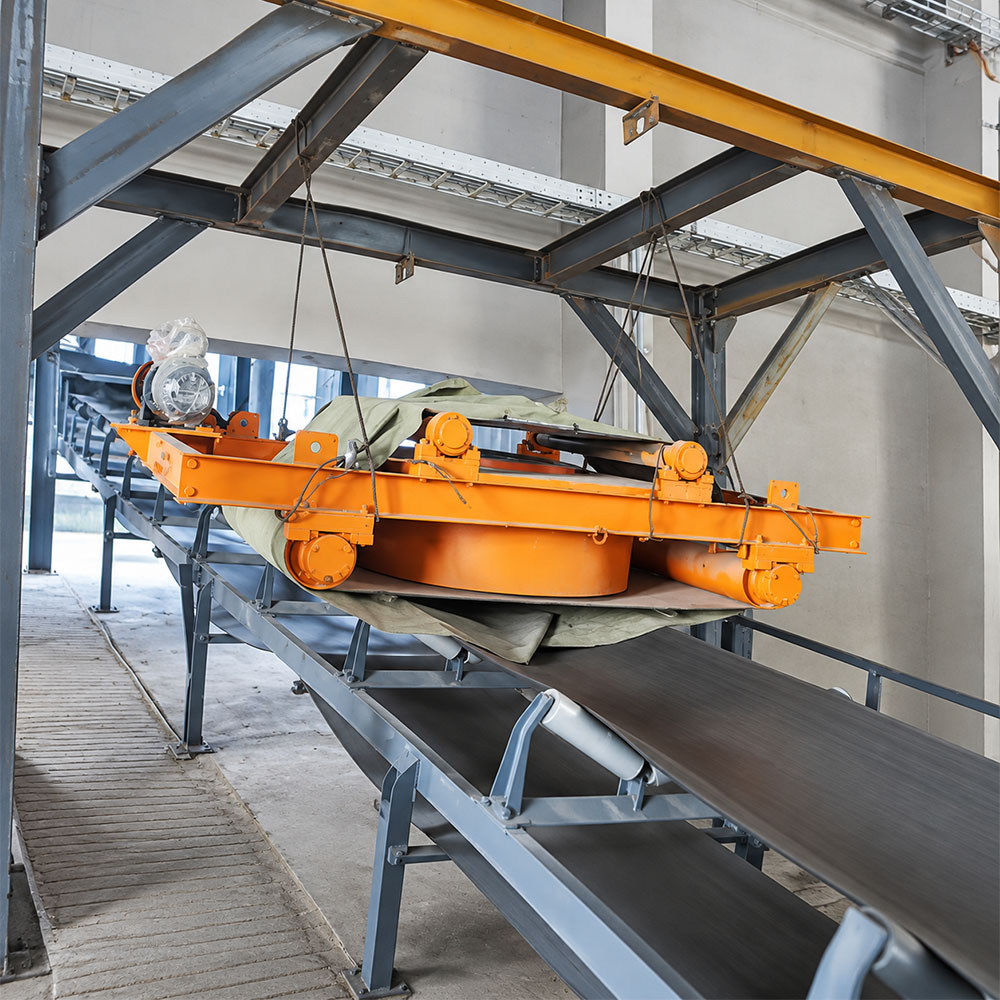

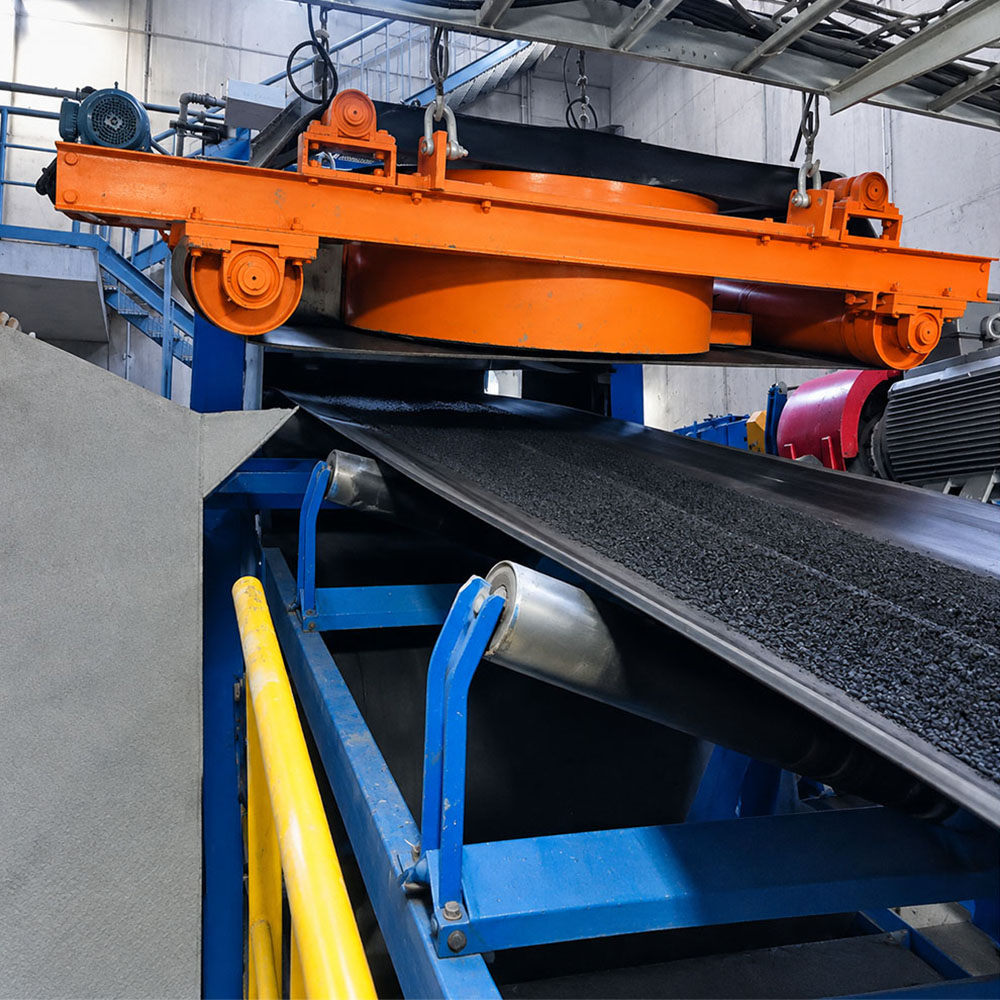

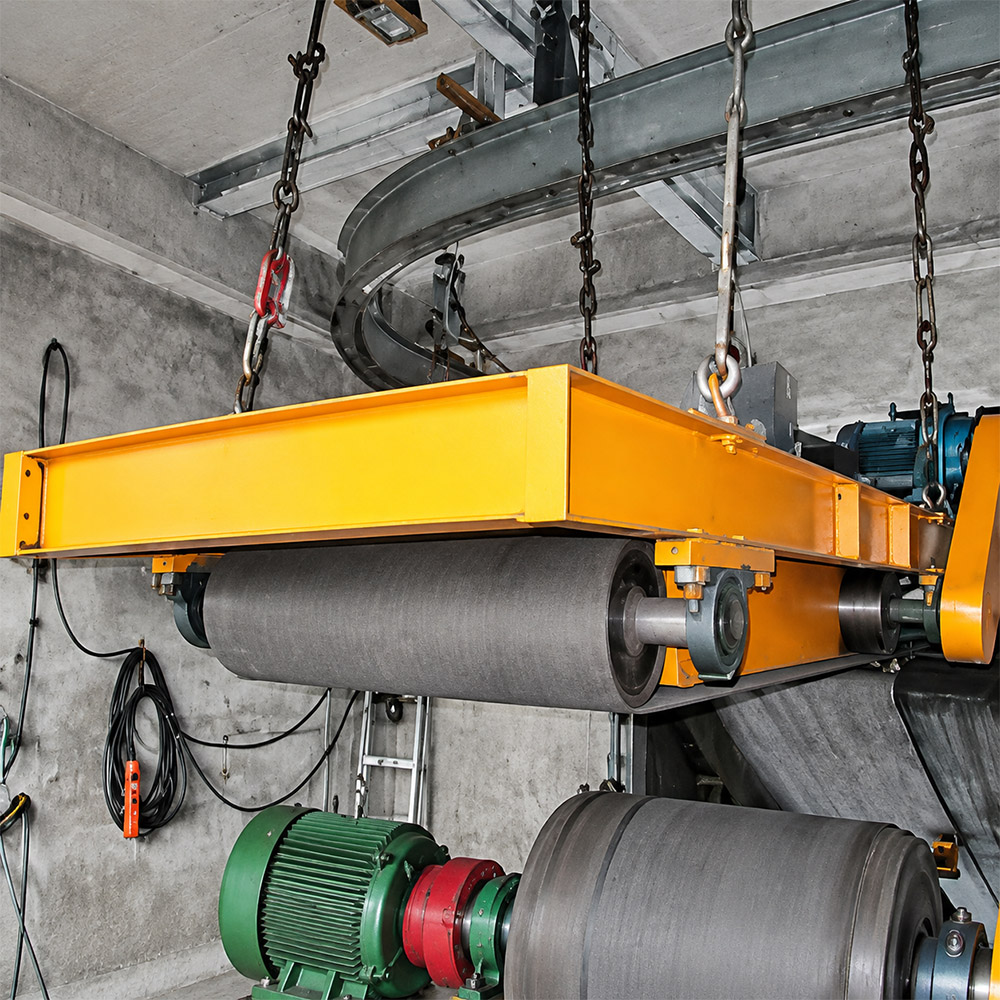

RCYD series permanent magnet self-unloading iron remover is widely used in garbage recycling, home appliance recycling, coal mines, docks, thermal power generation, cement, building materials and other industries.

Product Parameters

RCYD Series Permanent Magnet Self-unloading Iron Remover Parameters

Model Parameter Project	Adapt Bandwidth mm	Rated Hang high h=mm	Material Thickness ≤mm	Magnetic Field Strength ≥mT	Drive Power ≤KW	Adapt Belt Speed ≤m/s	Work system	Weight Kg	Dimensions mm

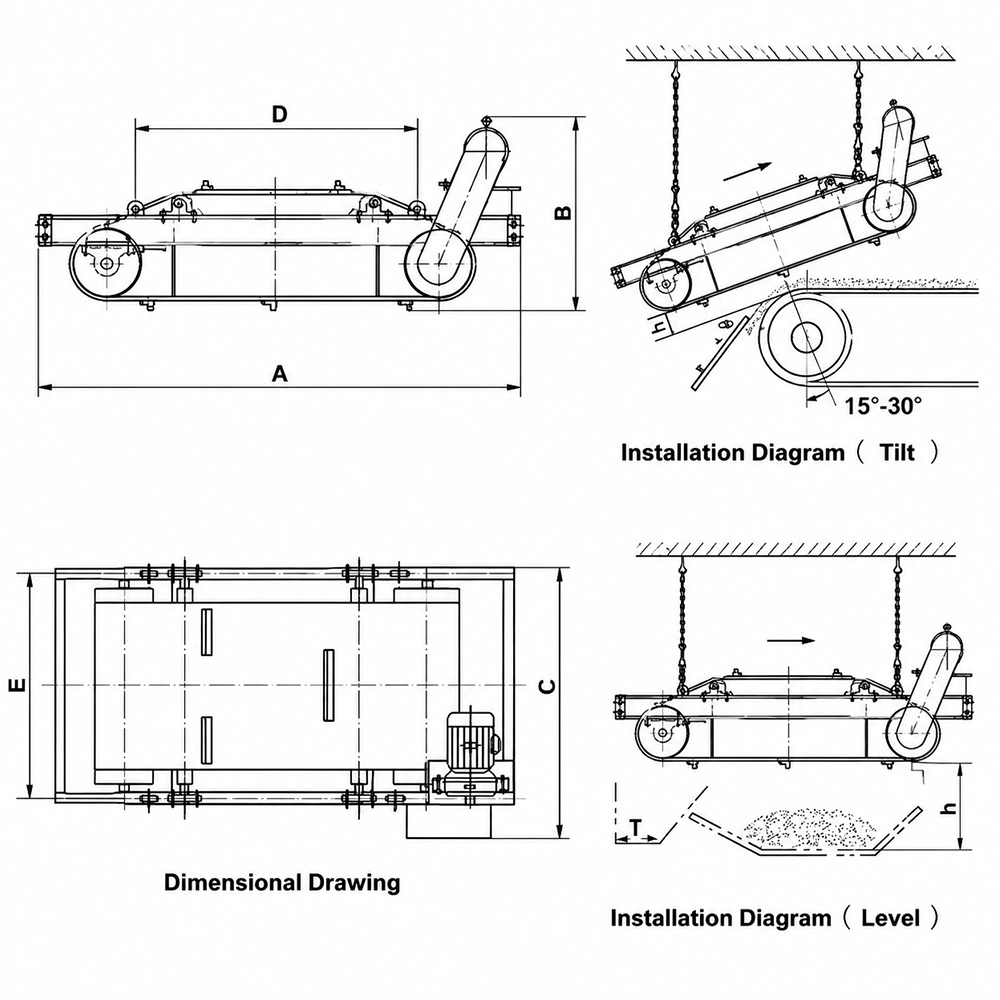

Model Parameter Project	Adapt Bandwidth mm	Rated Hang high h=mm	Material Thickness ≤mm	Magnetic Field Strength ≥mT	Drive Power ≤KW	Adapt Belt Speed ≤m/s	Work system	Weight Kg	A	B	C	D	E
RCYD(C)-5	500	150	80	60	1.5	4.5	continuous	750	1900	735	935	753	950
RCYD(C)-6	600	175	120	60	1.5			920	2050	780	1030	753	1100
RCYD(C)-6.5	650	200	150	70	2.2			1200	2165	780	1080	888	1200
RCYD(C)-8	800	250	200	70	2.2			1400	2350	786	1280	1088	1300
RCYD(C)-10	1000	300	250	70	3.0			2120	2660	920	1550	1335	1400
RCYD(C)-12	1200	350	300	70	4.0			3350	2900	970	1720	1515	1550
RCYD(C)-14	1400	400	350	70	4.0			4450	3225	1050	1980	1755	1800
RCYD(C)-16	1600	450	400	70	5.5			6200	3420	1180	2210	1850	1950
RCYD(C)-18	1800	500	450	72	7.5			8100	3580	1210	2450	2130	2200
RCYD(C)-20	2000	550	500	72	11			9700	3800	1300	2700	2410	2400
