Sawtooth Wave Jig
The Sawtooth Wave Jig is a gravity separation equipment that utilizes the difference in settling velocities of minerals in a vertically alternating water flow to achieve the separation of light and heavy minerals.
-
Sawtooth Wave Jig
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Sawtooth Wave Jig Introduction
The Sawtooth Wave Jig is a gravity separation equipment that utilizes the difference in settling velocities of minerals in a vertically alternating water flow to achieve the separation of light and heavy minerals.
It is mainly used for the beneficiation of various minerals, including tungsten, tin, gold, iron, manganese, titanium, antimony, chromium, sulfur, and other minerals. It can also be used for the recovery of ferroalloy particles from ferroalloy slag, chromium-containing slag, and stainless steel slag, as well as for metal recovery from mine tailings and tailings processing.
Product Parameters
Sawtooth Wave Jig Parameters
Model | Jigging Area (m²) | Feed Size (mm) | Water Consumption (m³/t) | Water Pressure (MPa) | Capacity (t/h) | Power (kW) | Overall Dimensions (mm) | Weight (kg) |
JT0.57-1 | 0.57 | <6 | 1–2 | ≥0.05 | 1–3 | 1.5 | 1550×780×1530 | 610 |
JT1-1 | 1.04 | <10 | 2–3 | ≥0.05 | 2–4 | 2.2 | 2270×1110×1890 | 900 |
JT2-2 | 2.28 | <10 | 2–4 | ≥0.05 | 4–8 | 3 | 3225×1550×2050 | 1,640 |
JT3-1 | 3.3 | <10 | 3–6 | ≥0.05 | 6–10 | 5.5 | 2745×2000×3030 | 3,260 |
JT4-2 | 4.33 | <25 | 4–8 | ≥0.05 | 10–15 | 7.5 | 4240×1990×2750 | 4,200 |
JT4-2A | 4.33 | <25 | 4–8 | ≥0.05 | 10–15 | 4×2 | 4240×1990×2750 | 4,200 |
JT5-2 | 4.85 | <10 | 3–6 | ≥0.05 | 12–20 | 7.5 | 3600×2000×2600 | 4,500 |
Product Photos

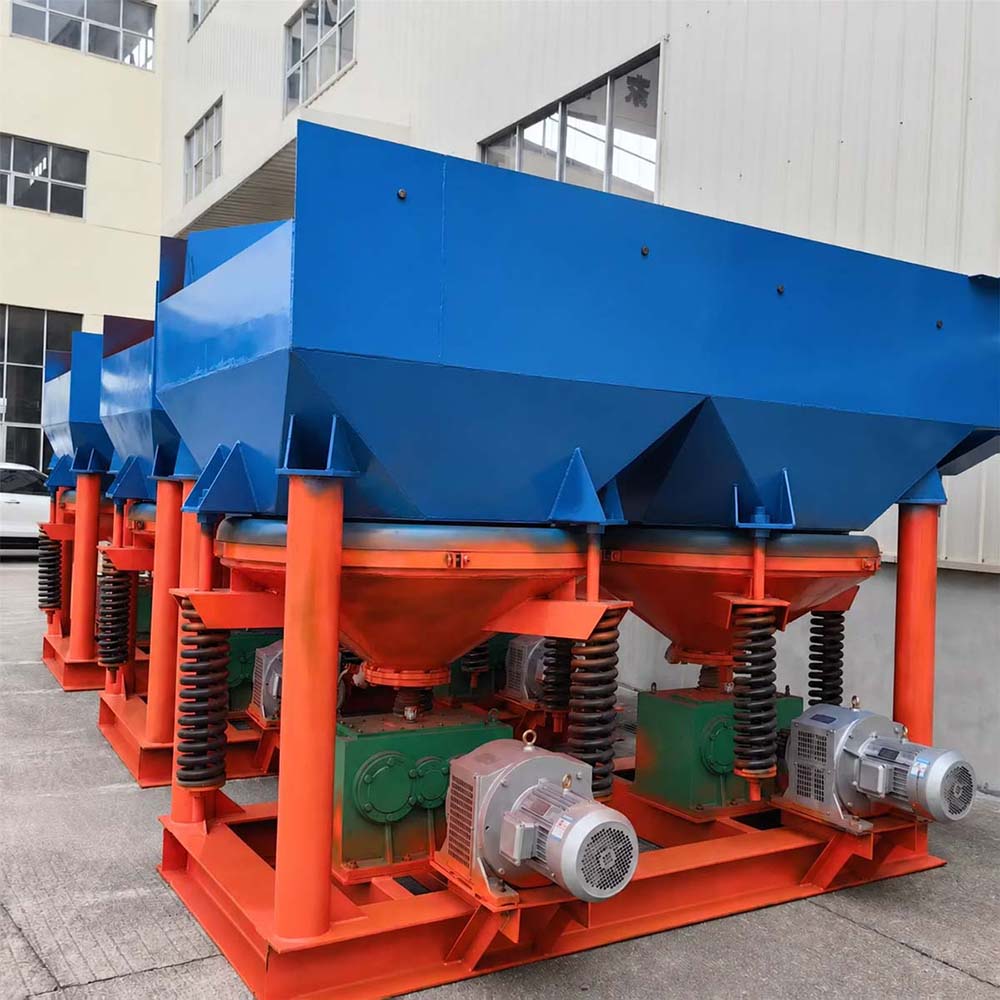

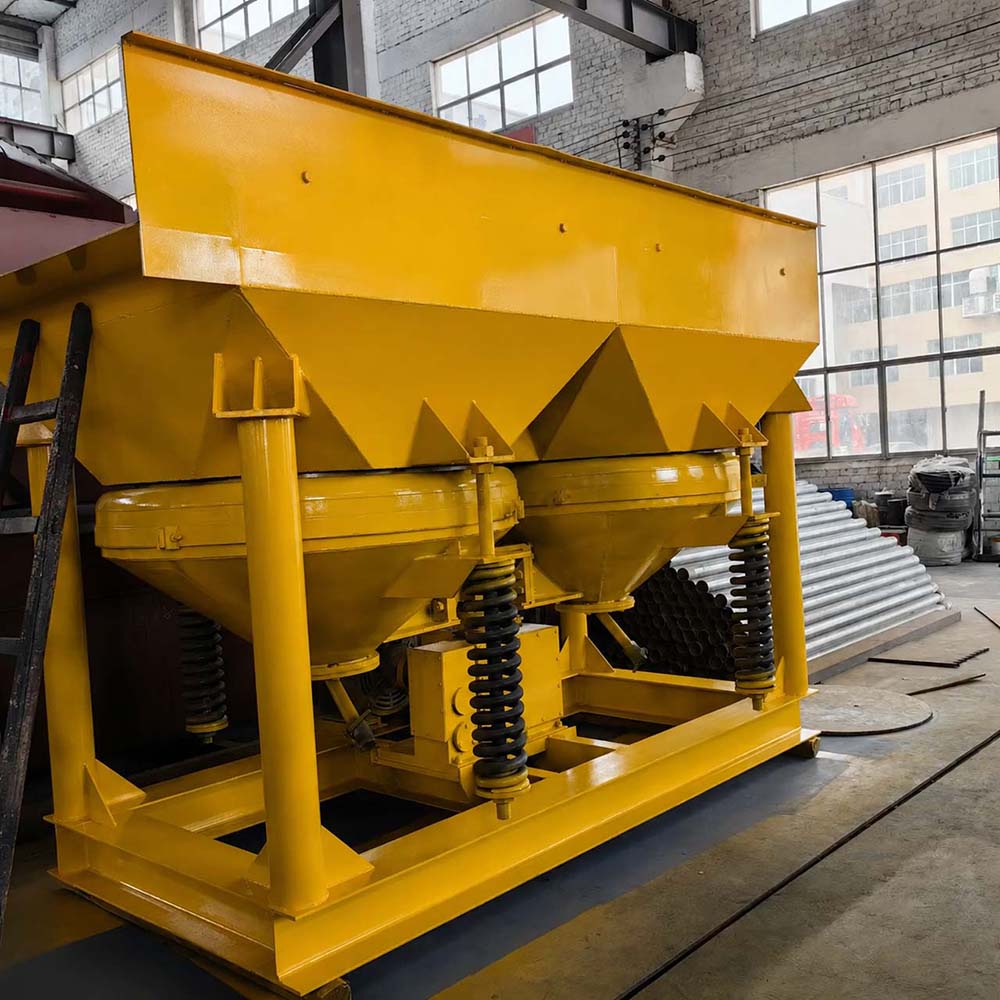

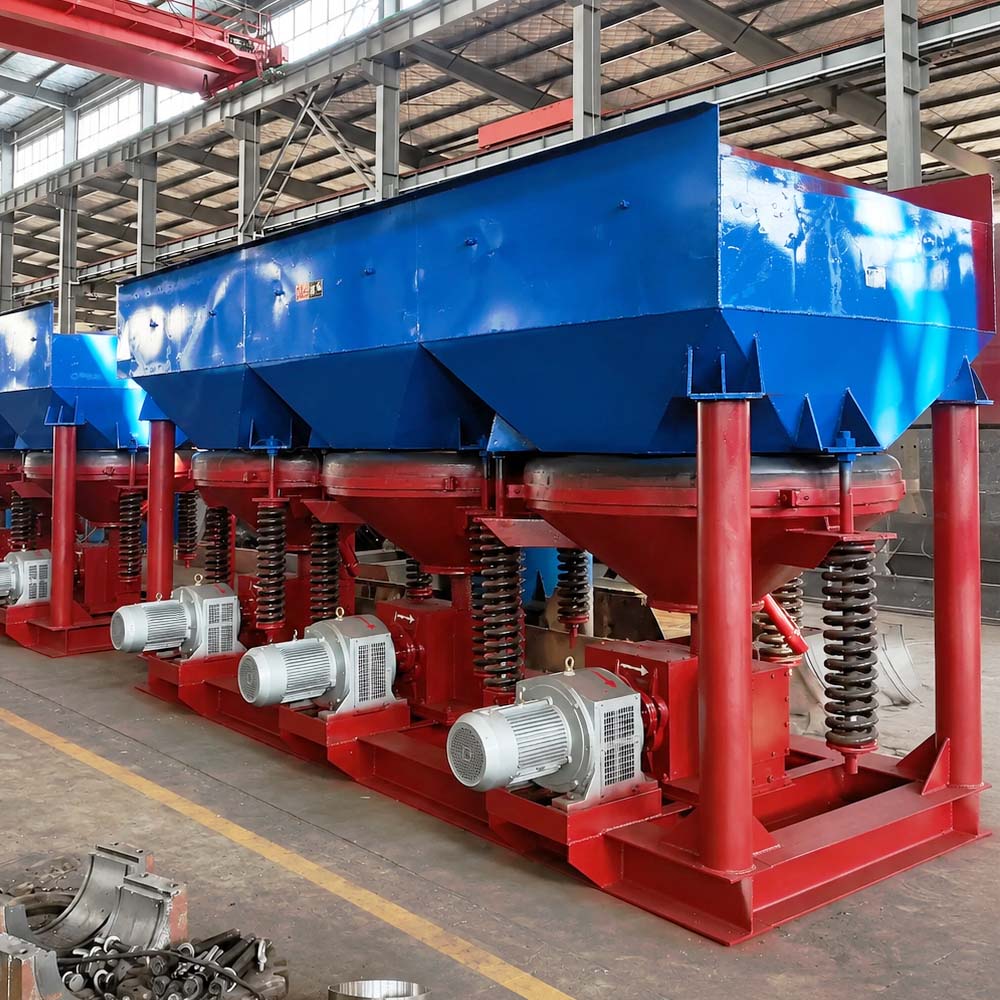

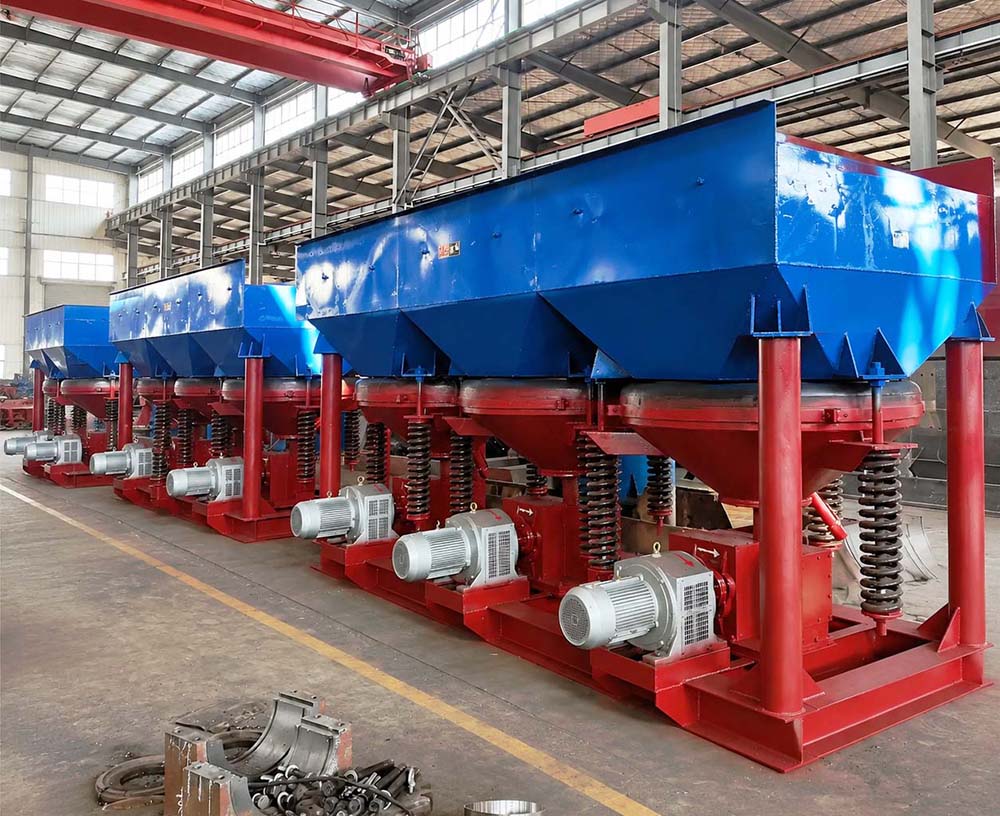

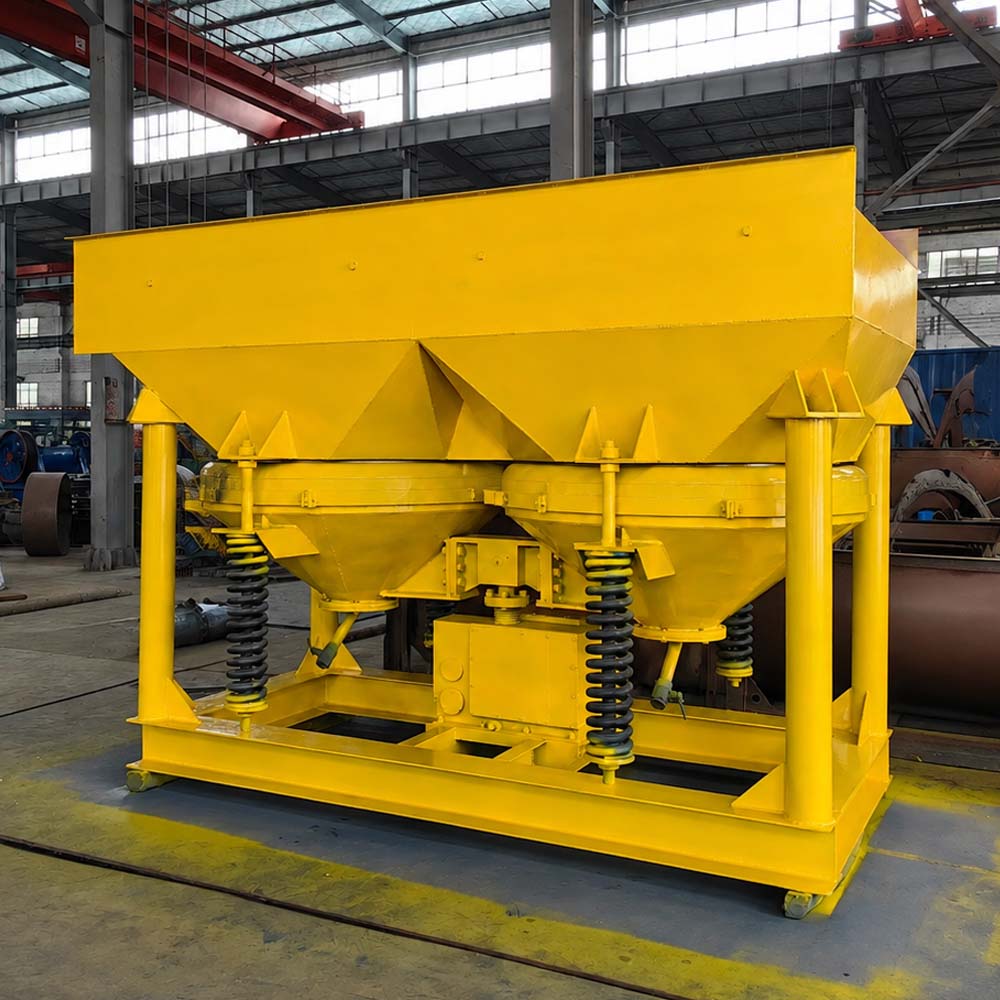

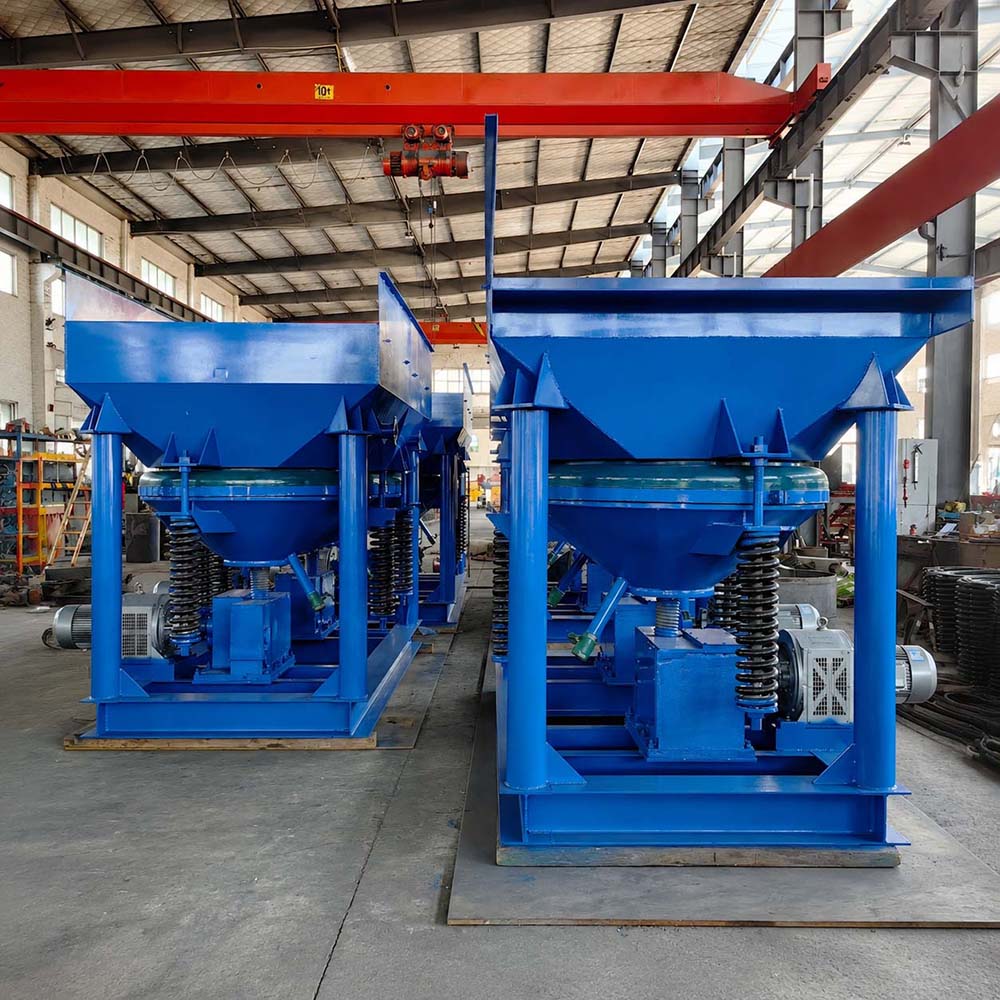

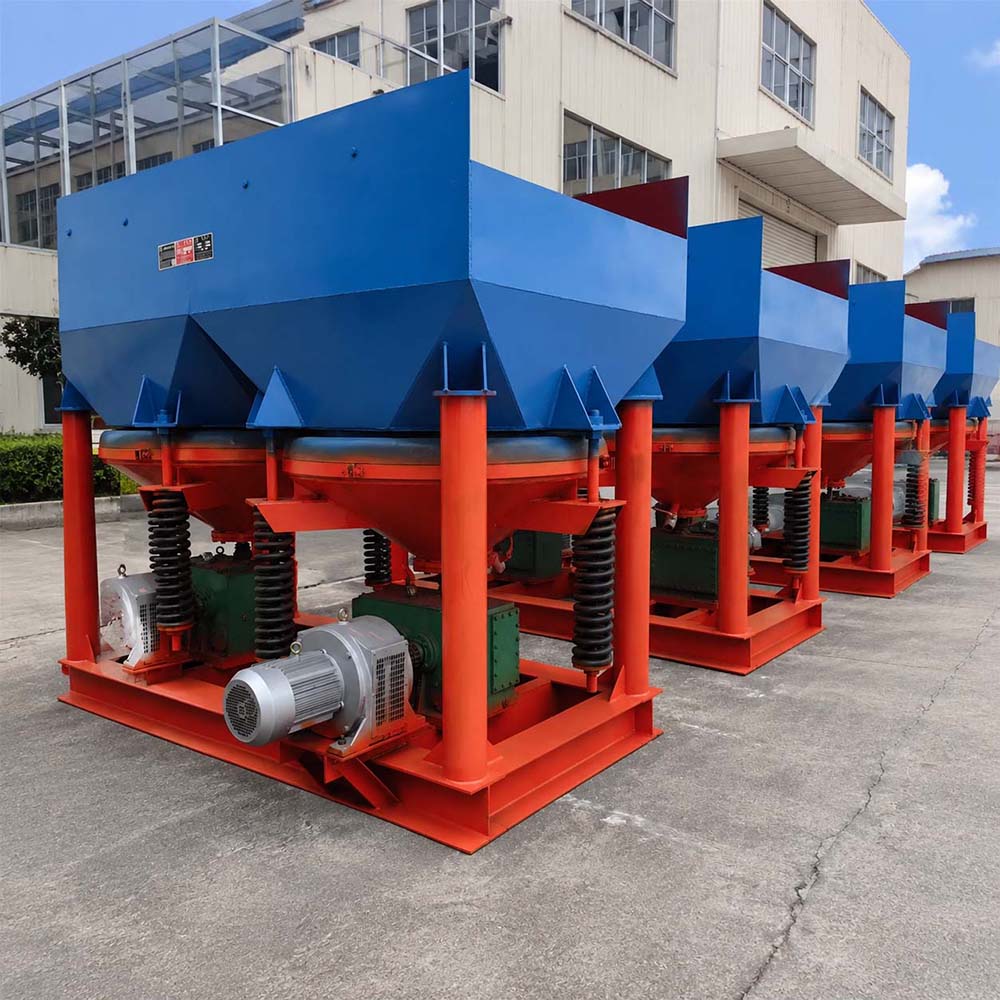

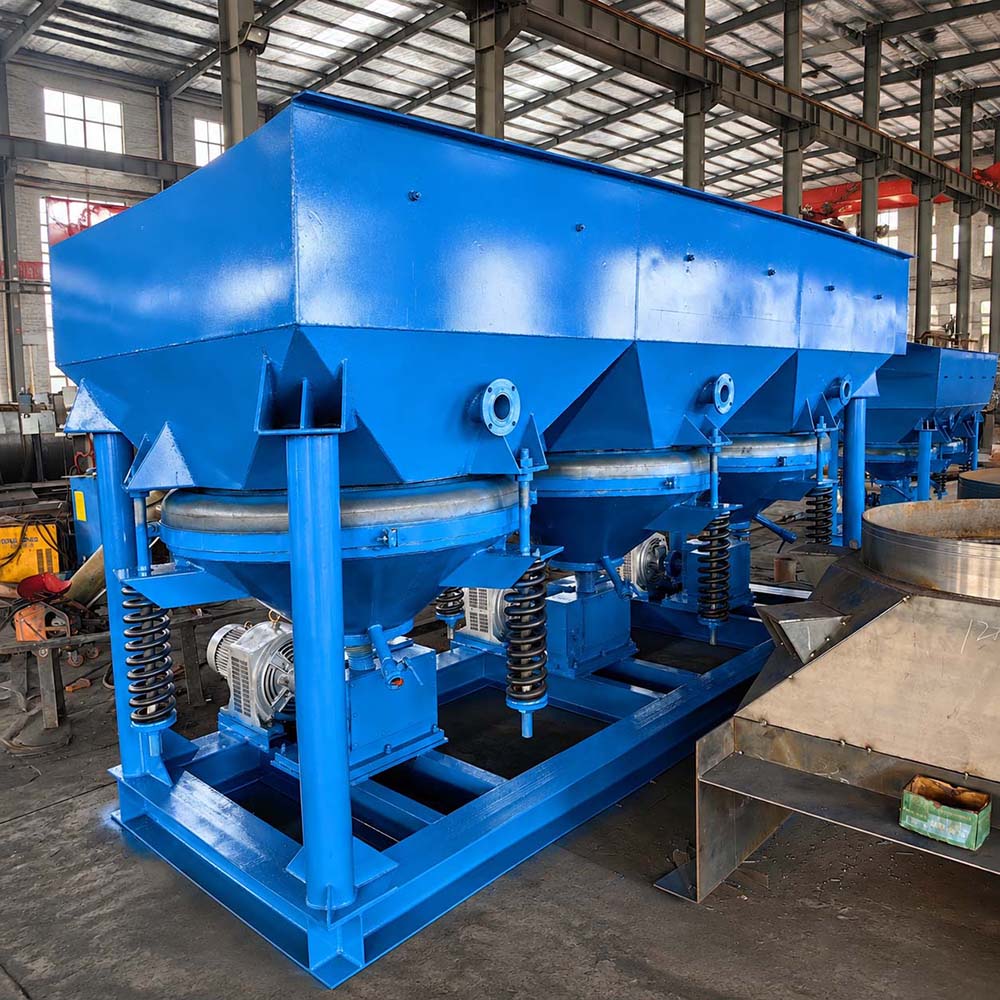

Sawtooth Wave Jig Photos
