TD75 Belt Conveyor
China Coal Group
| Quantity: | |
|---|---|
Product Description
TD75 Belt Conveyor Belt Conveying Machine Introduction
TD75 Belt Conveyor Machine is due to large amount transportation, simple structure, easy maintenance, low cost, strong commonality advantages and widely used in metallurgy, coal, transportation, hydropower and other departments to transport bulk materials or pieces of material. Based on the transmission process requirements, it can single conveying, and also be more sets and with other conveyor formed level or tilted conveying system.
Product Parameters
TD75 Belt Conveyor Belt Conveying Machine Parameters
| Belt Conveyor Technical Parameter Table | ||||
| Belt Width (mm) | Belt Length (m) | Power (kw) | Conveyor speed (m/s) | Throughput (t/h) |
| 500 | ≤12 | 3 | 1.3-1.6 | 45-100 |
| 12-20 | 4-5.5 | |||
| 20-30 | 5.5-7.5 | |||
| 650 | ≤12 | 4 | 1.3-1.6 | 70-120 |
| 12-20 | 5.5 | |||
| 20-30 | 7.5-11 | |||
| 800 | ≤6 | 4 | 1.3-1.6 | 120-180 |
| 6-15 | 5.5 | |||
| 15-30 | 7.5-15 | |||
| 1000 | ≤10 | 5.5 | 1.3-2.0 | 160-250 |
| 10-20 | 7.5-11 | |||
| 20-40 | 11-12 | |||
| 1200 | ≤10 | 7.5 | 1.3-2.0 | 200-400 |
| 10-20 | 11 | |||
| 20-40 | 15-30 | |||
Product Photos

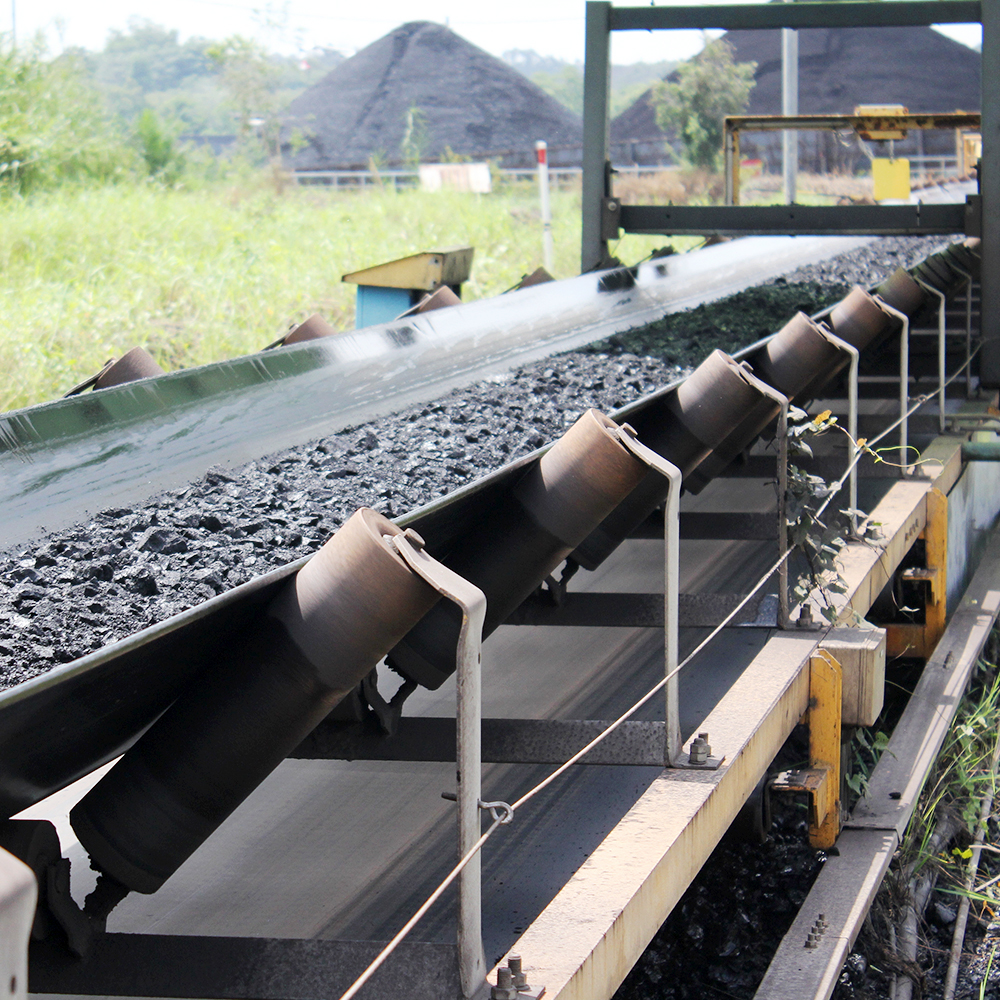

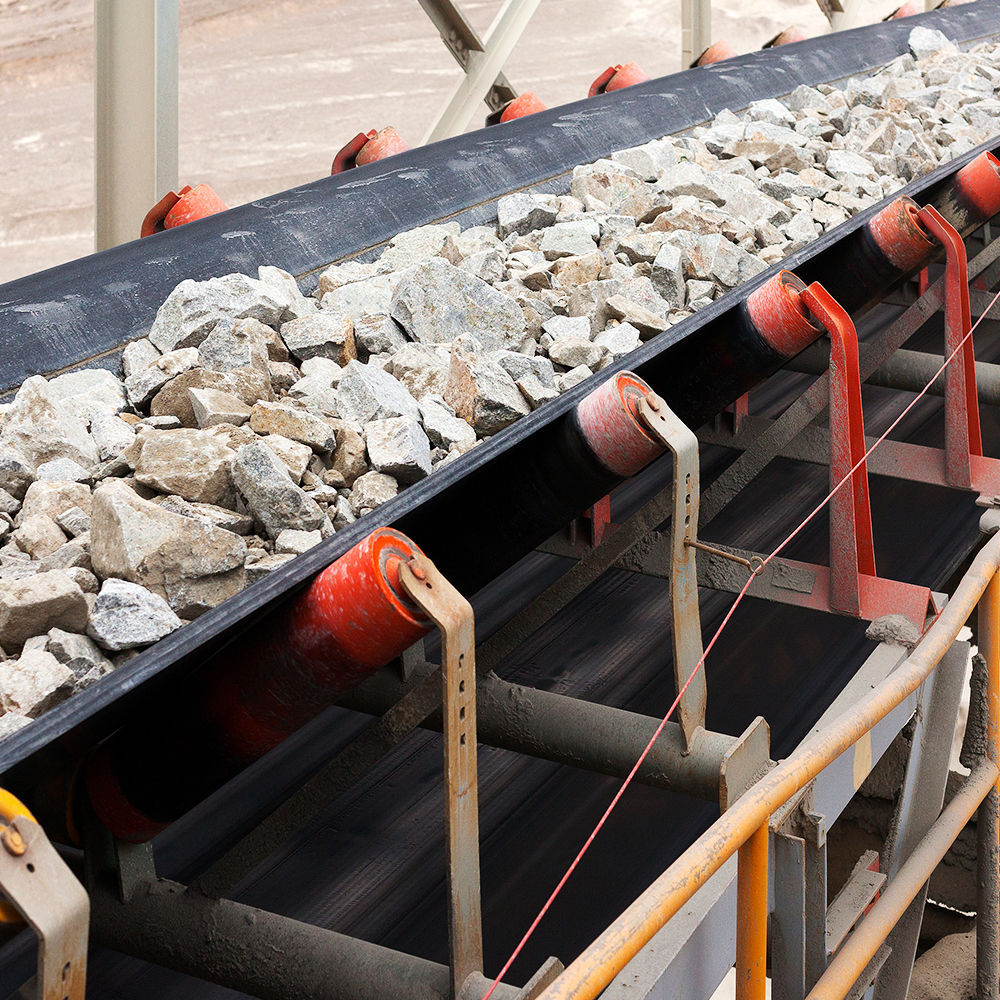

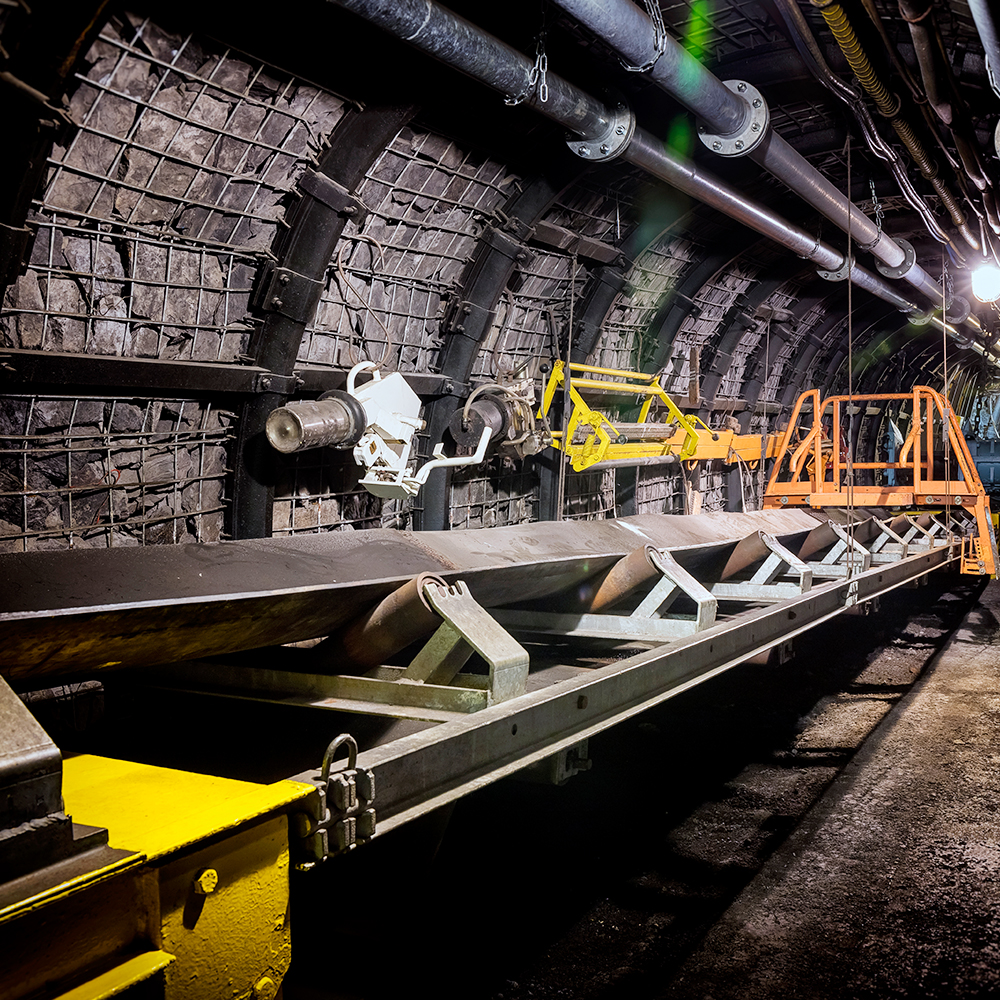

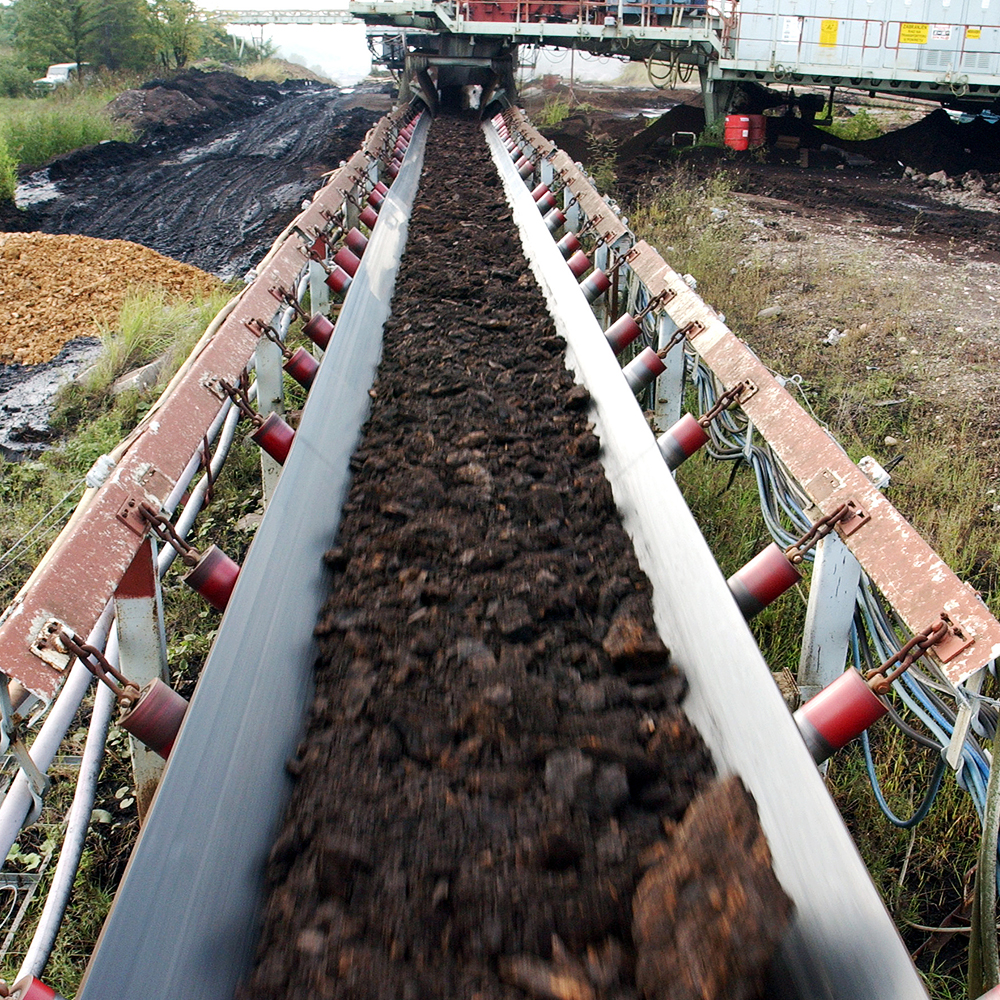

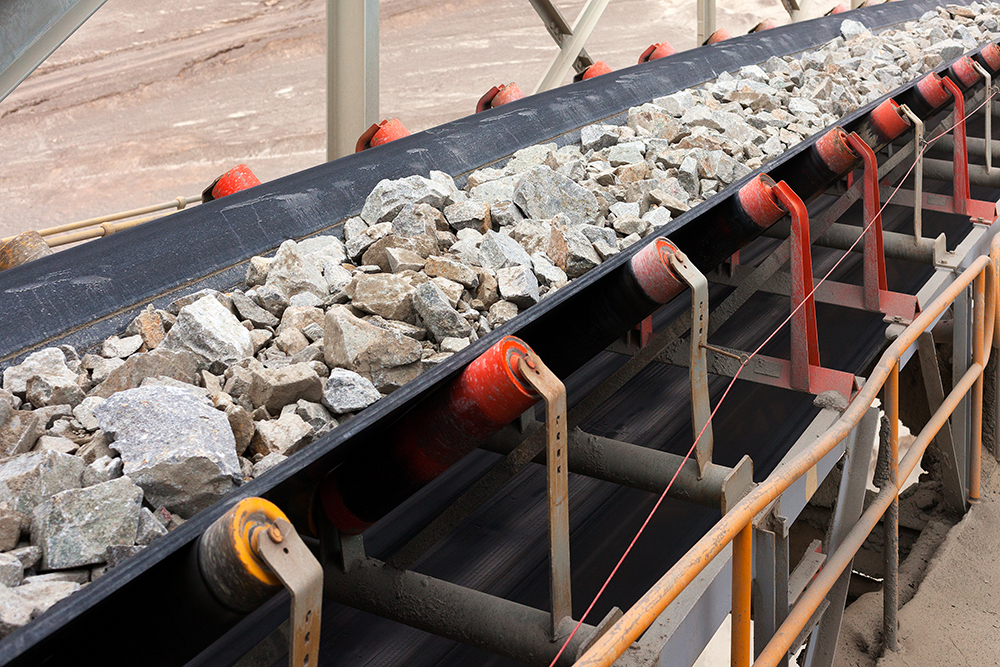

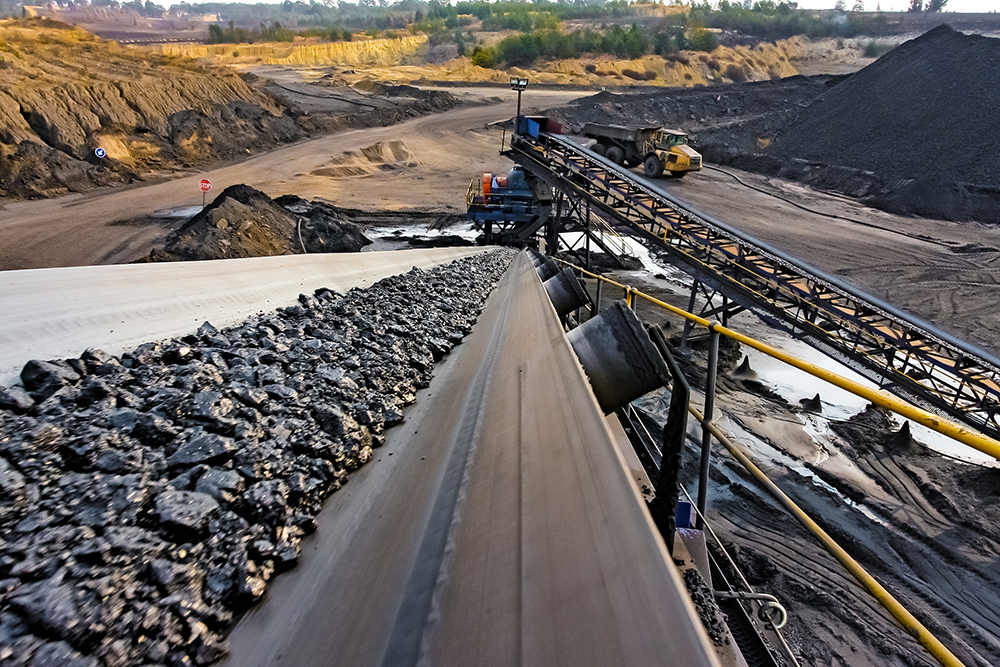

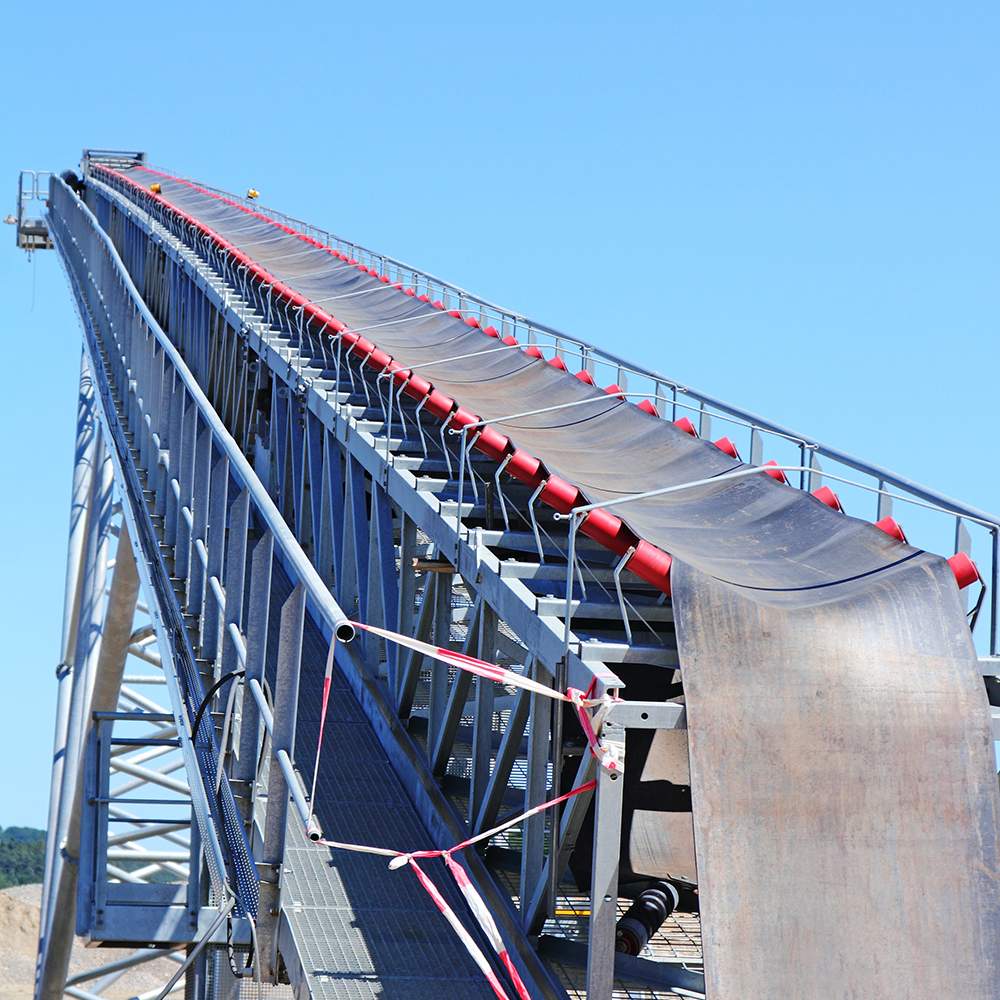

TD75 Belt Conveyor Belt Conveying Machine Photos
