ZM-20 Transport Mine Truck

ABOUT US

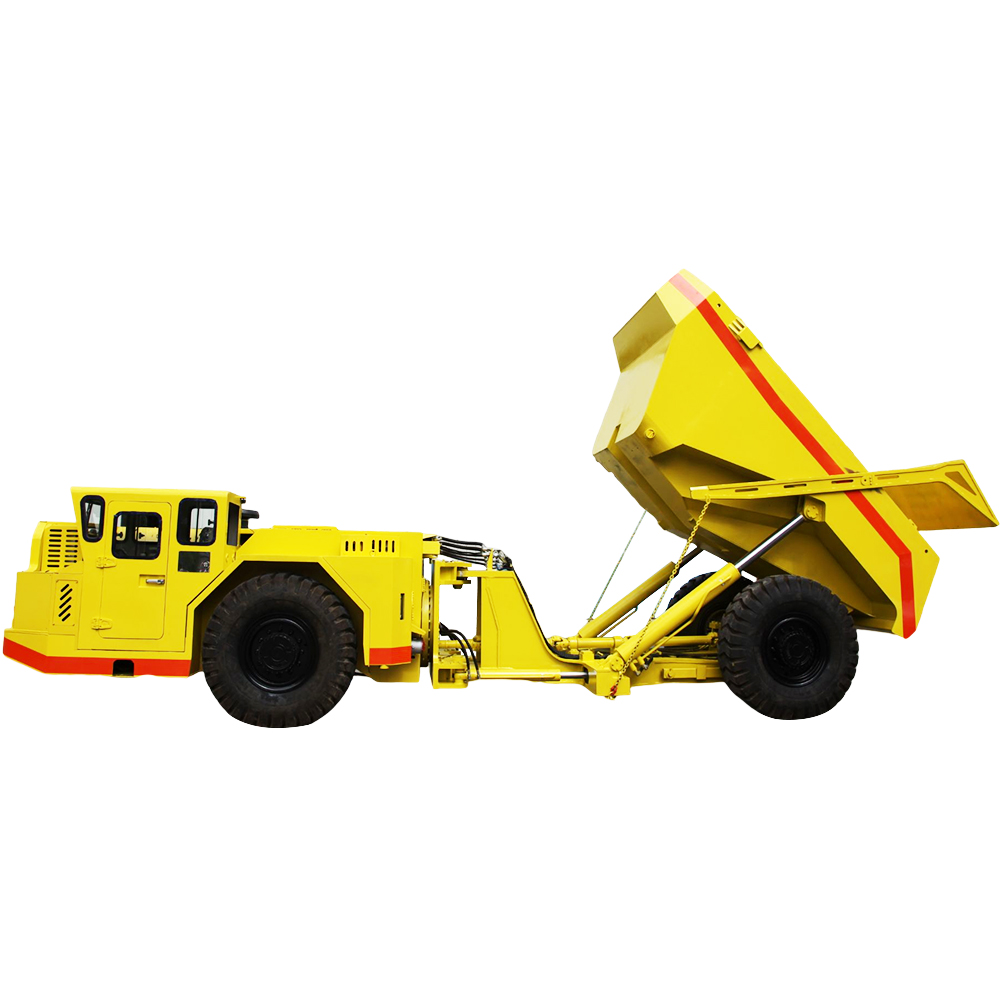

ZM-20 is a special equipment specially designed and manufactured for underground non-coal mines to transport loose materials after blasting; It can also be used in railway, highway, water conservancy and other tunnel projects, especially suitable for poor working conditions, narrow, low and muddy working surfaces.

  • Wide Range Of Applications

  • High Working Efficiency Energy Saving

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

20右

ZM-20 is a special equipment specially designed and manufactured for underground non-coal mines to transport loose materials after blasting; It can also be used in railway, highway, water conservancy and other tunnel projects, especially suitable for poor working conditions, narrow, low and muddy working surfaces.



20左

03

● The power system adopts today's advanced engine and is equipped with exhaust muffler purifier;


● The transmission system adopts hydraulic torque converter and power shift gearbox, which is easy to operate and stable;


● The working braking system adopts wet multi-disc braking, which increases the safety factor and is safe and reliable when working in harsh environment, high water content and muddy tunnels;


● Make use of ergonomics to make the operation interface and operation mode more convenient for underground and tunnel operation;



● It can simplify the roadway layout and facilitate the formation of roadway at one time;



● Flexible and applicable. Self-powered, trackless, and without track laying;



● The slewing bearing is used to connect the swing frame to swing to reduce the failure rate;




● It is light in weight, requires less transportation units, saves labor and improves productivity.



04

01


Safety warning


● When entering the well, the machine operator must wear a helmet and carry a self-rescue device and miner's lamp with him;


● The machine must be regularly maintained and regularly inspected, and hidden dangers found should be dealt with in time;


● It is forbidden to carry out maintenance when the machine is running;



● When the machine is under maintenance, the main power switch must be cut off and the words "under maintenance, no starting" must be hung.






Product Parameters

20右

1. Main configuration of the whole machine

(1) Engine

model

Volvo TAD853VE

WD12G310E221

Rated power

235kW

226kW

Rated speed

2200r/min

2200r/min

manufacturer

Sweden Volvo

Weichai Power

(2) Hydraulic torque converter

model

C5000

type

Single-stage three-element, with hydraulic pump drive

manufacturer

Imported from the United States

(3) Power transmission (Dana)

model

36000

type

4 forward gears and 4 reverse gears complete power shift

manufacturer

Imported from the United States

(4) Drive axle

model

19D

D81

PR105

type

Multi-disc wet brake (spring brake, hydraulic release)

manufacturer

Imported from the United States

Imported from Germany

Huafeng Customization

(5) Parking brake

model

ZDQ-250

type

Caliper disc brake

manufacturer

Huafeng Customization


2. Main technical parameters of the complete machine

1

Car volume (stacking) (m3)

10.5

2

Rated load capacity (t)

20

3

Maximum traction force (kN)

≥200

4

Climbing ability (°)

≥14(25%)

5

Minimum ground clearance (mm)

≥310

6

Minimum turning radius (mm)

R (outside)

≤8190



R (inside)

≤5110

7

Driving speed (km/h)

Gear I

5.8±0.5



Gear II

9.5±0.5



Gear III

21.0±2.0

8

Overall dimension of the whole vehicle (mm)

long

9000±100



Width (excluding rearview mirror)

2228±50



high

2460±50

9

Wheelbase (mm)

5058

10

Vehicle weight (t)

20.1

11

Tire type

16.00-25

12

Fuel tank volume (L)

310

13

Volume of hydraulic oil tank (L)

200
