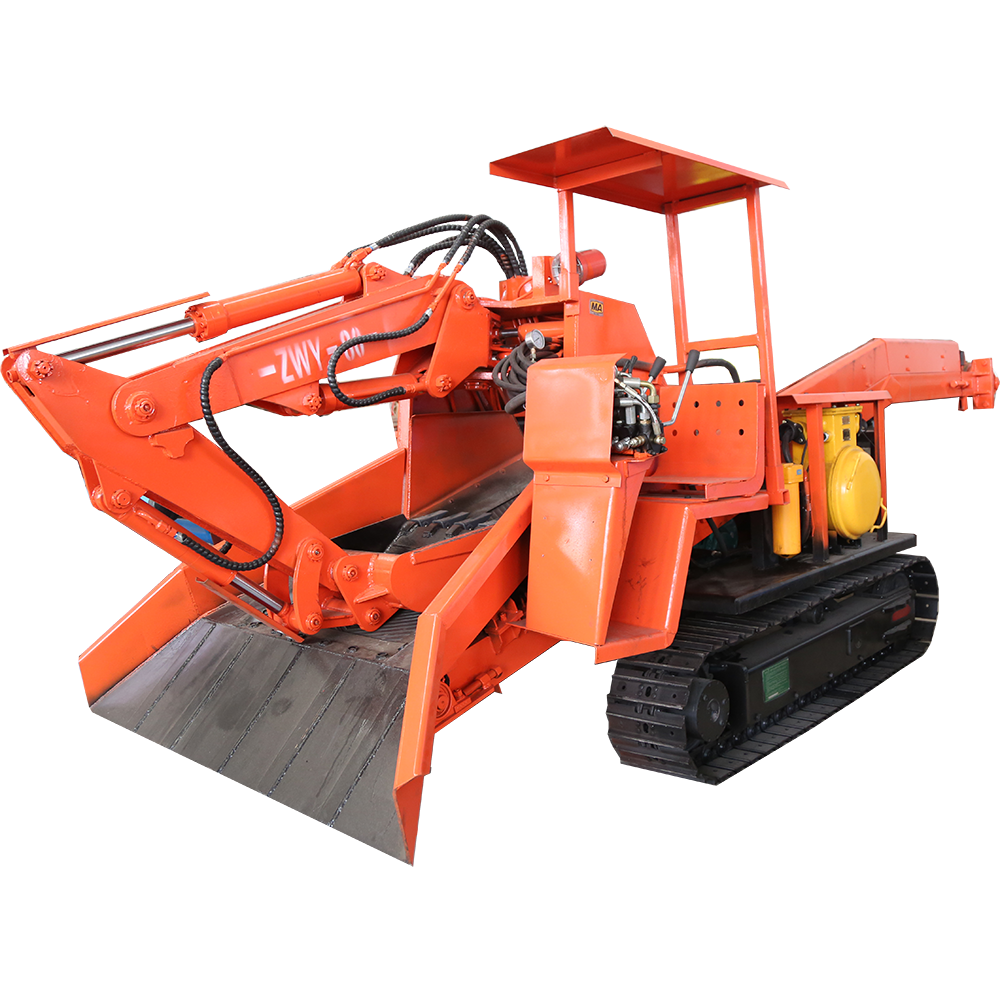

ZWY-180 Tunnel Crawler Mucking Loader

ABOUT US
ZWY-180 Tunnel Crawler Mucking Loader is also is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
Using electric hydraulic control system, contain five functions are hydraulic walking, mining acquisition , transportation, loading and bottom clearing. Our mucking loader has dualdrive device , electrical installation and diesel Installation. When it works in the mine , please use electric power, for the electric power is more environmental and safe. When it works out of the mine, Hydraulic oil tank can storage oil for a long continuous work.
  • With Ce Certificate

  • Fully Hydraulic System

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description


ZWY-180 左



Crawler Mucking Rock Loader  Mucking loader is also is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
Using electric hydraulic control system, contain five functions are hydraulic walking, mining acquisition , transportation, loading and bottom clearing. Our mucking loader has dualdrive device , electrical installation and diesel Installation. When it works in the mine , please use electric power, for the electric power is more environmental and safe. When it works out of the mine, Hydraulic oil tank can storage oil for a long continuous work.




ZWY-180 右

8K8A0278

ZWY-80 crawler rockfill machine, also known as excavation loader, integrates multiple functions such as excavation, transportation, loading and operation. Due to its high working efficiency, strong adaptability to space, and low air pollution in the tunnel, ZWY-80 crawler rockfill machine has become a very important mechanical equipment in tunnel construction.

The electro-hydraulic control system is adopted, including five functions of hydraulic walking, mining collection, transportation, loading and bottom cleaning. Our muck loaders have dual drives, electrical units and diesel units. When it works in the mine, please use electricity, because electricity is more environmentally friendly and safe. When it works outside the mine, the hydraulic oil tank can store oil for long-term continuous operation.

The slag raking machine has changed the status of low speed, high safety risk and high cost that the original construction is semi mechanized, intermittent slag discharge and shipment and requires a lot of manual cooperation.

The slag raking machine is applicable to the construction machinery of tunnel excavation, mining engineering, water conservancy engineering and other projects, small section headrace tunnel, and mining slag (ore) discharging machinery. The machine is mainly used for the collection, transportation and loading of gravel and soil in some non explosive dangerous mines such as phosphorus ore and metal non-metallic ore with narrow production and operation space and small production scale.

It is mainly used for the collection and loading of crushed stone materials in various mines such as coal mine, phosphate mine, iron mine, copper mine, gold mine, silver mine, lead and zinc mine, railway, highway, water conservancy, national defense and other tunnel projects, as well as the loading of open air bulk materials. It is a production device that combines the manipulator with the conveyor and integrates the functions of slag raking and truck loading. It adopts an electric full hydraulic control system and is characterized by safety, environmental protection, low energy consumption and high efficiency.

Slag raking machine is an indispensable advanced mining equipment for mining enterprises, which replaces manual operation. It is a substitute product for manual and other machinery to load all kinds of blasted slag and stone onto transport vehicles, filling the gap of no mechanical operation in a narrow space.


履带式扒渣机 (2)

履带式扒渣机 (15)

The slag raking machine integrates raking, digging, raking, loading, transporting, unloading and walking, and has six functions of walking, digging, collecting, transporting, loading, and clearing the site, with continuous and efficient production. It is to ensure high yield, high efficiency, low safety risk and low cost in the construction of narrow and small sites; Enhance market competitiveness; Improve the production schedule and quickly occupy the market; Achieve visible results such as overfulfilling the task schedule in advance.

The slag raking machine transports 80 cubic meters, 100 cubic meters, 120 cubic meters, 150 cubic meters, 180 cubic meters, 200 cubic meters, 220 cubic meters, 260 cubic meters, 312 cubic meters, 330 cubic meters of ore and soil materials per hour, and other ordinary and large slope types; Gear pump and high-pressure pump; Electric and oil electric; Explosion proof; Tyre type, track type and crawler type.

Product Parameters

ZWY-180 左



Model

ZWY-60

ZWY-80

ZWY-120

ZWY-180

Excavating Width(mm):

3870

4800

4200

6500

Uninstall Length(mm):

1530

1850

1600

2800

Excavating Height(mm):

2300

2800

1800-2700

4400

Excavating Depth(mm):

450

500

450

800

Unload Height(mm):

1400(Changeable)

1700(Changeable)

1100(Changeable)

2693(Changeable)

Minimum Loading Height(mm):

1350(Changeable)

1350(Changeable)

1200-1600(Changeable)

1700(Changeable)

Unload Distance(mm):

1600(Changeable)

1700(Changeable)

1600(Changeable)

3500(Changeable)

Maximum Rotation Angle(°):

±50

±50

±50

±50

Weight(T):

8.5

8.2

5.8

18.6

Machine Dimension:

5000x1490x1650

6100x1700x1800

5600x1650x1700

13088x2350x2600

Loading Capacity(m³/hour):

60

80

60

180

Min Turning Radius(mm):

4000

5500

4600

12000

Climbing Ability(°):

≤20

≤25

≤10

≤25

Travelling Speed(m/min):

2-4.5

2-4.5

2-4.5

0.54

Motor Power(kw):

22

30

18.5/22

55

Max. Material passing Size(LxWxH) (mm):

800x550x500

650x700x650

810x580x420

800x780x800

Ground Clearance(mm):

200

230(Changable)

200

380

Applied Working Section(W*H) (m):

≥2x2

≥2.2x2.2

≥2x2

≥3.8x3.8

Nominal Working Pressure(Mpa):

20

25

20

32

Conveying Mode:

ScraperLeather Belt

Scraper/Leather Belt

Scraper/Leather Belt

Scraper/Leather Belt
